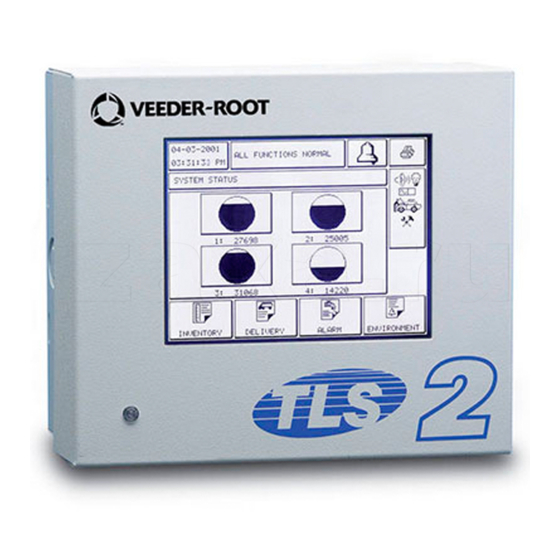

Veeder-Root TLS2 Serial Interface Manual
  1. Manuals
  2. Brands
  3. Veeder-Root Manuals
  4. Measuring Instruments
  5. TLS2
  6. Serial interface manual

Veeder-Root TLS2 Serial Interface Manual

Ust monitoring systems
Hide thumbs Also See for TLS2:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual , Manual
VEEDER - ROOT
SERIAL INTERFACE MANUAL
for
TLS2
UST Monitoring Systems
through Software Version 7
Manual Number 577013-767
Revision H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLS2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Veeder-Root TLS2

Summary of Contents for Veeder-Root TLS2

  • Page 1 VEEDER - ROOT SERIAL INTERFACE MANUAL TLS2 UST Monitoring Systems through Software Version 7 Manual Number 577013-767 Revision H...
  • Page 2 NOTICE Veeder-Root makes no warranty of any kind with regard to this publication, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Veeder-Root shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this publication.

  • Page 3: Table Of Contents

    Serial Interface Manual • TLS2 Monitoring Systems TABLE OF CONTENTS INTRODUCTION ..........................1 HARDWARE CONNECTIONS ......................1 RS-232 ........................... 1 EIA RS-232 INTERFACE ....................2 CHARACTER FORMAT AND BAUD RATE ................... 2 SECURITY CODE SETTINGS ......................2 COMMAND MESSAGE FORMAT ....................3 RESPONSE MESSAGE FORMAT .....................

  • Page 4: Introduction

    Serial Interface Manual • TLS2 Monitoring Systems INTRODUCTION The serial RS-232 interface is used to connect the system to a controlling computer, a display terminal (CRT), or a printing terminal. A modem can be connected directly to the system to provide telephone line access.

  • Page 5: Eia Rs-232 Interface

    Serial Interface Manual • TLS2 Monitoring Systems EIA RS-232 INTERFACE The EIA RS-232 interface is designed to connect to modems for transmission of data over telephone lines. It can be used for direct local attachment of terminals if the cable run is no more than 50 feet. In practice, cable runs longer than 50 feet have performed satisfactorily;...

  • Page 6: Command Message Format

    Serial Interface Manual • TLS2 Monitoring Systems COMMAND MESSAGE FORMAT All command and response messages are configured in a format which includes a surrounding envelope of control characters and a function code and data field message. The control characters are described in this section, while the function codes and data field messages are described in subsequent sections.

  • Page 7: Response Message Format

    Serial Interface Manual • TLS2 Monitoring Systems RESPONSE MESSAGE FORMAT There are two types of response message formats: computer (or packed data format) and display format. Each format uses a different surrounding envelope of control characters. COMPUTER FORMAT The computer format is a stream of data without any formatting characters; i.e., carriage return, line feed, spaces, labels, etc.

  • Page 8: Ascii Floating Point Format

    Serial Interface Manual • TLS2 Monitoring Systems ASCII FLOATING POINT FORMAT 6.3.1 NOTES 6.3.1.1 HHHHHHHH (H = 0-9 or A-F) indicates the 8 "nibble" ASCII-Hexadecimal representation of a 4-Byte Floating Point number. Many data parameters are transmitted in this format.

  • Page 9: Examples

    Serial Interface Manual • TLS2 Monitoring Systems 6.3.2 EXAMPLES 6.3.2.1 3F800000 hex = 0011 1111 1000 0000 0000 0000 0000 0000 bin S = 0 = + (positive) E = 011 1111 1 bin = 7F hex = 127 dec...

  • Page 10: Function Codes And Response Messages

    Serial Interface Manual • TLS2 Monitoring Systems FUNCTION CODES AND RESPONSE MESSAGES The function codes and data fields of the message formats are described in this section. Most response messages can be requested for either a single device (tank, etc.) or all devices. A "TT" in the function code signifies single device number 01 through 16.

  • Page 11: Control Functions

    Serial Interface Manual • TLS2 Monitoring Systems CONTROL FUNCTIONS Function Code: Version 1 Function Type: System Reset Command Format: Display: <SOH>S00100 Computer: <SOH>s00100 Typical Response Message, Display Format: <SOH> S00100 22-05-01 14:51 <ETX> Typical Response Message, Computer Format: <SOH>s00100YYMMDDHHmm&&CCCC<ETX> Notes: YYMMDDHHmm - Current Date and Time &&...
  • Page 12 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Remote Alarm Reset Command Format: Display: <SOH>S00300 Computer: <SOH>s00300 Typical Response Message, Display Format: <SOH> S00300 22-05-01 14:54 <ETX> Typical Response Message, Computer Format: <SOH>s00300YYMMDDHHmm&&CCCC<ETX> Notes: YYMMDDHHmm - Current Date and Time &&...
  • Page 13 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Computer Mode Autodial Hang-up Command Format: Display: <SOH>S01000 Computer: <SOH>s01000 Typical Response Message, Display Format: <SOH> S01000 22-05-01 14:54 <ETX> Typical Response Message, Computer Format: <SOH>s01000YYMMDDHHmm&&CCCC<ETX> Notes:...
  • Page 14 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Start In-Tank Leak Detect Test Command Format: Display: <SOH>S052TT Computer: <SOH>s052TT Typical Response Message, Display Format: <SOH> S05201 22-05-01 14:55 TANK PRODUCT LABEL REGULAR UNLEADED LEAK TEST START TEST BY EXTERN INTERFACE <ETX>...
  • Page 15 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Stop In-Tank Leak Detect Test Command Format: Display: <SOH>S053TT Computer: <SOH>s053TT Typical Response Message, Display Format: <SOH> S05301 22-05-01 14:55 TANK PRODUCT LABEL REGULAR UNLEADED LEAK TEST STOP <ETX>...
  • Page 16 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Setup Password Log In Command Format: Display: <SOH>S09E00PPPPPPPPPPPPPPPP Computer: <SOH>s09E00PPPPPPPPPPPPPPPP Notes: P - Setup Password (6 to 16 ASCII characters [20h-7Eh]) Typical Response Message, Display Format: <SOH>...
  • Page 17 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Setup Password Log Out Command Format: Display: <SOH>S09F00149 Computer: <SOH>s09F00149 Notes: 149 - code must be sent to confirm the command Typical Response Message, Display Format: <SOH>...

  • Page 18: Operational Reports

    Serial Interface Manual • TLS2 Monitoring Systems OPERATIONAL REPORTS 7.2.1 SYSTEM REPORTS Function Code: Version 1 Function Type: System Status Report Command Format: Display: <SOH>I10100 Computer: <SOH>i10100 Notes: This command will report all active OR unacknowledged alarms and warnings up to the limit of 25 alarms in display format,...
  • Page 19 Serial Interface Manual • TLS2 Monitoring Systems Function Code 101 Notes: (Continued) Typical Response Message, Computer Format: <SOH>i10100YYMMDDHHmmAANNTT... AANNTT&&CCCC<ETX> Notes: YYMMDDHHmm - Current Date and Time AA - Alarm/Warning Category: 00 - All Functions Normal 02 - Tank Alarm 14 - Auto-Dial Fax Alarm...
  • Page 20 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: System Identification Report Command Format: Display: <SOH>I10300 Computer: <SOH>i10300 Typical Response Message, Display Format: <SOH> I10300 22-05-08 14:58 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 21 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Priority Alarm History Report Command Format: Display: <SOH>I11100 Computer: <SOH>i11100 Typical Response Message, Display Format: <SOH> I11100 22-05-01 14:55 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 22 Serial Interface Manual • TLS2 Monitoring Systems Function Code 111 Notes: (Continued) Typical Response Message, Computer Format: <SOH>i11100YYMMDDHHmmAAccNNTTSSYYMMDDHHmm... AAccNNTTSSYYMMDDHHmm&&CCCC<ETX> Notes: YYMMDDHHmm - Current Date and Time AA - Alarm/Warning Category: 00 - All Functions Normal 02 - Tank Alarm 14 - Auto-Dial Alarm...
  • Page 23 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Non-Priority Alarm History Report Command Format: Display: <SOH>I11200 Computer: <SOH>i11200 Typical Response Message, Display Format: <SOH> I11200 22-05-01 14:56 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 24 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Active Alarm Report Command Format: Display: <SOH>I11300 Computer: <SOH>i11300 Notes: This command will report ALL active alarms and warnings regardless of their acknowledgement state. If there are...
  • Page 25 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Cleared Alarm Report Command Format: Display: <SOH>I11400 Computer: <SOH>i11400 Typical Response Message, Display Format: <SOH> I11400 22-05-01 14:56 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 26 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Priority Alarm History Report II Command Format: Display: <SOH>I11700 Computer: <SOH>i11700 Typical Response Message, Display Format: <SOH> I11700 22-05-01 14:56 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 27 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Non-Priority Alarm History Report II Command Format: Display: <SOH>I11800 Computer: <SOH>i11800 Typical Response Message, Display Format: <SOH> I11800 22-05-01 14:56 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..

  • Page 28: In-Tank Reports

    Serial Interface Manual • TLS2 Monitoring Systems 7.2.2 IN-TANK REPORTS Function Code: Version 1 Function Type: In-Tank Inventory Report Command Format: Display: <SOH>I201TT Computer: <SOH>i201TT Typical Response Message, Display Format: <SOH> I20101 22-05-01 14:56 STATION HEADER 1..STATION HEADER 2..
  • Page 29 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: In-Tank Delivery Report Command Format: Display: <SOH>I202TT Computer: <SOH>i202TT Typical Response Message, Display Format: <SOH> I20201 22-05-01 14:56 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 30 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: In-Tank Leak Detect Report Command Format: Display: <SOH>I203TT Computer: <SOH>i203TT Typical Response Message, Display Format: <SOH> I20301 22-05-01 14:56 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 31 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: In-Tank Shift Inventory Report Command Format: Display: <SOH>I204TT Computer: <SOH>i204TT Typical Response Message, Display Format: <SOH> I20401 22-05-01 14:56 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 32 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: In-Tank Status Report Command Format: Display: <SOH>I205TT Computer: <SOH>i205TT Typical Response Message, Display Format: <SOH> I20501 22-05-01 14:57 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 33 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: In-Tank Alarm History Report Command Format: Display: <SOH>I206TT Computer: <SOH>i206TT Typical Response Message, Display Format: <SOH> I20601 22-05-01 14:57 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 34 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: In-Tank Leak Test History Report Command Format: Display: <SOH>I207TT Computer: <SOH>i207TT Typical Response Message, Display Format: <SOH> I20701 22-05-01 14:57 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 35 Serial Interface Manual • TLS2 Monitoring Systems Function Code 207 Notes: (Continued) Typical Response Message, Computer Format: <SOH>i207TTYYMMDDHHmmTTNNRRnnttYYMMDDHHmmhhhhhhhhVVVVVVVVpppppppp... TTNNRRnnttYYMMDDHHmmhhhhhhhhVVVVVVVVpppppppp...&&CCCC<ETX> Notes: YYMMDDHHmm - Current Date and Time TT - Tank Number (Decimal, 00 = all) NN - Number of Leak History Reports to Follow (Hex)
  • Page 36 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: In-Tank Leak Test Results Report Command Format: Display: <SOH>I208TT Computer: <SOH>i208TT Typical Response Message, Display Format: <SOH> I20801 22-05-01 14:57 PREVIOUS IN TANK LEAK TEST RESULTS TANK 1...
  • Page 37 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: In-Tank Enhanced Leak Detect Report Command Format: Display: <SOH>I209TT Computer: <SOH>i209TT Typical Response Message, Display Format: <SOH> I20901 22-05-01 14:57 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 38 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: In-Tank Most Recent Delivery Report Command Format: Display: <SOH>I20CTT Computer: <SOH>i20CTT Typical Response Message, Display Format: <SOH> I20C01 22-05-01 14:57 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 39 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: In-Tank Stick Height Report Command Format: Display: <SOH>I20DTT Computer: <SOH>i20DTT Notes: This command will respond only if stick height is enabled. Tank stick height is fuel height (without tilt) + stick offset.
  • Page 40 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: In-Tank Mass/Density Inventory Report Command Format: Display: <SOH>I214TT Computer: <SOH>i214TT Typical Response Message, Display Format: <SOH> I214TT 04-30-09 2:18 PM STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 41 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: In-Tank Mass/Density Delivery Report Command Format: Display: <SOH>I215TT Computer: <SOH>i215TT Typical Response Message, Display Format: <SOH> I215TT 04-30-09 2:46 PM T 1:PRODUCT 1 INCREASE DATE / TIME...
  • Page 42 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Power Outage Delivery Report Command Format: Display: <SOH>I21CTT Computer: <SOH>i21CTT Typical Response Message, Display Format: <SOH> I21CTT 29-07-08 14:58 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 43 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Inventory Snapshot Volume Command Format: Display: <SOH>I21ETTyymmddhhmm Computer: <SOH>i21ETTyymmddhhmm Notes: yymmddhhmm - Request for Inventory records starting with this date to the most recent. If no yymmddhhmm, return the most recent...
  • Page 44 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Manual Shift Inventory Snapshot Report Command Format: Display: <SOH>I21Fssdd Computer: <SOH>i21Fssdd Notes: ss - number 00=all, 01, 02, 03, 04 shift number (Decimal) dd - number Day of Shift...
  • Page 45 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: In-Tank Full Inventory Report Command Format: Display: <SOH>I231TT Computer: <SOH>I231TT Typical Response Message, Display Format: <SOH> I23100 16-06-11 07:35 STATION HEADER 1..STATION HEADER 2..STATION HEADER 3..
  • Page 46 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 6 Function Type: Density Offset History Report Command Format: Display: <SOH>I233TT Computer: <SOH>I233TT Typical Response Message, Display Format: <SOH> I23300 16-06-11 07:35 DENSITY OFFSET HISTORY REPORT T 1:REGULAR UNLEADED DATE / TIME...
  • Page 47 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: In-Tank Mass/Density Inventory Report 2 Command Format: Display: <SOH>I234TT Computer: <SOH>I234TT Typical Response Message, Display Format: <SOH> I234TT 04-30-09 2:18 PM STATION HEADER 1..STATION HEADER 2..
  • Page 48 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: In-Tank Mass/Density Delivery Report 2 Command Format: Display: <SOH>I235TT Computer: <SOH>I235TT Typical Response Message, Display Format: <SOH> I235TT 04-30-09 2:46 PM T 1:PRODUCT 1 INCREASE DATE / TIME...

  • Page 49: I/O Device Reports

    Serial Interface Manual • TLS2 Monitoring Systems 7.2.3 I/O DEVICE REPORTS Function Code: Version 1 Function Type: Relay Status Report Command Format: Display: <SOH>I406RR Computer: <SOH>i406RR Typical Response Message, Display Format: <SOH> I40600 22-05-01 14:57 STATION HEADER 1..STATION HEADER 2..

  • Page 50: Setup Functions & Reports

    Serial Interface Manual • TLS2 Monitoring Systems SETUP FUNCTIONS & REPORTS 7.3.1 SYSTEM SETUP Function Code: Version 1 Function Type: Set Time of day Command Format: Inquire: Display: <SOH>S50100YYMMDDHHmm <SOH>I50100 Computer: <SOH>s50100YYMMDDHHmm <SOH>i50100 Typical Response Message, Display Format: <SOH> I50100...
  • Page 51 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Shift Start Time 1, 2, 3, 4 Command Format: Inquire: Display: <SOH>S502SSHHmm <SOH>I502SS Computer: <SOH>s502SSHHmm <SOH>i502SS Notes: SS - Shift Start time (01, 02, 03, 04) Typical Response Message, Display Format: <SOH>...
  • Page 52 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Print Header Line 1, 2, 3, 4 Command Format: Inquire: Display: <SOH>S503LLaaaaaaaaaaaaaaaaaaaa <SOH>I503LL Computer: <SOH>s503LLaaaaaaaaaaaaaaaaaaaa <SOH>i503LL Typical Response Message, Display Format: <SOH> I50301 22-05-01 14:58 1:STATION HEADER 1..
  • Page 53 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set System RS-232 Security Code Command Format: Inquire: Display: <SOH>S50400aaaaaa <SOH>I50400 Computer: <SOH>s50400aaaaaa <SOH>i50400 Typical Response Message, Display Format: <SOH> I50400 22-05-01 14:58 232 SECURITY CODE PORT...
  • Page 54 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Printer Page Eject Flag Command Format: Inquire: Display: <SOH>S50C00f <SOH>I50C00 Computer: <SOH>s50C00f <SOH>i50C00 Typical Response Message, Display Format: <SOH> I50C00 22-05-01 14:58 PAGE EJECT : NO <ETX>...
  • Page 55 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Print Temperature Compensation Flag Command Format: Inquire: Display: <SOH>S50D00f <SOH>I50D00 Computer: <SOH>s50D00f <SOH>i50D00 Typical Response Message, Display Format: <SOH> I50D00 22-05-01 14:59 PRINT TC VOLUMES DISABLED <ETX>...
  • Page 56 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Temperature Compensation Value Command Format: Inquire: Display: <SOH>S50E00DDD.hh <SOH>I50E00 Computer: <SOH>s50E00FFFFFFFF <SOH>i50E00 Notes: DDD.hh - Compensation Temperature, Degrees and hundredths (Decimal) FFFFFFFF - Compensation Temperature, Degrees (ASCII Hex IEEE float) Typical Response Message, Display Format: <SOH>...
  • Page 57 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set System Date/Time Display Format Command Format: Inquire: Display: <SOH>S50F00xx <SOH>I50F00 Computer: <SOH>s50F00xx <SOH>i50F00 Typical Response Message, Display Format: <SOH> I50F00 22-05-01 14:59 DD-MM-YY HH:MM:SS <ETX> Typical Response Message, Computer Format: <SOH>i50F00YYMMDDHHMMxx&&CCCC<ETX>...
  • Page 58 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set H-Protocol Height/Volume format Command Format: Inquire: Display: <SOH>S51400f <SOH>I51400 Computer: <SOH>s51400f <SOH>i51400 Typical Response Message, Display Format: <SOH> I51400 22-05-01 14:59 H-PROTOCOL DATA FORMAT HEIGHT <ETX>...
  • Page 59 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set System Type & Language Flags Command Format: Inquire: Display: <SOH>S51700ULL <SOH>I51700 Computer: <SOH>s51700ULL <SOH>i51700 Typical Response Message, Display Format: <SOH> I51700 22-05-01 14:59 SYSTEM TYPE AND LANGUAGE FLAG...
  • Page 60 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Enable/Disable Auto Daylight Saving Time Command Format: Inquire: Display: <SOH>S51A00f <SOH>I51A00 Computer: <SOH>s51A00f <SOH>i51A00 Typical Response Message, Display Format: <SOH> I51A00 22-05-01 14:59 DAYLIGHT SAVING TIME DISABLED <ETX>...
  • Page 61 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Start/End Daylight Saving Date and Time Command Format: Inquire: Display: <SOH>S51BttMMWDHHmm <SOH>I51Btt Computer: <SOH>s51BttMMWDHHmm <SOH>i51Btt Notes: YYMMDDHHmm - Current Date and Time tt - Start or End Time Indicator 01=Start Date &...
  • Page 62 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Euro Protocol Prefix Command Format: Inquire: Display: <SOH>S51F00e <SOH>I51F00 Computer: <SOH>s51F00e <SOH>i51F00 Typical Response Message, Display Format: <SOH> I51F00 22-05-01 15:02 EURO PROTOCOL PREFIX <ETX> Typical Response Message, Computer Format: <SOH>i51F00YYMMDDHHmme&&CCCC<ETX>...

  • Page 63: Communications Setup

    Serial Interface Manual • TLS2 Monitoring Systems 7.3.2 COMMUNICATIONS SETUP Function Code: Version 1 Function Type: Set Receiver Telephone Number Command Format: Inquire: Display: <SOH>S523RRaaaaaaaaaaaaaaaaaaaa <SOH>I523RR Computer: <SOH>s523RRaaaaaaaaaaaaaaaaaaaa <SOH>i523RR Typical Response Message, Display Format: <SOH> I52301 22-05-01 15:02 RECEIVER PHONE NUMBER...
  • Page 64 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Receiver Retry Number Command Format: Inquire: Display: <SOH>S526RRnn <SOH>I526RR Computer: <SOH>s526RRnn <SOH>i526RR Typical Response Message, Display Format: <SOH> I52601 22-05-01 15:02 RETRY NUMBER RCVR RETRY NUMBER <ETX>...
  • Page 65 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Receiver Retry Delay Time Command Format: Inquire: Display: <SOH>S527RRnn <SOH>I527RR Computer: <SOH>s527RRnn <SOH>i527RR Typical Response Message, Display Format: <SOH> I52701 22-05-01 15:03 RETRY DELAY TIME RCVR RETRY DELAY <ETX>...
  • Page 66 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Receiver Auto Dial On Alarms Command Format: Inquire: Display: <SOH>S52CRRAANNTTSS <SOH>I52CRR Computer: <SOH>s52CRRAANNTTSS <SOH>i52CRR Typical Response Message, Display Format: <SOH> I52C01 22-05-01 15:06 RECEIVER SETUP REPORT...
  • Page 67 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Modem Hangup Method Command Format: Inquire: Display: <SOH>S53500MM <SOH>I535MM Computer: <SOH>s53500MM <SOH>i535MM Typical Response Message, Display Format: <SOH> I53501 22-05-01 15:06 AUTO COMPUTER MODE HANGUP RCVR...
  • Page 68 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set RS-232 Security Code per Port Command Format: Inquire: Display: <SOH>S536PPsaaaaaa <SOH>I536PP Computer: <SOH>s536PPsaaaaaa <SOH>i536PP Notes: PP - Port number (Decimal, 01-02; 99=this port) s - Enable or Disable Status (if disabled no password is...
  • Page 69 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Receiver Auto Dial On Events Command Format: Inquire: Display: <SOH>S539RRAANNTTSS <SOH>I539RR Computer: <SOH>s539RRAANNTTSS <SOH>i539RR Typical Response Message, Display Format: <SOH> I53901 22-05-01 15:06 RECEIVER EVENTS SETUP REPORT...
  • Page 70 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Set TC Density Enable Command Format: Inquire: Display: <SOH>S54500f <SOH>I54500 Computer: <SOH>s54500f <SOH>i54500 Typical Response Message, Display Format: <SOH> I54500 04-30-09 9:11 AM TC DENSITY ENABLED <ETX>...
  • Page 71 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set IS03166 3 Character Country Code Command Format: Inquire: Display: <SOH>S54D00aaa <SOH>I54D00 Computer: <SOH>s54D00aaa <SOH>i54D00 Typical Response Message, Display Format: <SOH> I54D00 APR 10, 2007 10:15 AM ISO3166 COUNTRY CODE: ESP <ETX>...

  • Page 72: I/O Device Setup

    Serial Interface Manual • TLS2 Monitoring Systems 7.3.3 I/O DEVICE SETUP Function Code: Version 1 Function Type: Set Relay Alarm Assignment Command Format: Inquire: Display: <SOH>S55C00M <SOH>I55C00 Computer: <SOH>s55C00M <SOH>i55C00 Typical Response Message, Display Format: <SOH> I55C01 22-05-01 15:06 ALARM RELAY : NONE <ETX>...
  • Page 73 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Autodial Confirmation Flag Command Format: Inquire: Display: <SOH>S56BRRf <SOH>I56BRR Computer: <SOH>s56BRRf <SOH>i56BRR Typical Response Message, Display Format: <SOH> I56B01 22-05-01 15:03 AUTODIAL CONFIRMATION RCVR AUTODIAL CONFIRMATION DISABLED <ETX>...
  • Page 74 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Shift Close Method Command Format: Inquire: Display: <SOH>S56D00M <SOH>I56D00 Computer: <SOH>s56D00M <SOH>i56D00 Typical Response Message, Display Format: <SOH> I56D00 22-05-08 15:02 SHIFT CLOSE METHOD : SNAPSHOT <ETX>...
  • Page 75 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Manual Close Timeout Command Format: Inquire: Display: <SOH>S56E00NN <SOH>I56E00 Computer: <SOH>s56E00NN <SOH>i56E00 Typical Response Message, Display Format: <SOH> I56E00 22-05-08 15:02 MANUAL CLOSE TIMEOUT <ETX> Typical Response Message, Computer Format: <SOH>i56D00YYMMDDHHmmNN&&CCCC<ETX>...
  • Page 76 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Dial Type Command Format: Inquire: Display: <SOH>S571RRTT <SOH>I571RR Computer: <SOH>s571RRTT <SOH>i571RR Typical Response Message, Display Format: <SOH> I57100 JAN 31, 2008 9:02 AM DIAL TYPE RCVR...
  • Page 77 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Set Push Site ID Enable Command Format: Inquire: Display: <SOH>S574RRF <SOH>I574RR Computer: <SOH>s574RRF <SOH>i574RR Typical Response Message, Display Format: <SOH> I57400 JUL 8, 2009 9:02 AM PUSH SITE ID ENABLE...
  • Page 78 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Set Dial Type Command Format: Inquire: Display: <SOH>S571RRDDDDDD <SOH>I571RR Computer: <SOH>s571RRHHHHHHHH <SOH>i571RR Notes: DDDDDD - Site ID (Decimal) Typical Response Message, Display Format: <SOH> I57500 8, 2009...
  • Page 79 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Inventory Start Time Command Format: Inquire: Display: <SOH>S57700hhmm <SOH>I57700 Computer: <SOH>s57700hhmm <SOH>i57700 Typical Response Message, Display Format: <SOH> I577D00 22-05-08 15:02 INVENTORY LOG TIME : 12:00 <ETX>...
  • Page 80 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Inventory Repeat Interval Command Format: Inquire: Display: <SOH>S57800rr <SOH>I57800 Computer: <SOH>s57800rr <SOH>i57800 Typical Response Message, Display Format: <SOH> I57800 22-05-08 15:02 INVENTORY LOG INTERVAL : 1 Hour <ETX>...
  • Page 81 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Set Tank Idle Delivery Enabled Command Format: Inquire: Display: <SOH>S57900f <SOH>I57900 Computer: <SOH>s57900f <SOH>i57900 Typical Response Message, Display Format: <SOH> I57900 22-05-08 15:02 TANK IDLE DELIVERY ENABLED <ETX>...

  • Page 82: In-Tank Setup

    Serial Interface Manual • TLS2 Monitoring Systems 7.3.4 IN-TANK SETUP Function Code: Version 1 Function Type: Set Tank Configuration Command Format: Inquire: Display: <SOH>S601TTf <SOH>I601TT Computer: <SOH>s601TTf <SOH>i601TT Typical Response Message, Display Format: <SOH> I60101 22-05-01 15:07 TANK CONFIGURATION DEVICE...
  • Page 83 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Product Label Command Format: Inquire: Display: <SOH>S602TTaaaaaaaaaaaaaaaaaaaa <SOH>I602TT Computer: <SOH>s602TTaaaaaaaaaaaaaaaaaaaa <SOH>i602TT Typical Response Message, Display Format: <SOH> I60201 22-05-01 15:07 TANK PRODUCT LABEL TANK PRODUCT LABEL REGULAR UNLEADED <ETX>...
  • Page 84 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank 1 Point Full Height Volume Command Format: Inquire: Display: <SOH>S604TTGGGGGG <SOH>I604TT Computer: <SOH>s604TTFFFFFFFF <SOH>i604TT Notes: TT - Tank Number (Decimal, 00 = all) GGGGGG - Full Height Volume, Gallons (Decimal)
  • Page 85 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank 4 Point Full, 3/4, 1/2, 1/4 Volumes Command Format: Inquire: Display: <SOH>S605TTGGGGGGggggggGGGGGGgggggg <SOH>I605TT or: <SOH>S605TTGGGG,gggg,GGGG,ggg Computer: <SOH>s605TTFFFFFFFFffffffffFFFFFFFFffffffff <SOH>i605TT Notes: TT - Tank Number (Decimal, 00 = all)
  • Page 86 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank 20 Point Full, 95%, 90%,...Volumes Command Format: Inquire: Display: <SOH>S606TTGGGGGGgggggg... <SOH>I606TT or: <SOH>S606TTGGGG,gggg,GGGG,... Computer: <SOH>s606TTFFFFFFFF... <SOH>i606TT Notes: TT - Tank Number (Decimal, 00 = all)
  • Page 87 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Diameter Command Format: Inquire: Display: <SOH>S607TTIII.hh <SOH>I607TT Computer: <SOH>s607TTFFFFFFFF <SOH>i607TT Notes: TT - Tank Number (Decimal, 00 = all) III.hh - Tank Diameter, Inches and hundredths (Decimal)
  • Page 88 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Tilt Command Format: Inquire: Display: <SOH>S608TTIII.hh <SOH>I608TT Computer: <SOH>s608TTFFFFFFFF <SOH>i608TT Notes: TT - Tank Number (Decimal, 00 = all) III.hh - Tank Tilt, Inches and hundredths (Decimal)
  • Page 89 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Thermal Expansion Coefficient Command Format: Inquire: Display: <SOH>S609TTc.cccccc <SOH>I609TT Computer: <SOH>s609TTFFFFFFFF <SOH>i609TT Notes: TT - Tank Number (Decimal, 00 = all) c.cccccc - Thermal Expansion Coefficient (decimal)
  • Page 90 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Linear Calculated Full Volume Command Format: Inquire: Display: <SOH>S60ATTGGGGGG <SOH>I60ATT Computer: <SOH>s60ATTFFFFFFFF <SOH>i60ATT Notes: TT - Tank Number (Decimal, 00 = all) GGGGGG - Full Height Volume, Gallons (Decimal)
  • Page 91 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Stick Height Function Enable Command Format: Inquire: Display: <SOH>S60B00f <SOH>I60B00 Computer: <SOH>s60B00f <SOH>i60B00 Typical Response Message, Display Format: <SOH> I60B01 22-05-01 15:08 STICK HEIGHT OFFSET ENABLE STATUS ENABLED <ETX>...
  • Page 92 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Stick Height Offset Command Format: Inquire: Display: <SOH>S60CTTIII.hh <SOH>I60CTT Computer: <SOH>s60CTTFFFFFFFF <SOH>i60CTT Notes: TT - Tank Number (Decimal, 00 = all) III.hh - Stick Height Offset, Inches and hundredths (Decimal) FFFFFFFF - Stick Height Offset, Inches (ASCII Hex IEEE float).
  • Page 93 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Chinese Fixed Product Label Command Format: Inquire: Display: <SOH>S60DTTLL <SOH>I60DTT Computer: <SOH>s60DTTLL <SOH>i60DTT Typical Response Message, Display Format: <SOH> I60D01 22-05-01 15:08 CHINESE PRODUCT LABEL TANK 1 <ETX>...
  • Page 94 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Delivery Delay Command Format: Inquire: Display: <SOH>S610TTdd <SOH>I610TT Computer: <SOH>s610TTdd <SOH>i610TT Typical Response Message, Display Format: <SOH> I61001 22-05-01 15:08 TANK DELIVERY DELAY TANK PRODUCT LABEL REGULAR UNLEADED <ETX>...
  • Page 95 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Leak Test Type & Start Time Command Format: Inquire: Display: <SOH>S611TTDDRMYYMMDDHHmm<CR> (if M = 1) <SOH>I611TT MMWDHHmm<CR> (if M = 2) WDHHmm<CR> (if M = 3) DHHmm<CR>...
  • Page 96 Serial Interface Manual • TLS2 Monitoring Systems Function Code 611 Notes: (Continued) M - Leak test Method: 1 = On Date 2 = Annually 3 = Monthly 4 = Weekly 5 = Daily - If M = 1 ON DATE, YYMMDDHHmm:...
  • Page 97 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Manifolded Partners Command Format: Inquire: Display: <SOH>S612TTttTTtt...<CR> <SOH>I612TT Computer: <SOH>s612TTttTTtt...<CR> <SOH>i612TT Typical Response Message, Display Format: <SOH> I61201 22-05-01 15:09 TANK MANIFOLDED PARTNERS TANK PRODUCT LABEL...
  • Page 98 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set In-Tank Leak Test Early Stop Command Format: Inquire: Display: <SOH>S61ATTf <SOH>I61ATT Computer: <SOH>s61ATTf <SOH>i61ATT Typical Response Message, Display Format: <SOH> I61A01 22-05-01 15:09 IN-TANK LEAK TEST EARLY STOP...
  • Page 99 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Low Level Limit Command Format: Inquire: Display: <SOH>S621TTGGGGGG <SOH>I621TT Computer: <SOH>s621TTFFFFFFFF <SOH>i621TT Notes: TT - Tank Number (Decimal, 00 = all) GGGGGG - Low Level Limit, Gallons (Decimal)
  • Page 100 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Overfill Level Limit Command Format: Inquire: Display: <SOH>S623TTGGGGGG <SOH>I623TT Computer: <SOH>s623TTFFFFFFFF <SOH>i623TT Notes: TT - Tank Number (Decimal, 00 = all) GGGGGG - Overfill Level Limit, Gallons (Decimal)
  • Page 101 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank High Water Level Limit Command Format: Inquire: Display: <SOH>S624TTII.t <SOH>I624TT Computer: <SOH>s624TTFFFFFFFF <SOH>i624TT Notes: TT - Tank Number (Decimal, 00 = all) II.t - High Water Level Limit, Inches and tenths (Decimal, Max=05.0)
  • Page 102 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Maximum Volume Limit Command Format: Inquire: Display: <SOH>S628TTGGGGGG <SOH>I628TT Computer: <SOH>s628TTFFFFFFFF <SOH>i628TT Notes: TT - Tank Number (Decimal, 00 = all) GGGGGG - Maximum Volume Limit, Gallons (Decimal)
  • Page 103 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Delivery Required Limit Command Format: Inquire: Display: <SOH>S629TTGGGGGG <SOH>I629TT Computer: <SOH>s629TTFFFFFFFF <SOH>i629TT Notes: TT - Tank Number (Decimal, 00 = all) GGGGGG - Delivery Required Limit, Gallons (Decimal)
  • Page 104 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Annual Leak Test Minimum Volume Command Format: Inquire: Display: <SOH>S62ATTGGGGGG <SOH>I62ATT Computer: <SOH>s62ATTFFFFFFFF <SOH>i62ATT Notes: TT - Tank Number (Decimal, 00 = all) GGGGGG - Annual Test Minimum Volume, Gallons (Decimal)
  • Page 105 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Enable/Disable Tank Leak Test Fail Alarms Command Format: Inquire: Display: <SOH>S62DTTgpa <SOH>I62DTT Computer: <SOH>s62DTTgpa <SOH>i62DTT Typical Response Message, Display Format: <SOH> I62D01 22-05-01 15:10 TANK LEAK TEST FAIL ALARMS...
  • Page 106 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Mag Probe Float Size Command Format: Inquire: Display: <SOH>S62FTTf <SOH>I62FTT Computer: <SOH>s62FTTf <SOH>i62FTT Typical Response Message, Display Format: <SOH> I62F01 22-05-01 15:10 MAG PROBE FLOAT SIZE...
  • Page 107 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Leak Test Report Type Command Format: Inquire: Display: <SOH>S63300f <SOH>I63300 Computer: <SOH>s63300f <SOH>i63300 Typical Response Message, Display Format: <SOH> I63301 22-05-01 15:10 LEAK TEST REPORT FORMAT: NORMAL <ETX>...
  • Page 108 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Periodic Leak Test Minimum Volume Command Format: Inquire: Display: <SOH>S636TTGGGGGG <SOH>I636TT Computer: <SOH>s636TTFFFFFFFF <SOH>i636TT Notes: TT - Tank Number (Decimal, 00 = all) GGGGGG - Periodic Test Minimum Volume, Gallons (Decimal)
  • Page 109 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Tank Overfill by Percent Command Format: Inquire: Display: <SOH>S638TTppp <SOH>I638TT Computer: <SOH>s638TTppp <SOH>i638TT Typical Response Message, Display Format: <SOH> I63801 22-05-01 15:11 TANK OVERFILL LEVEL LIMIT...
  • Page 110 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Set Density Code Command Format: Inquire: Display: <SOH>S641TTSSSSSSSSSSSSSS <SOH>I641TT Computer: <SOH>s641TTSSSSSSSSSSSSSS <SOH>i641TT Notes: 1. SSSSSSSSSSSSSS - Density Code (This entry should either be exactly 14 characters or empty)) - The density code should always start with either ‘A’...
  • Page 111 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 6 Function Type: Set Tank Density Float Serial Number Command Format: Inquire: Display: <SOH>S644TTSSSSSSSS <SOH>I644TT Computer: <SOH>s644TTSSSSSSSS <SOH>i644TT Typical Response Message, Display Format: <SOH> I644TT AUG 15, 2011 3:11 PM...
  • Page 112 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 6 Function Type: Set Tank GOST Volume Correction Enable Command Format: Inquire: Display: <SOH>S645TTf <SOH>I645TT Computer: <SOH>s645TTf <SOH>i645TT Typical Response Message, Display Format: <SOH> I645TT AUG 15, 2011 3:11 PM...
  • Page 113 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 6 Function Type: Set Tank Multipoint Chart Profile Command Format: Inquire: Display: <SOH>S647TTf <SOH>I647TT Computer: <SOH>s647TTf <SOH>i647TT Notes: TT - Tank Number (Decimal, 00 all) Enable = ‘1’. To disable change profile to 1,4,20 points or linear.
  • Page 114 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Set Tank Density High Limit Command Format: Inquire: Display: <SOH>S671TTdd.ddd <SOH>I671TT Computer: <SOH>s671TTFFFFFFFF <SOH>i671TT Notes: TT - Tank Number (Decimal, 00=all) dd.ddd - Density High Limit (Decimal)
  • Page 115 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Set Tank Density Low Limit Command Format: Inquire: Display: <SOH>S672TTdd.ddd <SOH>I672TT Computer: <SOH>s672TTFFFFFFFF <SOH>i672TT Notes: TT - Tank Number (Decimal, 00=all) dd.ddd - Density Low Limit (Decimal)

  • Page 116: Miscellaneous Setup

    Serial Interface Manual • TLS2 Monitoring Systems 7.3.5 MISCELLANEOUS SETUP Function Code: Version 1 Function Type: Set Immediate Non-volatile RAM Store Command Format: Inquire: Display: <SOH>S85400ss149 <SOH>I85400 Computer: <SOH>s85400ss149 <SOH>i85400 Notes: ss - Save set up data Flag (see below)
  • Page 117 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Communication Port Data Command Format: Inquire: Display: <SOH>S881PPBBBBBPSDTAA <SOH>I881PP Computer: <SOH>s881PPBBBBBPSDTAA <SOH>i881PP Notes: PP - Communication Port Number (Decimal 01-05). Inquiry commands work for all 5 ports (Decimal 01-05). Set commands only work for the first 3 ports (Decimal 01-03).
  • Page 118 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Initialize Communication Port Data Command Format: Inquire: Display: <SOH>S882PP149 <SOH>I882PP Computer: <SOH>s882PP149 <SOH>i882PP Notes: PP - Communication Port Number (Decimal 01-05). Inquiry and set commands work for all 5 ports (Decimal 01-05).
  • Page 119 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Serial Communication Language Command Format: Inquire: Display: <SOH>S88300LL <SOH>I88300 Computer: <SOH>s88300LL <SOH>i88300 Typical Response Message, Display Format: <SOH> I88301 22-05-01 15:11 SERIAL LANGUAGE LANG : ENGLISH <ETX>...
  • Page 120 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Serial Handshaking Method Command Format: Inquire: Display: <SOH>S88400f <SOH>I88400 Computer: <SOH>s88400f <SOH>i88400 Notes: Inquiry and Set commands work for the first 3 ports (Decimal 01-03). The ports can be set to the following values: Port 1: 0 = None, 1 = XON/XOFF, 2 = Hardware Port 2 &...
  • Page 121 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Modem Type Command Format: Inquire: Display: <SOH>S885PPMM <SOH>I885PP Computer: <SOH>s885PPMM <SOH>i885PP Notes: PP - Communication Port Number (Decimal 01 - 02) Typical Response Message, Display Format: <SOH>...
  • Page 122 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Modem Dial-In Setup String Command Format: Inquire: Display: <SOH>S886PPaaaaaaaaaaaaaaaaaaaa <SOH>I886PP Computer: <SOH>s886PPaaaaaaaaaaaaaaaaaaaa <SOH>i886PP Notes: PP - Communication Port Number (Decimal 01 only) Typical Response Message, Display Format: <SOH>...
  • Page 123 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Communications Port Type Command Format: Inquire: Display: <SOH>S88APPt <SOH>I88APP Computer: <SOH>s88APPt <SOH>i88APP Notes: PP - Communication Port Number (Decimal 01-03) Inquiry and Set commands work for the first 3 ports (Decimal 01-03).
  • Page 124 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Printer Language Command Format: Inquire: Display: <SOH>S88BPPll <SOH>I88BPP Computer: <SOH>s88BPPll <SOH>i88BPP Notes: PP - Communication Port Number (Decimal 01 - 03) Typical Response Message, Display Format: <SOH>...
  • Page 125 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Set Modem Dial-Out Setup String Command Format: Inquire: Display: <SOH>S88CPPaaaaaaaaaaaaaaaaaaaa <SOH>I88CPP Computer: <SOH>s88CPPaaaaaaaaaaaaaaaaaaaa <SOH>i88CPP Notes: PP - Communication Port Number (Decimal 01 - 02) Typical Response Message, Display Format: <SOH>...
  • Page 126 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Acknowledge Tank Event Ready Status Command Format: Inquire: Display: <SOH>S89300149 <SOH>I89300 Computer: <SOH>s89300149 <SOH>i89300 Notes: 149 - This verification code must be sent to confirm the command Typical Response Message, Display Format: <SOH>...
  • Page 127 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: TCP/IP Parameter Inquiry Command Format: Display: <SOH>I8C000 Computer: <SOH>i8C000 Typical Response Message, Display Format: <SOH> I8C000 JAN 31, 2008 9:02 AM TCPIP SETUP PARAMETERS HOST IP ADDRESS: 10.2.1.51...
  • Page 128 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set TCP/IP Host Address Command Format: Inquire: Display: <SOH>S8C100aaa.aaa.aaa.aaa <SOH>I8C100 Computer: <SOH>s8C100AAAAAAAA <SOH>i8C100 Notes: 1.aaa.aaa.aaa.aaa - Host IP Address (decimal) AAAAAAAA - Host IP Address (ASCII hex, two digits represent each field) Typical Response Message, Display Format: <SOH>...
  • Page 129 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set TCP/IP Gateway IP Address Command Format: Inquire: Display: <SOH>S8C200aaa.aaa.aaa.aaa <SOH>I8C200 Computer: <SOH>s8C200AAAAAAAA <SOH>i8C200 Notes: 1.aaa.aaa.aaa.aaa - Gateway IP Address (decimal) AAAAAAAA - Gateway IP Address (ASCII hex, two digits represent each...
  • Page 130 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set TCP/IP Subnet Mask Address Command Format: Inquire: Display: <SOH>S8C300aaa.aaa.aaa.aaa <SOH>I8C300 Computer: <SOH>s8C300AAAAAAAA <SOH>i8C300 Notes: 1.aaa.aaa.aaa.aaa - Subnet Mask Address (decimal) AAAAAAAA - Subnet Mask IP Address (ASCII hex, two digits represent each...
  • Page 131 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set TCP/IP Host Port Number Command Format: Inquire: Display: <SOH>S8C400PPPPP <SOH>I8C400 Computer: <SOH>s8C400pppp <SOH>i8C400 Notes: PPPPP - Host Port (decimal) pppp - Host Port (ASCII Hex) Typical Response Message, Display Format: <SOH>...
  • Page 132 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set TCP/IP Remote IP Address Command Format: Inquire: Display: <SOH>S8C500aaa.aaa.aaa.aaa <SOH>I8C500 Computer: <SOH>s8C500AAAAAAAA <SOH>i8C500 Notes: 1.aaa.aaa.aaa.aaa - Remote Address (decimal) AAAAAAAA - Remote Address (ASCII hex, two digits represent each field) Typical Response Message, Display Format: <SOH>...
  • Page 133 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set TCP/IP Remote Port Number Command Format: Inquire: Display: <SOH>S8C600PPPPP <SOH>I8C600 Computer: <SOH>s8C600pppp <SOH>i8C600 Notes: PPPPP - Remote Port (decimal) pppp - Remote Port (ASCII Hex) Typical Response Message, Display Format: <SOH>...
  • Page 134 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Email Recipient 1 Command Format: Inquire: Display: <SOH>S8C700r..r <SOH>I8C700 Computer: <SOH>s8C700r..r <SOH>i8C700 Typical Response Message, Display Format: <SOH> I8C700 JAN 31, 2008 9:02 AM TCPIP SETUP PARAMETERS EMAIL RECIPIENT 1: JOHNDOE@VEEDER.COM...
  • Page 135 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Email Recipient 2 Command Format: Inquire: Display: <SOH>S8C800r..r <SOH>I8C800 Computer: <SOH>s8C800r..r <SOH>i8C800 Typical Response Message, Display Format: <SOH> I8C800 JAN 31, 2008 9:02 AM TCPIP SETUP PARAMETERS EMAIL RECIPIENT 2: JANEDOE@VEEDER.COM...
  • Page 136 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Email From Command Format: Inquire: Display: <SOH>S8C900fffffffffffffffffffffff <SOH>I8C900 Computer: <SOH>s8C900fffffffffffffffffffffff <SOH>i8C900 Typical Response Message, Display Format: <SOH> I8C900 JAN 31, 2008 9:02 AM TCPIP SETUP PARAMETERS...
  • Page 137 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Set Email Mail Server IP Address Command Format: Inquire: Display: <SOH>S8CA00aaa.aaa.aaa.aaa <SOH>I8CA00 Computer: <SOH>s8CA00AAAAAAAA <SOH>i8CA00 Notes: 1.aaa.aaa.aaa.aaa - Email Mail Server IP Address (decimal) AAAAAAAA - Email Mail Server IP Address (ASCII hex, two digits...
  • Page 138 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: TCP/IP Save Setup Command Format: Display: <SOH>S8CB00149 Computer: <SOH>s8CB00149 Notes: 149 - code must be sent to confirm the command ??? - TCP/IP Setup not saved successfully Typical Response Message, Display Format: <SOH>...

  • Page 139: Diagnostic Reports

    Serial Interface Manual • TLS2 Monitoring Systems DIAGNOSTIC REPORTS 7.4.1 SYSTEM DIAGNOSTIC REPORTS Function Code: Version 1 Function Type: System Revision Level Report Command Format: Display: <SOH>I90200 Computer: <SOH>i90200 Typical Response Message, Display Format: <SOH> I90200 22-05-01 15:12 SOFTWARE# 349783-001-AXM CREATED - 01.05.17.15.11...
  • Page 140 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: System Revision Level Report II Command Format: Display: <SOH>I90500 Computer: <SOH>i90500 Typical Response Message, Display Format: <SOH> I90500 22-05-01 15:12 SOFTWARE# 349783-001-AXM CREATED - 01.05.17.15.11 SYSTEM FEATURES:...
  • Page 141 Serial Interface Manual • TLS2 Monitoring Systems Function Code 905 Notes: (Continued) nn - number of 2 byte values to follow (Hex) AA - PERIODIC IN-TANK TESTS (00 = DISABLE, 01 = ENABLE) BB - ANNUAL IN-TANK TESTS (00 = DISABLE, 01 = ENABLE)
  • Page 142 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Setup Password Log In Status Command Format: Display: <SOH>I90F00 Computer: <SOH>i90F00 Typical Response Message, Display Format: <SOH> I90F00 07-12-09 09:43 SETUP PASSWORD LOG IN STATUS SETUP PASSWORD: ENABLED COMM 1: LOGGED IN <ETX>...

  • Page 143: In-Tank Diagnostic Reports

    Serial Interface Manual • TLS2 Monitoring Systems 7.4.2 IN-TANK DIAGNOSTIC REPORTS Function Code: Version 1 Function Type: Probe Type and Serial Number Command Format: Display: <SOH>IA01TT Computer: <SOH>iA01TT Typical Response Message, Display Format: <SOH> IA0101 22-05-01 15:12 TYPE CODE LENGTH SERIAL NO.
  • Page 144 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Probe Factory Calibration Values Command Format: Display: <SOH>IA02TT Computer: <SOH>iA02TT Typical Response Message, Display Format: <SOH> IA0201 22-05-01 15:12 TANK REGULAR UNLEADED GRADIENT = 180.0000 OPT= 0x0000 <ETX>...
  • Page 145 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Probe Last Sample Buffers Command Format: Display: <SOH>IA10TT Computer: <SOH>iA10TT Typical Response Message, Display Format: <SOH> IA1001 22-05-01 15:13 TANK REGULAR UNLEADED NUMBER OF SAMPLES = 569.000 13584.000 13584.000 13584.000 13584.000 13585.000 13585.000 13584.000 13584.000 13585.000 13584.000 40000.000 21993.000 21993.000 21993.000 21993.000...
  • Page 146 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Probe Fast Average Buffers Command Format: Display: <SOH>IA11TT Computer: <SOH>iA11TT Typical Response Message, Display Format: <SOH> IA1101 22-05-01 15:13 TANK REGULAR UNLEADED NUMBER OF SAMPLES = 569.000 13584.000 13584.000 13584.000 13584.000 13585.000 13585.000 13584.000 13584.000 13585.000 13584.000 40000.000 21993.000 21993.000 21993.000 21993.000...
  • Page 147 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Probe Standard Average Buffers Command Format: Display: <SOH>IA12TT Computer: <SOH>iA12TT Typical Response Message, Display Format: <SOH> IA1201 22-05-01 15:13 TANK REGULAR UNLEADED NUMBER OF SAMPLES = 569.000 13584.000 13584.000 13584.000 13584.000 13585.000 13585.000 13584.000 13584.000 13585.000 13584.000 40000.000 21993.000 21993.000 21993.000 21993.000...
  • Page 148 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Probe Long Term Average Buffers Command Format: Display: <SOH>IA13TT Computer: <SOH>iA13TT Typical Response Message, Display Format: <SOH> IA1301 22-05-01 15:13 TANK REGULAR UNLEADED NUMBER OF SAMPLES = 569.000 13584.000 13584.000 13584.000 13584.000 13585.000 13585.000 13584.000...
  • Page 149 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Mag Probe Option Table Command Format: Display: <SOH>IA14TT Computer: <SOH>iA14TT Typical Response Message, Display Format: <SOH> IA1401 22-05-01 15:13 MAG PROBE OPTIONS TABLE TEMP <ETX> Typical Response Message, Computer Format: <SOH>iA14TTYYMMDDHHmmTTNNL...
  • Page 150 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 4 Function Type: Probe Diagnostic Printout Command Format: Display: <SOH>IA18TT Computer: <SOH>iA18TT Typical Response Message, Display Format: <SOH> IA1801 22-05-01 15:13 DIAGNOSTICS SOFTWARE REVISION 349783-001-B TANK PROBE TYPE MAG1 SERIAL NUMBER...
  • Page 151 Serial Interface Manual • TLS2 Monitoring Systems Function Code A18 Typical Response Message, Display Format: (Continued) COUNTS 15 017389 COUNTS 16 017468 COUNTS 17 017460 COUNTS 18 044370 OPTIONS CODE 0X0000 <ETX> Typical Response Message, Computer Format: <SOH>iA18TTYYMMDDHHmmTTppppsssssszzzzllllllllggggggggSSSSSSSS rrrrrrruuuuuuuuYYMMDDhhhhhhhhYYMMDDkkkkkkkk AAaaaaaaaa... aaaaaaaaBBbbbbbbbb...bbbbbbbb NNcccccccc...ccccccccKKKKKKKK...
  • Page 152 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Probe Leak Test Flags - Present Test Command Format: Display: <SOH>IA20TT Computer: <SOH>iA20TT Typical Response Message, Display Format: <SOH> IA2001 22-05-01 15:13 TANK REGULAR UNLEADED PRESENT LEAK TEST ANALYSIS REPORT 0.10 GAL/HR FLAGS:...
  • Page 153 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Probe Leak Test Flags - Stored Test Command Format: Display: <SOH>IA21TT Computer: <SOH>iA21TT Typical Response Message, Display Format: <SOH> IA2101 22-05-01 15:13 TANK REGULAR UNLEADED STORED LEAK TEST ANALYSIS REPORT 0.10 GAL/HR FLAGS:...
  • Page 154 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Probe Leak Test Flags - Gross Test Command Format: Display: <SOH>IA22TT Computer: <SOH>iA22TT Typical Response Message, Display Format: <SOH> IA2201 22-05-01 15:13 TANK REGULAR UNLEADED GROSS LEAK TEST ANALYSIS REPORT GROSS LEAK TEST FLAGS: <ETX>...
  • Page 155 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 1 Function Type: Get Tank Profile and Full Volume Command Format: Display: <SOH>IA30TT Computer: <SOH>iA30TT Typical Response Message, Display Format: <SOH> IA3001 22-05-01 15:13 TANK FULL VOLUME TANK PRODUCT LABEL...
  • Page 156 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 6 Function Type: Multipoint Tank Chart Report Command Format: Display: <SOH>IA31TT Computer: <SOH>iA31TT Typical Response Message, Display Format: <SOH> IA3101 AUG 22, 2011 3:12 PM MULTIPOINT TANK CHART TANK 1: SUPER DUPER...

  • Page 157: Miscellaneous

    Serial Interface Manual • TLS2 Monitoring Systems MISCELLANEOUS 7.5.1 MISCELLANEOUS Function Code: Version 5 Function Type: Push Site ID Command Format: Display: This command is only sent out by the TLS2P Computer: Typical Response Message, Display Format: Computer format only Typical Response Message, Computer Format: <SOH>iD0100YYMMDDHHmmDDDDDD000000&&CCCC<ETX>...
  • Page 158 Serial Interface Manual • TLS2 Monitoring Systems Function Code: Version 5 Function Type: Server Heartbeat Command Format: Display: Computer: <SOH>iD0200cccc Typical Response Message, Display Format: Computer format only Typical Response Message, Computer Format: <SOH>iD0200YYMMDDHHmmcccc&&CCCC<ETX> Notes: YYMMDDHHmm - Current Date and Time cccc - Heartbeat Characters (ASCII characters [20h-7Eh]) &&...

  • Page 159: 8.0 Function Code Summary

    Serial Interface Manual • TLS2 Monitoring Systems 8.0 FUNCTION CODE SUMMARY CONTROL FUNCTIONS (7.1) Code Ver Function System Reset Remote Alarm Reset Computer Mode Autodial Hang-up Start In-Tank Leak Detect Test Stop In-Tank Leak Detect Test Password Log In Password Log Out OPERATIONAL REPORTS (7.2)
  • Page 160 Serial Interface Manual • TLS2 Monitoring Systems IN-TANK REPORTS (7.2.2) (Continued) Code Ver Function Power Outage Delivery Report Inventory Snaphot Volume Manual Shift Inventory Snapshot Report In-Tank Full Inventory Report Density Offset History Report In-Tank Mass / Density Inventory Report 2 In-Tank Mass / Density Delivery Report 2 I/O DEVICE REPORTS (7.2.3)
  • Page 161 Serial Interface Manual • TLS2 Monitoring Systems COMMUNICATIONS SETUP (7.3.2) (Continued) Code Ver Function Set RS-232 Security Code per Port Set Receiver Auto Dial On Events Set TC Density Enable Set IS03166 3 Character Country Code I/O DEVICE SETUP (7.3.3)
  • Page 162 Serial Interface Manual • TLS2 Monitoring Systems IN-TANK SETUP (7.3.4) (Continued) Code Ver Function Set Tank High Water Level Limit Set Tank Maximum Volume Limit Set Tank Delivery Required Limit Set Tank Annual Leak Test Minimum Volume Set Enable/Disable Tank Leak Test Fail Alarms...
  • Page 163 Serial Interface Manual • TLS2 Monitoring Systems MISCELLANEOUS SETUP (7.3.5) (Continued) Code Ver Function Set Email Recipient 2 Set Email From Set Email Mail Server IP Address TCP/IP Save Setup Part No. 577013-767, Revision H...
  • Page 164 Serial Interface Manual • TLS2 Monitoring Systems DIAGNOSTIC REPORTS (7.4) SYSTEM DIAGNOSTIC REPORTS (7.4.1) Code Ver Function System Revision Level Report System Revision Level Report II Password Log In Status IN-TANK DIAGNOSTIC REPORTS (7.4.2) Code Ver Function Probe Type and Serial Number...
  • Page 165 For technical support, sales or other assistance, please visit: www.veeder.com...
