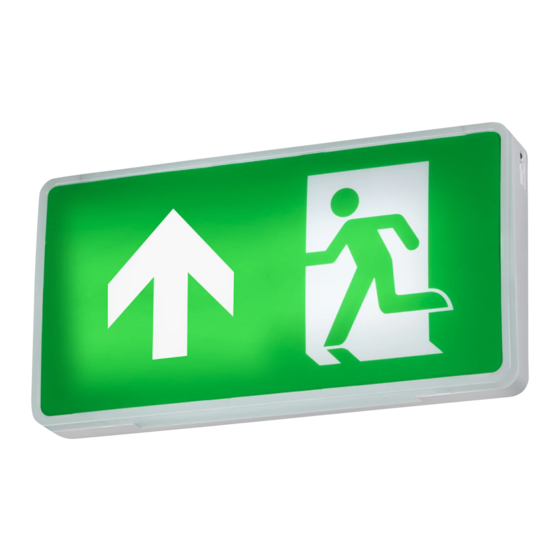

- Page 1 INSTALLATION & MAINTENANCE MANUAL EMRNST...
-
Page 2: General Instructions
These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following product: EMRNST SAFETY • This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671) and current Building Regulations. -
Page 3: Installation
duct is IP20 rated INSTALLATION power to the required point of installation ng is supplied with the ‘arrow up’ legend as standard. The legend may be changed if r r plastic front cover should be removed by inserting a screwdriver beside the plastic t •... - Page 4 • Open the fitting by inserting a small flat-head screwdriver into the two tabs on the underside and lever open gently (see Fig. 2) Fig. 2 • Drill the fixing holes in the rear of the baseplate. Mark the location of the fixing holes and drill ensuring not to infringe with any gas/water pipes or electrical cables •...
- Page 5 Feed the mains cable into the fitting and secure the baseplate to the surface Wire for non-maintained operation (Fig. 3), maintained operation (Fig. 4) or switched-maintained operation (Fig. 5) as required. Remove the link between LS and L if not required Fig.
-
Page 6: Self-Test Function
SELF-TEST FUNCTION This product is programmed to carry out its own self-test function according to the following programme: 24 hours after first power-on 3-hour duration test then every 28 days 30 second monthly function test and every 52 weeks 3-hour duration test Following self-tests, the unit will revert into charging mode, and any faults will be indicated by the bi-colour LED indicator as follows: LED Indicator... - Page 7 Test button Green LED Status Short press Emergency mode while test button held in Press for approx. 5 Slow flash Emergency mode for 30 seconds (monthly seconds function test) Press for approx. 7 Fast flash Emergency mode for 3 hours (duration test) seconds Press for approx.
-
Page 8: Warranty
WARRANTY This product has a warranty of 3 years (excluding battery) from date of purchase. Failure to install this product in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place of purchase for a free of charge replacement. - Page 9 ACCESSORIES LTD ACCESSORIES LTD ML Accessories Limited LU5 4LT www.mlaccessories.co.uk DCJUN20_V1...
- Page 10 TEST RECORD SHEET SIGNED DATE INITIAL COMMISSIONING 3 HOUR TEST FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR MONTH TEST SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL...
