Summary of Contents for Knightsbridge LEDM06 Series

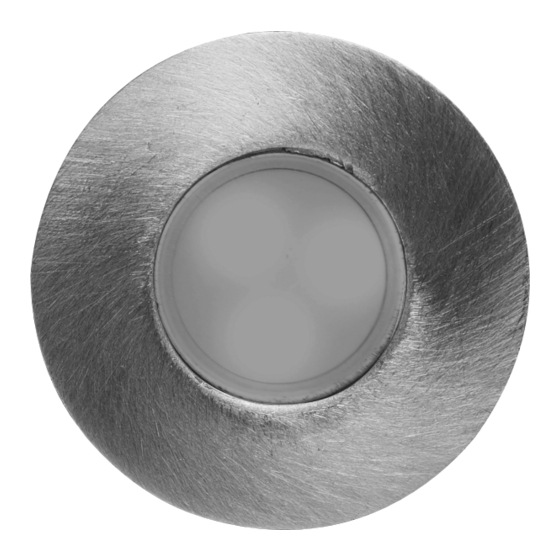

- Page 1 INSTALLATION & MAINTENANCE MANUAL LEDM06 series 50Hz...
- Page 2 GENERAL INSTRUCTIONS LEDM07 series These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be read carefully and retained after installation by the end user for These instructions should be used to aid installation of the following products: maintenance.
- Page 3 Live (brown) • Connect the mains supply, Live (brown), Neutral (blue) and Earth (green/yellow) (see Fig 3) Fig 2 Neutral (blue) Live (brown) Earth (green/yellow) Neutral (blue) Fig 2 • The power source connections should be local and accessible via a suitable IP rated enclosure Fig 3 The power source connections should be local and accessible via a suitable IP rated enclosure •...
- Page 4 WARNING This product must be disconnected from the circuit if it subjected to any high voltage or insulation resistance testing. Irreparable damage will occur if this instruction is not followed. This product is unsuitable for installation in or near coastal and marine environments. Care should be taken when installing into high ‘clay’...
