NOTE: This operation relies more on fitting the
communication module into the connector than
seeing the connectors mate.
5. Insert the communication module, pointed up, into the
slot. Keeping it level, roll the module into position as
you guide it into the slot, feeling the connectors line up
(Figure 9, Steps 1 and 2).
6. When you feel the connectors align, press the
communication module into the plug. Verify that the
module is firmly connected
NOTE: Previous hardware version is shown below. However,
the installation process for current version hardware
is identical.

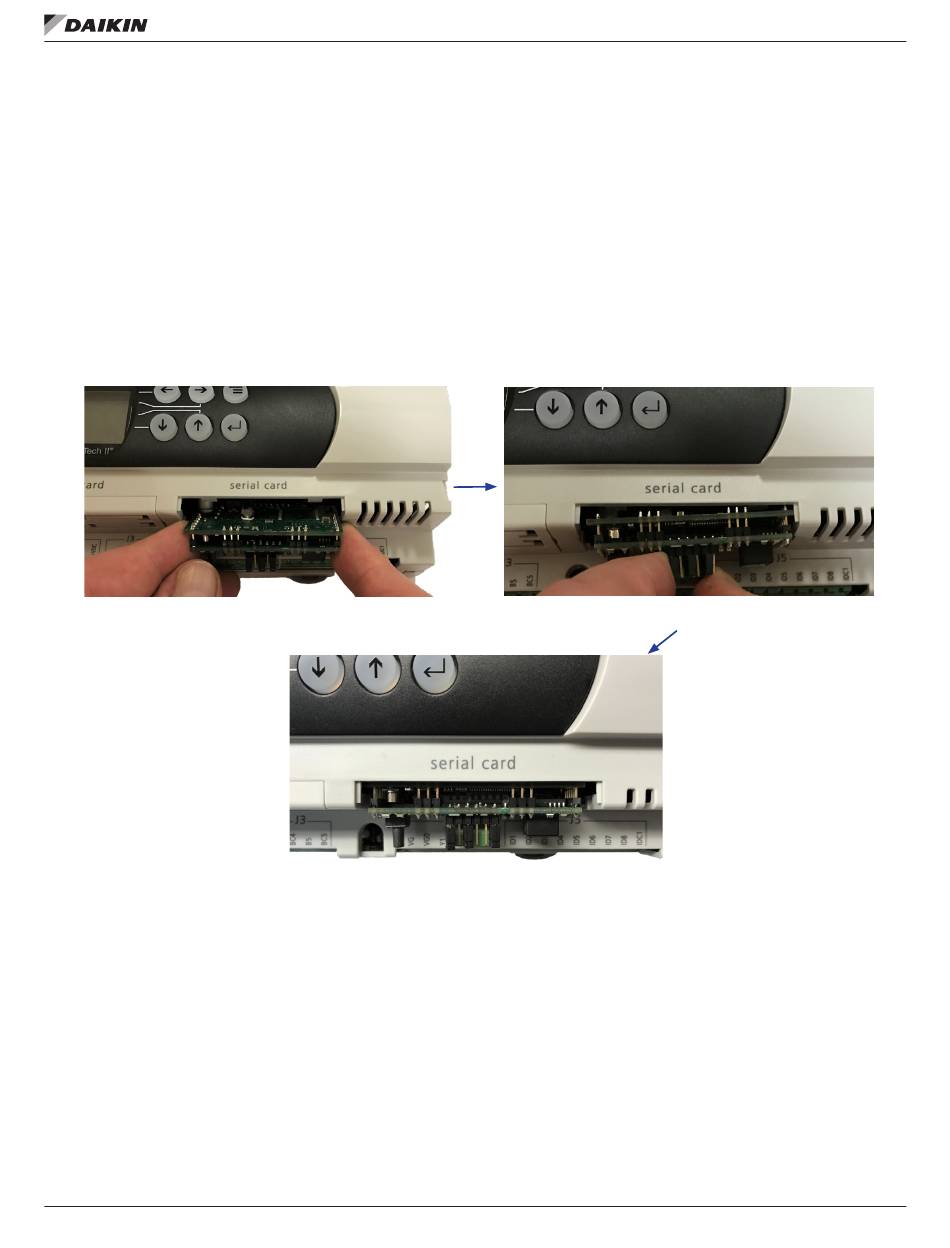

Figure 9: Inserting the Communication Module
www.DaikinApplied.com
(Figure 9, Step 3).
Step 1
Step 3
9 IM 906-4 • MICROTECH II CHILLER UNIT CONTROLLER
Installation
Step 2
