Download BACnet Firmware Files

New or updated firmware and/or CSV files can be downloaded
using the BACnet Configuration Tool's System tab.
NOTE: These files do not need to be updated unless
instructed by the Daikin Applied Controls group
The steps below describe the downloading process.
describes the properties and buttons available on this tab.
1. Go to www.DaikinApplied.com
necessary file(s) or call the Daikin Applied Controls
Customer Support group at 866-462-7829 to request a
copy of the firmware or CSV file.
2. Save the file on your hard drive.
3. Open the BACnet Configuration Tool, read the Object
List, then Read the Device Properties.
4. Navigate to the System tab
5. Click the Browse Button, then locate and select the
desired file from your hard drive. The type of file to be
downloaded depends on the filename and its extension.
Typical Filenames are:
• flash_apps.bin
• flash_sys.bin
• flash_apps-20170101.car
• bcm.csv
6. Click on the Download button.
7. Once the download is complete, reboot the
communication module.
8. View the firmware version to confirm the update was
successful.
NOTE: Do not load BACnet files without first consulting
Daikin Applied Controls Customer Support. It is
not expected for the BACnet module to be routinely
updated in the field. If the module must be updated
and both BACnet software and firmware must be
downloaded to the module, the BACnet firmware
(flash_sys) file must be downloaded first, then the
software (flash_apps) file should be downloaded.

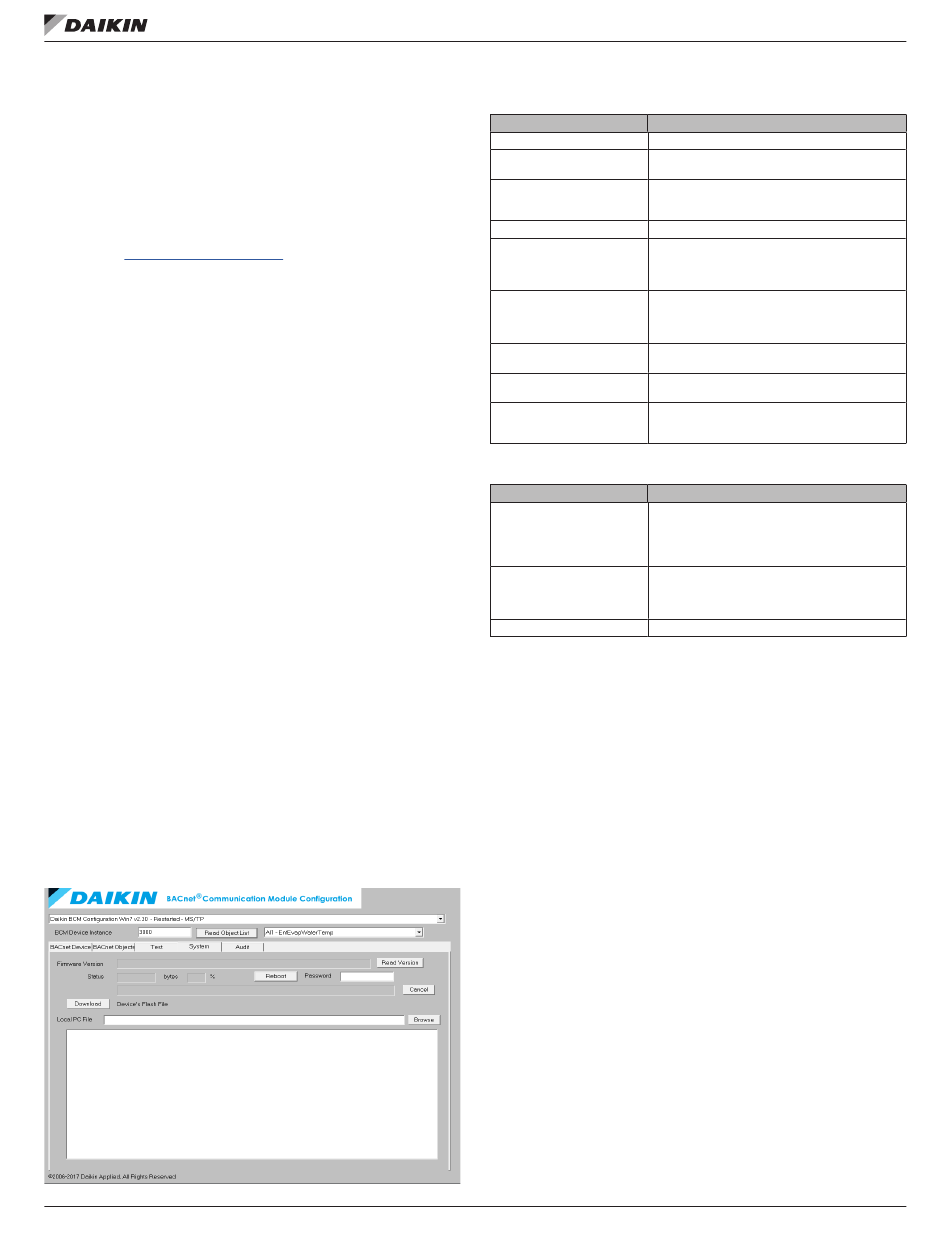

Figure 22: System Tab
IM 906-4 • MICROTECH II CHILLER UNIT CONTROLLER
Table 8
to download the
(Figure 22).
Table 8: System Tab Details
Property/Button Description
Firmware Version The communication module firmware version.
Reads the firmware version of the
Read Version Button
communication module.
Indicates the download progress in bytes and
Status and bytes % as a percentage (%) of the total bytes to be
downloaded.
Password Password property of the Device Object.
Restarts the communication module if the
Password matches the Password property of
Reboot Button
the Device Object. Reboot does not restart the
chiller unit controller.
Writes the PC file from the Local PC File field to
the flash_apps.bin or flash_sys.bin firmware file,
Download Button
or the bcm.csv or bcmmap.csv CIT file on the
communication module.
Indicates the file to be downloaded to the
Device's Flash File
communication module.
Contains the location of the file to be
Local PC File
downloaded.
Provides the ability to select the directory of the
Browse Button file to download. Another option is to type the
complete file name into the Local PC File field.
Table 9: BACnet Files for Download
File Name Description
Software file for the communication module.
This file may change if the software changes.
flash_apps.bin This file does not need to be updated unless
instructed by the Daikin Applied Controls
Customer Support group.
Firmware file for the communication module.
This file does not need to be updated unless
flash_sys.bin
instructed by the Daikin Applied Controls
Customer Support group.
bcm.csv CIT file of the BACnet Configuration Tool.
Change BACnet Configuration Tool
Addressing Parameters
The BACdoor OEM Client Status tab is available for
diagnostic purposes or to change the settings of the BACnet
Configuration Tool itself. It is not used to modify settings
specific to the communication module. It is only required if any
of the following statements are true:
1. The Baud Rate was modified from 38400
2. The MSTP Station (MAC) Address was set to 1
3. The Device Instance of the communication module has
been set to 3333, which is the same default value as the
BACnet Configuration Tool
4. If the computer setting for the EIA-485 converter needs
to be changed from Comm Port 1
NOTE: In order for the BACnet Configuration Tool and
the communication module to operate correctly,
they must both be at the same Baud Rate but
have different Device Instance Numbers and
MS/TP Nodes.
The BACnet Configuration Tool uses standard BACnet
commands when communicating via a BACnet network. For
example, it issues a ReadProperty or WriteProperty request to
the device object (in this case, the chiller unit controller).
The BACdoor OEM Client Status displays the status of BACnet
packets as they are being exchanged among the BACnet
18
Network Configuration
www.DaikinApplied.com
