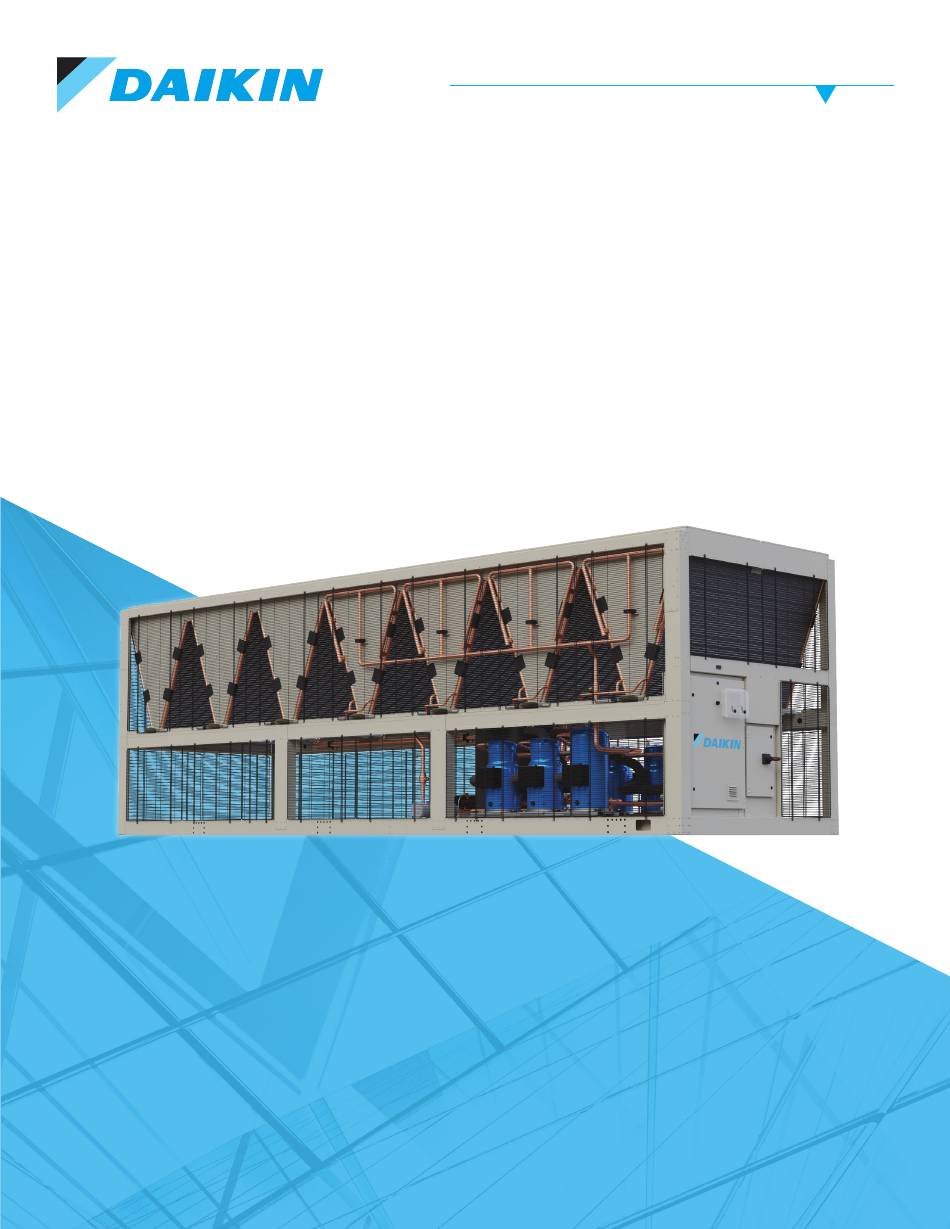

TRAILBLAZER
AIR-COOLED SCROLL CHILLERS
• MODEL AGZ, F VINTAGE
• 30 TO 230 TONS
• R-32 REFRIGERANT
©2024 DAIKIN APPLIED | (800) 432.1342
INSTALLATION, OPERATION & MAINTENANCE
AGZ-F
®
LEARN MORE AT DAIKINAPPLIED.COM
IOM 1359-1
NOVEMBER 2024
