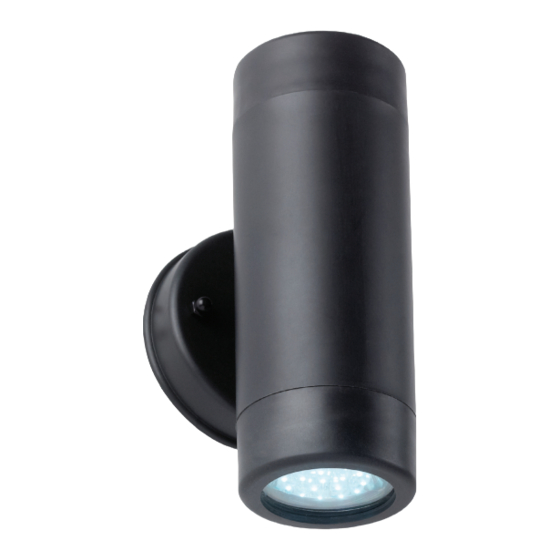

Saxby Lighting Icarus Twin Wall EL-40054 Instruction Leaflet

Commissioning

• Diagram C. Place the fitting over the back plate,
ensuring that the bolts in the back plate are aligned with
the holes in the front of the fitting. Replace the domed
nuts (3) to secure the fitting. Do not over tighten.
• Fit bulbs as detailed below.
• Replace the bulb covers (4).
• Replace fuse or circuit breaker and switch on. Your light
is now ready for use.

Fitting/replacing bulbs: Max. 2.5W GU10 COB

• When changing a bulb, always switch off at the mains
and allow the bulb to cool before handling.
• Always use the correct type and wattage bulb. Using the
incorrect wattage bulb will damage the bulb and ballast.
• Used bulbs should not be disposed of with household
We recommend cleaning with a soft dry cloth.

Recycling advice

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.

Safety information

For your safety, always switch off the supply before changing lightbulbs, or cleaning.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
This light source is protected by a shade. This part must be replaced immediately should the shade
become cracked or damaged. This fitting must not be used without the shade in place.
Replace Cracked Shade
www.saxbylighting.com
Diagram C.
(4)
(3)
waste. Please recycle where facilities exist.
• Gently pull the bulb out from the lampholder to remove.
Gently push new bulb into lampholder to replace.
Do not use solvents or abrasive cleaners as these could
damage the finish.
Iss.3 10022017
Saxby Lighting Ltd. LS9 0SE
Instruction leaflet
Icarus Twin Wall
EL-40054
