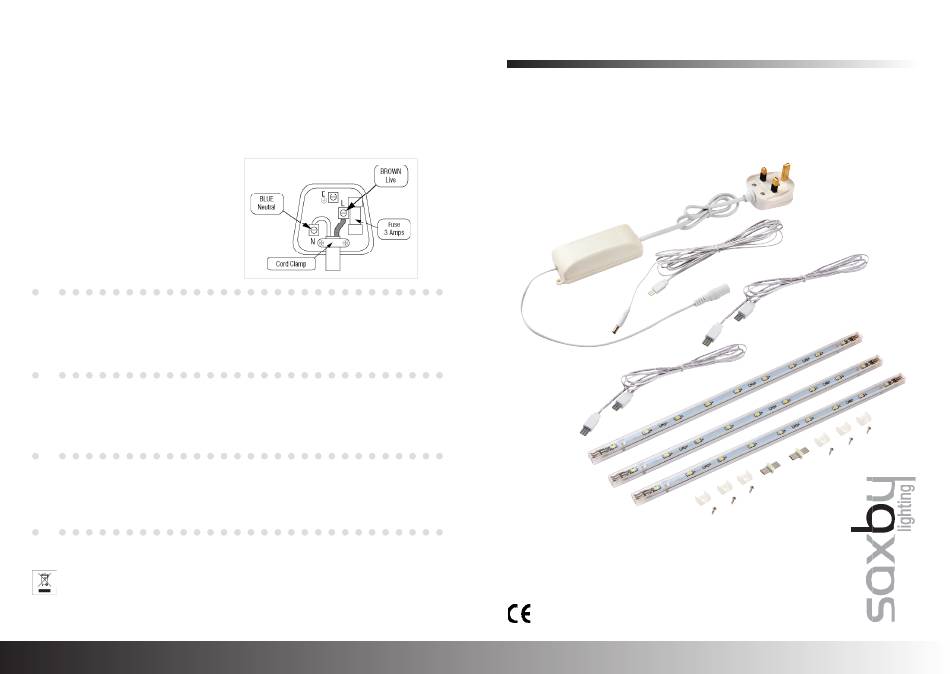

Wiring
This unit is double insulated and must not be
earthed.
• The appliance is fitted to a rewireable 3 pin plug
fitted with a 3 amp fuse. Should the fuse require
replacement, it must be replaced with a fuse rated at
3 amp and approved to BS1362.
• The power lead on the appliance can also be directly
wired to a fused outlet socket. The Brown wire must
be connected to the terminal marked L or coloured
red. The Blue wire must be connected to the
terminal marked N or coloured black. Use a 3 Amp
Fuse approved to BS1362.
• If the mains plug is unsuitable for the socket outlet
or is removed for any other reason, then the cut off
plug should be disposed of safely to prevent the
hazard of electric shock.
Commissioning
• Plug in and test.
Fitting/replacing bulbs
• Replacement LED units can be purchased
(70256/70414)
• Always switch off or disconnect from the mains when
cleaning the product.
• We recommend cleaning with a soft dry cloth. Never
Recycling advice
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Safety information
For your safety, always switch off the supply before cleaning.
www.saxbylighting.com
• There is a danger of electric shock if the cut off plug
is inserted into any 13 amp socket outlet.
• The wires in the mains lead on this appliance are
coloured in accordance with the following code:
Blue – Neutral
Brown – Live
• Use a 3 Amp Fuse approved to BS1362.
• Your lights are now ready for use.
If damage occurs the part should be scrapped.
use scourers, abrasives or chemical cleaners.
• Do not allow moisture to come into contact with
electric parts.
Iss.3 20062016
Saxby Lighting Ltd. BH23 3PE
Instruction leaflet

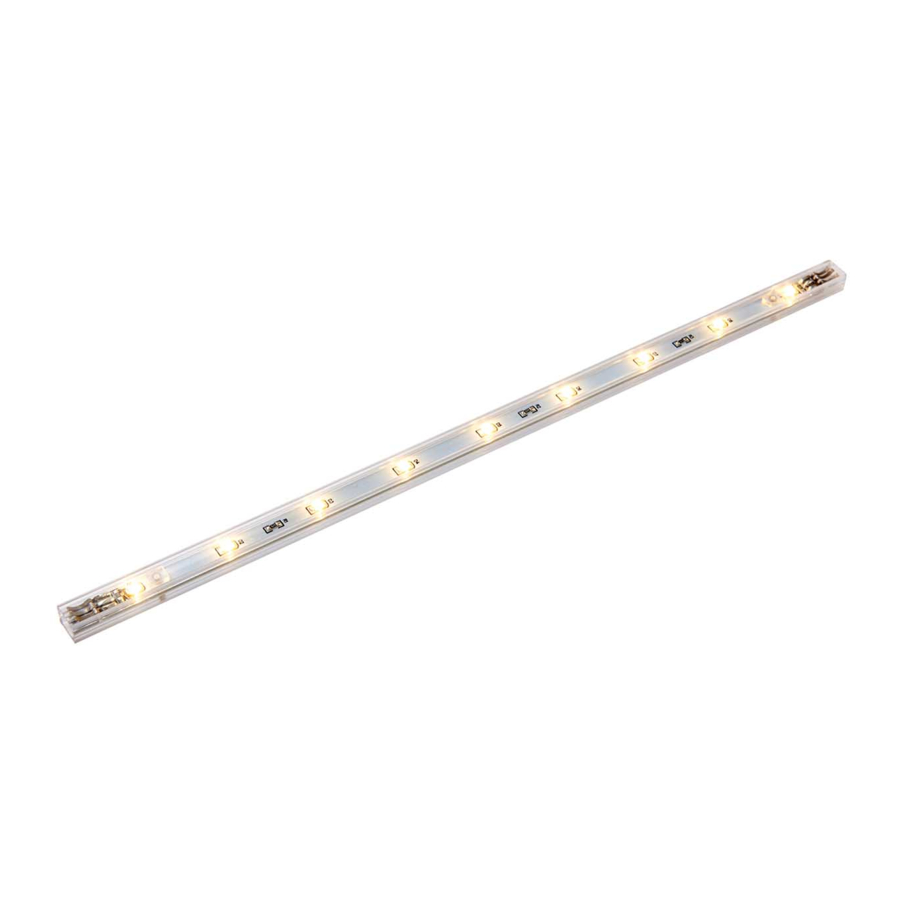

Eris Undercabinet Kit
70255, 70256, 70413, 70414
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Saxby Lighting Eris
Summary of Contents for Saxby Lighting Eris
- Page 1 Wiring Instruction leaflet This unit is double insulated and must not be • There is a danger of electric shock if the cut off plug earthed. is inserted into any 13 amp socket outlet. Eris Undercabinet Kit • The appliance is fitted to a rewireable 3 pin plug • The wires in the mains lead on this appliance are fitted with a 3 amp fuse. Should the fuse require coloured in accordance with the following code: replacement, it must be replaced with a fuse rated at Blue – Neutral 3 amp and approved to BS1362. 70255, 70256, 70413, 70414 Brown – Live • The power lead on the appliance can also be directly • Use a 3 Amp Fuse approved to BS1362. wired to a fused outlet socket. The Brown wire must be connected to the terminal marked L or coloured red. The Blue wire must be connected to the terminal marked N or coloured black. Use a 3 Amp Fuse approved to BS1362. • If the mains plug is unsuitable for the socket outlet...
- Page 2 Installation Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Please retain these instructions for future reference. • Lay out/ measure the positions of the LED strips • Connect the 2.6m link cable to the strip assembly Warning as desired. Ensure you safely route cables to avoid and the in-line LED driver. Ensure the connections accident or damage occurring. Cables can be taped are tight. to mounting surface after installation. This product is Double Insulated and does Do not exceed the LED driver load. This is a self not require connection to an Earth circuit. contained unit and cannot be extended. The triple kits • See Fig. 1. Connect the strips by pushing the ends (70255/70413) can connect up to a maximum of 5 together by supplied strip connector (A) or link The LED units are rated Class 3, Safety heads (from add on kits - 70256/70414).
