Saxby Lighting Tango Instruction Manual

Wiring
Having correctly identified the wiring from your existing light fitting, pull the mains wire through the hole and connect to the
quick fit connection block inside the product in the following way:
SUPPLY
NEUTRAL
EARTH (GREEN/YELLOW)
SWITCHED LIVE
Fitting / Replacing Bulbs
Always use the correct type and wattage bulb. Do not exceed the wattage stated or use a different shape bulb from that
indicated on the fitting.
When changing a bulb, always switch off at the mains and allow the old bulb to
cool down before handling. The entire unit gets hot whilst on for a period of time.
Dispose of used bulbs carefully and responsibly.
Technical data
Supply Bulb
220-240 V~, 50 Hz
Voltage: Type:
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
This is a Class 1 product and must be earthed.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is suitable for dimming.
This product is rated at IP44.
44
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
V6 27/02/2023
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
LIGHT FITTING
Check that...
BLUE (N)
You have correctly identified the wires.
GREEN/YELLOW
The connections are tight.
No loose strands have been left out of
BROWN (L)
the connection block.
Max. 9.2W LED E27 GLS
Max. 9.2W LED E27 GLS (required)
Instruction manual

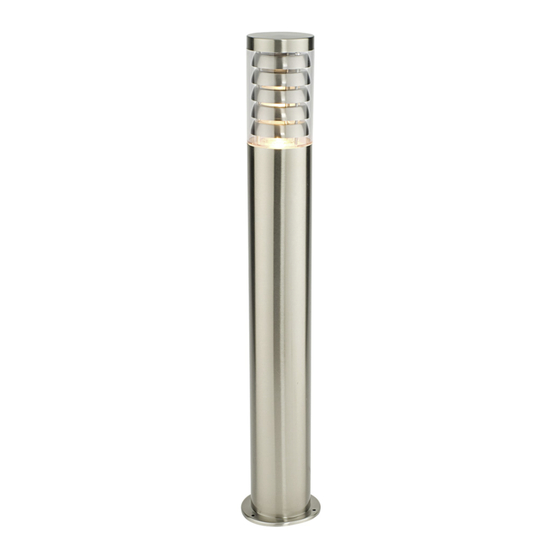

Tango
13922, 13923, 81012
81012
www.saxbylighting.com
13923 13922
