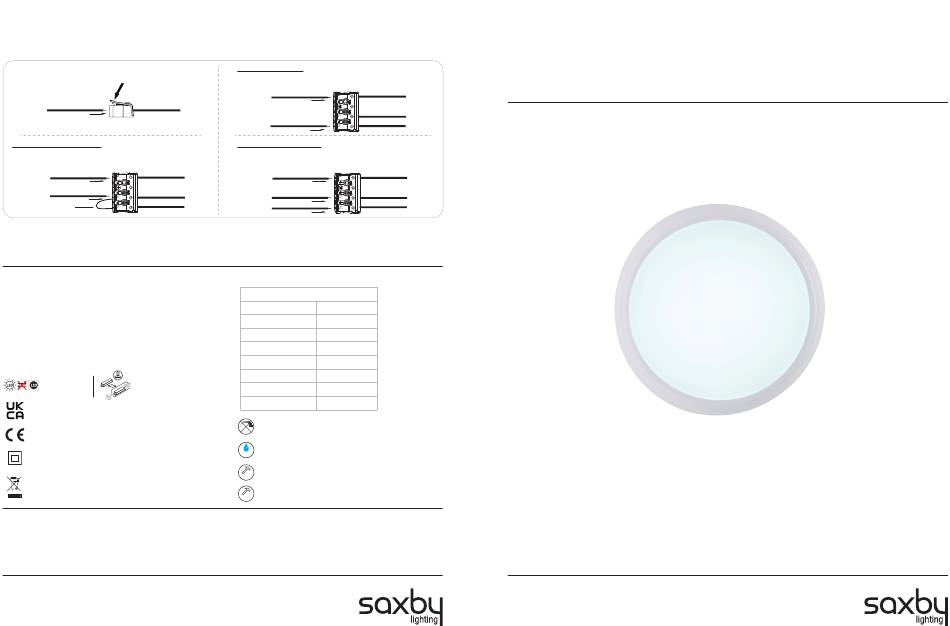

Saxby Lighting HeroPro CCT Emergency Instruction Manual

Wiring

• This product is double insulated and must not be earthed. If there are
any incoming earth cables, they must be joined together and well
insulated with good quality insulation tape. This is to ensure earth
continuity throughout your property.
PUSH DOWN
SUPPLY LIGHT FITTING
INSERT CABLE
Maintained (Unswitched) Wiring:
The product is on permanently and comes on during a power failure
SUPPLY LIGHT FITTING
NEUTRAL
SWITCH LIVE
LINK CABLE

Check that...

• You have correctly identified the wires. • No loose strands have been left out of the connection block
• The connections are tight.

Technical data

Supply
220-240 V~, 50 Hz
Voltage:
Bulb
95540----18/14/9W LED module (SMD) CCT, 3000/4000/6000K
Type:
103935---12/9/6W LED module (SMD) CCT, 3000/4000/6000K
103938---28/24/20W LED module (SMD) CCT, 3000/4000/6000K
This product contains a light source of energy efficiency class D.
Replaceable control
Non-replaceable
light source gear by a professional
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require
connection to an Earth circuit.
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.

Care and Safety

We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
For further information, please visit https://www.lighting-info.co.uk/95540
V4 15/12/2022
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
• Having correctly identified the wiring from your existing light fitting, connect to
the quick fit connection block in the following way, using the supplied link
cables where necessary.
Non-Maintained Wiring:
The product is normally off and comes on during a power failure
SUPPLY
NEUTRAL
PERMANENT LIVE
Maintained (Switched) Wiring:
The product is used as a normal light - switch on/off, light turns on/off.
Comes on during a power failure.
SUPPLY
BLUE(N) NEUTRAL
SWITCH LIVE
BROWN(L)
BLACK(L)
PERMANENT LIVE
Battery parameters:
Lumens 120Lm in EM mode
Duration 3 hours (180 Minutes)
Operating Temperature 0ºC - 50ºC
Maximum Operating Humdit 90%
Change over time Approximately 1s
Battery Specification LifePO4 3.2V 1500mAh
Battery Charge Time 24 Hours
Battery warranty 2 years
This product is not suitable for dimming.
This product is rated at IP65
65
IP
This product is rated at IK10 for 95540, 103935.
10
IK
This product is rated at IK08 for 103938.
08
IK
Instruction manual

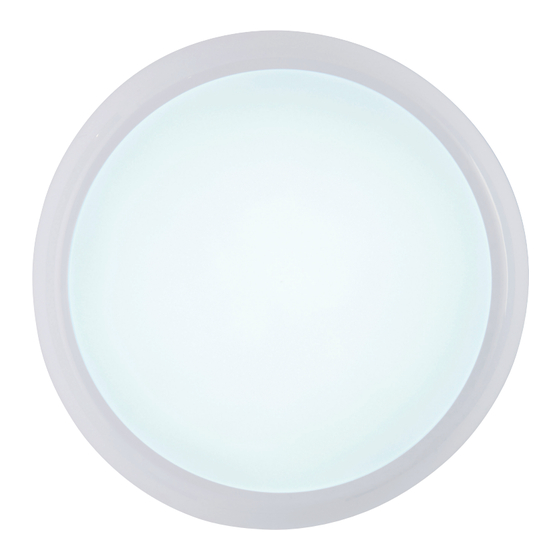

HeroPro CCT Emergency
95540, 103935, 103938
LIGHT FITTING
BLUE(N)
BROWN(L)
BLACK(L)
LIGHT FITTING
BLUE(N)
BROWN(L)
BLACK(L)
