Saxby Lighting IkonPRO CCT Instruction Manual

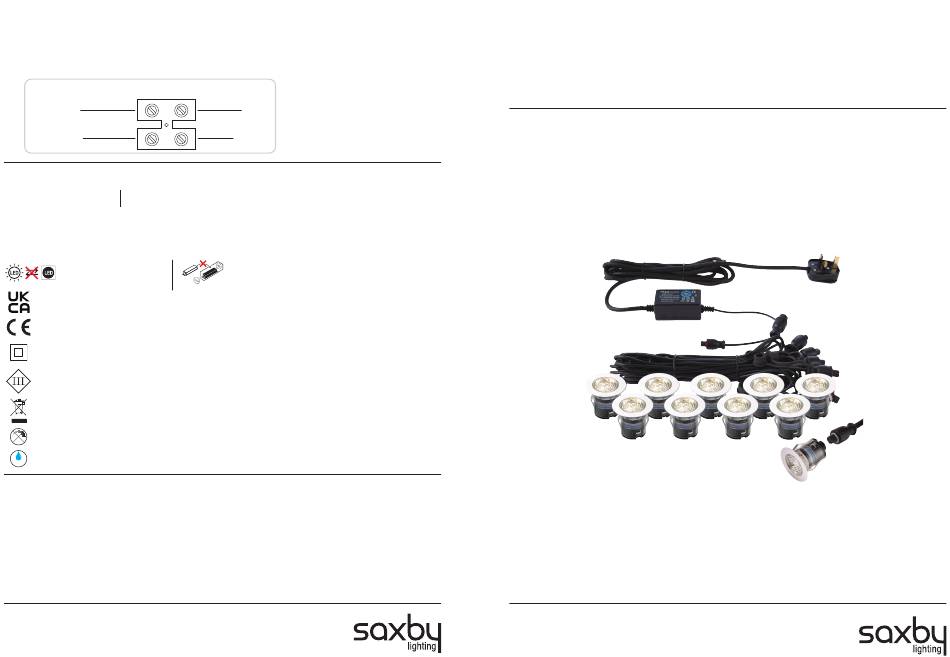

Wiring
If not using the supplied plug then the product must be wired to an IP67 (or higher rated) terminal block
(recommended terminal block ref. 90131/90132).
Having correctly identified the wiring from your existing light fitting, connect to the approved outdoor rated external terminal
block in the following way:
SUPPLY
NEUTRAL
SWITCHED LIVE
Technical data
Supply
220-240V~, 50Hz Output: 12V DC 15W Max. Constant voltage
Voltage:
73347 / 73348 / 73349 / 99765----10 x 0.75W LED module, 3000K / 4000K
Bulb
Type:
76615 / 76616 / 76617-------------10 x 0.75W LED module, 6500K / Blue
These product contains a light source of energy efficiency class G.
Non-replaceable light source
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Class III product - designed to be supplied from a SELV
(Separated or Safety Extra-Low Voltage) power source.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP67.
67
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
To prolong the life and condition of the product, it is recommended that periodically it is cleaned using a
soft cloth followed by the application of a light coating of oil, such as WD40.
Do not clean the units with a pressure washer.
Live Voltages may be present in the transformer even when turned off or when completely disconnected.
For your safety, always switch off the supply before maintaining the system.
For further information, please visit https://www.lighting-info.co.uk/73347
V3 19/11/2021
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Check that...
LIGHT FITTING
You have correctly identified the wires.
BLUE (N)
The connections are tight.
No loose strands have been left out of the
BROWN (L)
connection block.
Non-replaceable control gear
Instruction manual

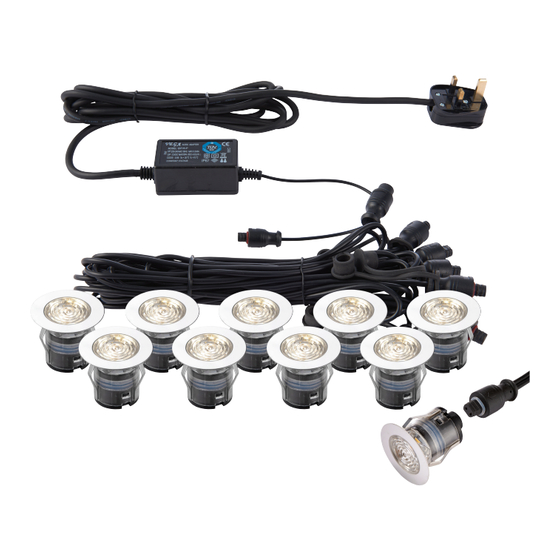

IkonPRO CCT LED Kit
73347, 73348, 73349, 76615, 76616, 76617, 99765
