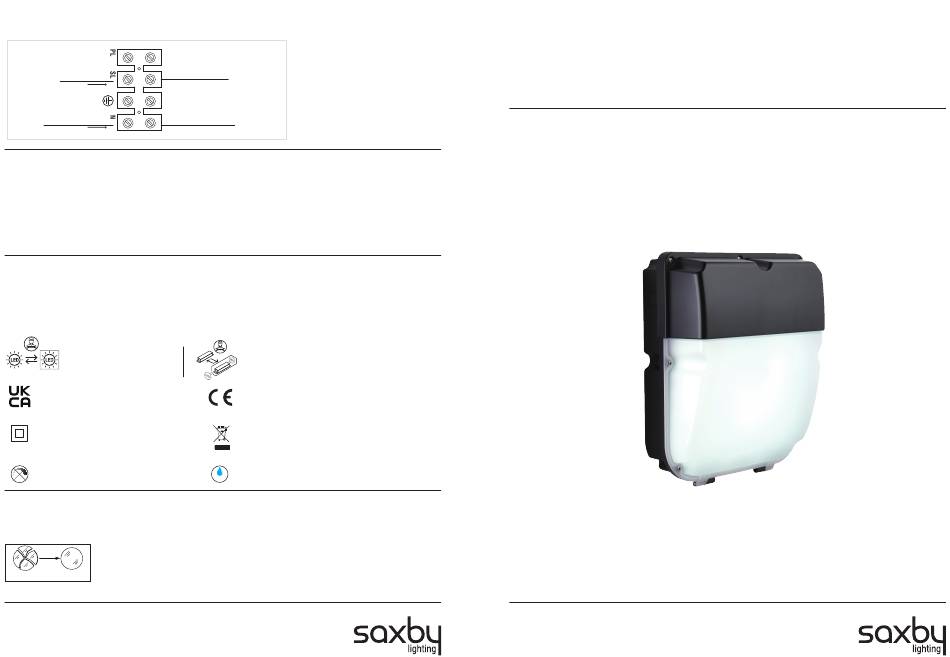

Saxby Lighting Lucca CCT Instruction Manual

Wiring
Having correctly identified the wiring from your existing light fitting, connect to the connection block in the following way:
SUPPLY
SWITCHED LIVE
NEUTRAL
Photocell Sensor (only for 114571)
• This product is fitted with a photocell.
• The light will automatically switch on when the ambient light level drops below 30 lux and will automatically switch off
when it reaches 70 lux.
• The photocell is located on the right hand side of the casing. To avoid nuisance triggering, the photocell should be
aimed a minimum of 12m away from heat sources, such as BBQ's, Air-Conditioners, other outside lighting, moving
cars and flue vents or reflective surfaces such as smooth white walls or swimming pools.
Technical data
Supply
220-240 V~, 50 Hz
Voltage:
Bulb
20W/30W LED (SMD) CCT, 3000K/4000K/6000K This product contains a light source of energy efficiency class D.
Type:
Replaceable (LED only) light
source by a professional
Conformity with all relevant UKCA
Directive requirements.
The power supply is Double Insulated
and does not require connection to an
Earth circuit.
This product is not suitable for dimming.
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
This light source is protected by a shade. This part must be replaced immediately should the shade
become cracked or damaged. This fitting must not be used without the shade in place.
Replace Cracked Shade
For further information, please visit https://www.lighting-info.co.uk/114569
V118/09/2024
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
LIGHT FITTING
Check that...
BROWN (L)
• You have correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of
BLUE (N)
the connection block.
Replaceable control gear by a
professional
Conformity with all relevant EC
Directive requirements.
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or local store for recycling advice.
This product is rated at IP65.
65
IP
Instruction manual
Lucca CCT
114569, 114571
