Saxby Lighting Tribeca CCT Instruction Manual

Wiring
Having correctly identified the wiring from your existing light fitting and connect to the connection block inside the product
in the following way:
SUPPLY
NEUTRAL
EARTH
SWITCHED LIVE
Technical data
Supply
220-240 V~, 50 Hz
Voltage:
Bulb
8W LED module (SMD), CCT 3000/4000/6000K
Type:
This product contains a light source of energy efficiency class E.
Non-replaceable light source
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
This product is Class 1, must be connected to earth.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP54.
54
IP
This product is rated at IK08.
08
IK
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
For further information, please visit https://www.lighting-info.co.uk/91801
V3 15/12/2023
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Check that...
LIGHT FITTING
• You have correctly identified the wires.
BLUE (N)
• The connections are tight.
• No loose strands have been left out of
GREEN / YELLOW
the connection block.
BROWN (L)
• The lid has been refitted on to the
connection block case.
Non-replaceable control gear
Instruction manual

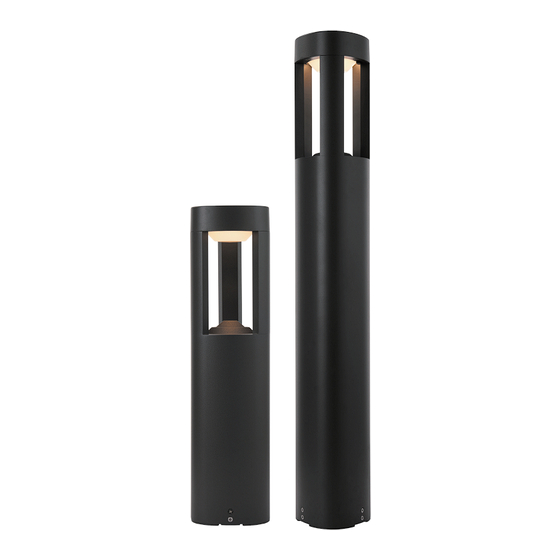

Tribeca CCT
EL- 40075, EL- 40076
EL- 40075
www.saxbylighting.com
EL- 40076
