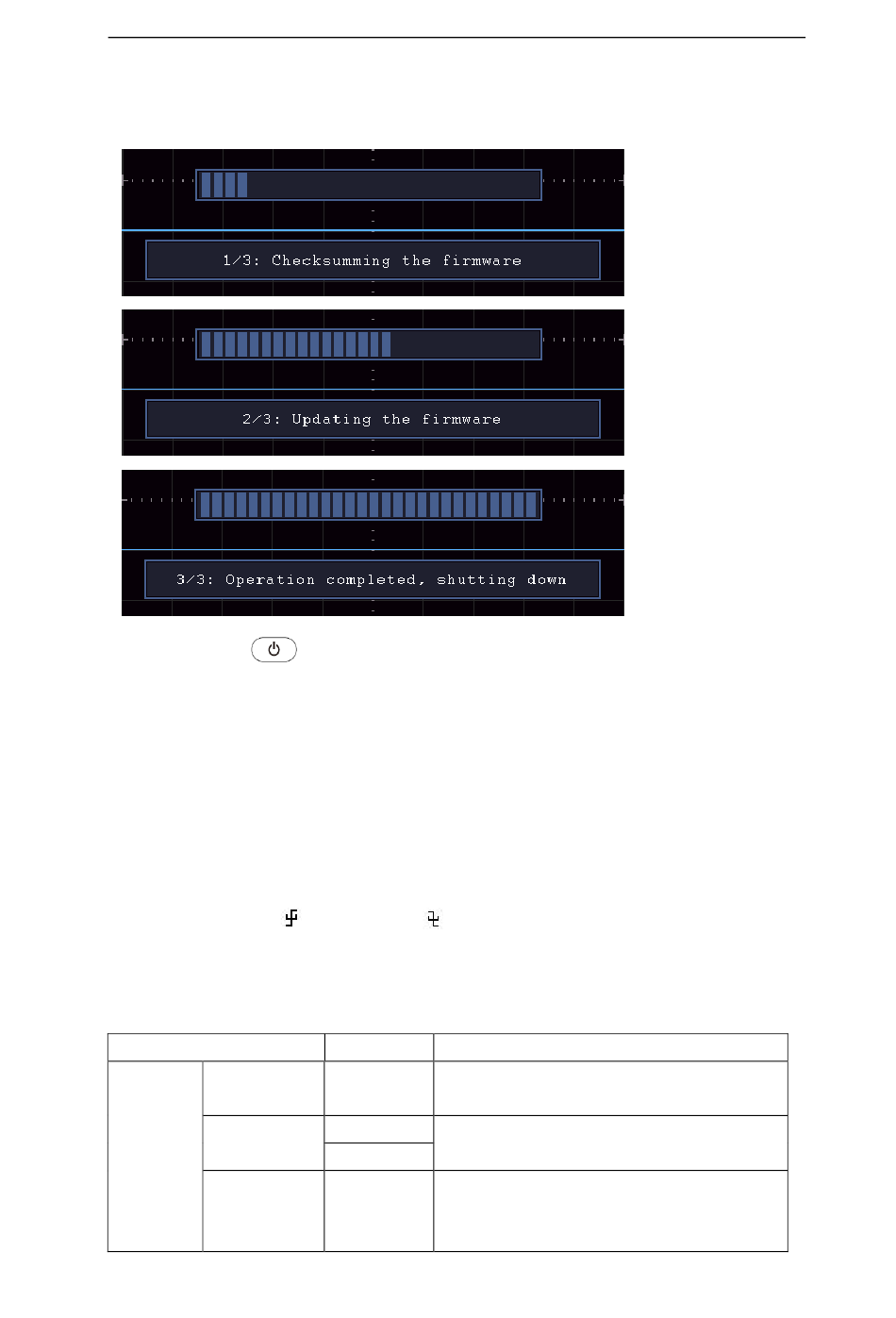

In the bottom menu, select Start again, the interfaces below will be displayed in
7.
sequence. The update process will take up to three minutes. After completion, the
instrument will be shut down automatically.
Long press the
8.

How to Measure Automatically

Push the Measure button to display the menu for the settings of the Automatic
Measurements. At most 8 types of measurements could be displayed on the bottom
left of the screen.
The oscilloscopes provide 30 parameters for auto measurement, including Period,
Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot,
Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty
Cycle, Delay A→B , Delay A→B , Cycle RMS, Cursor RMS, Screen Duty,
Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle
Area.
The "Automatic Measurements" menu is described as the following table:
Function Menu
Meas Type
(left menu)
Source
Add
Add
4.Advanced User Guidebook
button to power on the instrument.
Setting Description
Select the measure types
CH1
Select the source
CH2
Add the selected measure types (shown
at the left bottom, you could only add 8
types at most)
