8. Power on/off
Backlight of this button:
Red light: The oscilloscope is turned off (disconnected from AC Power or battery);
Green light: The oscilloscope is turned on (powered by AC Power or battery).

Front Panel Menu Buttons

Rear Panel

13
12
11

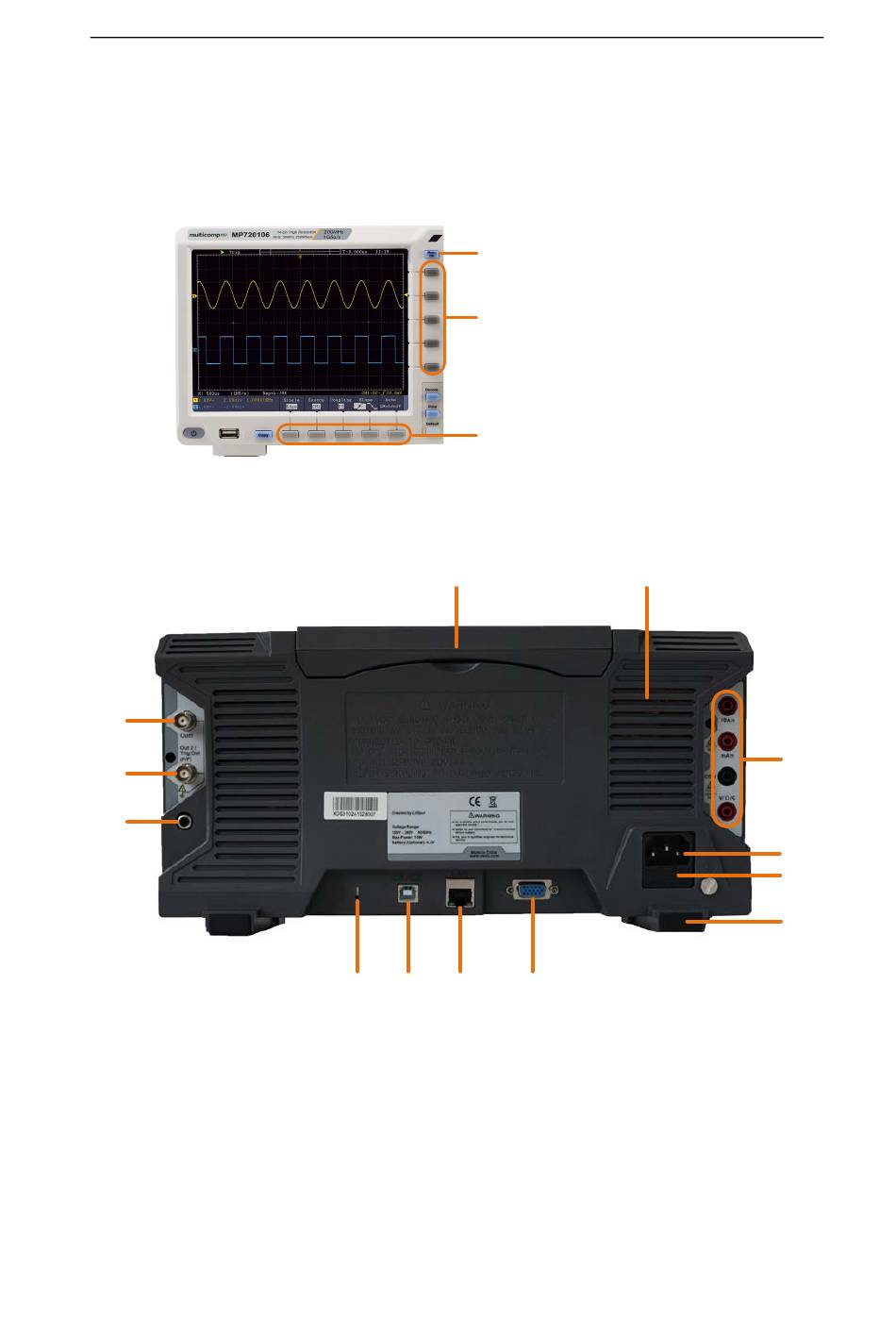

1. Handle
2. Air vents
3. Input terminals of multimeter (optional)
4. AC power input jack
5. Fuse
6. Foot support: Adjust the tilt angle of the oscilloscope.
7. VGA port: To connect the oscilloscope with a monitor or a projector as VGA output
(optional).
3.Junior User Guidebook
Remove the left and right menu
Select the right menu item
Select the bottom menu item
Figure 3-2 Menu Buttons
1
10 9 8
Figure 3-3 Rear Panel
6
2
7
3
4
5
6
