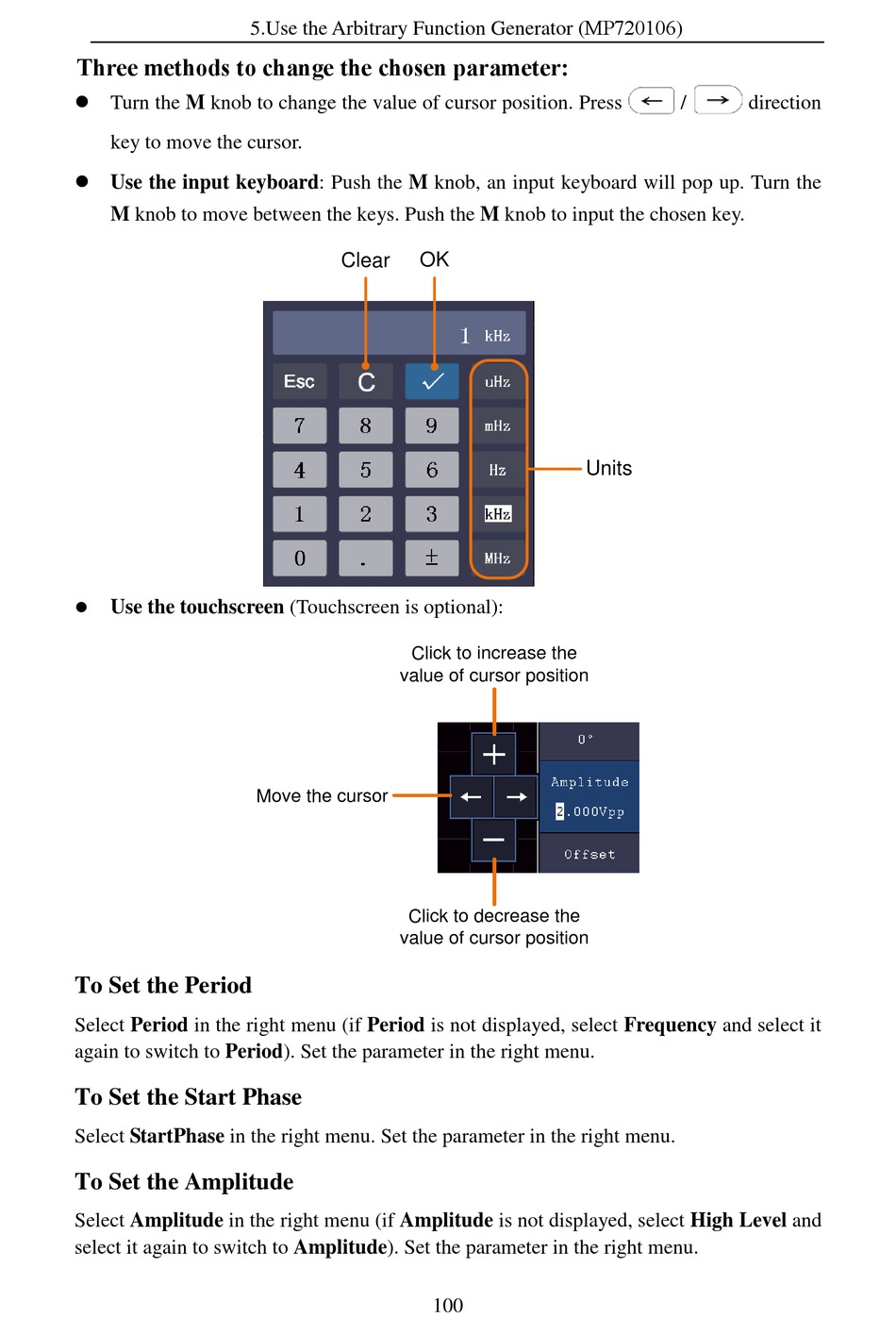

Three methods to change the chosen parameter:
 Turn the M knob to change the value of cursor position. Press
key to move the cursor.
 Use the input keyboard: Push the M knob, an input keyboard will pop up. Turn the
M knob to move between the keys. Push the M knob to input the chosen key.

Use the touchscreen (Touchscreen is optional):

To Set the Period

Select Period in the right menu (if Period is not displayed, select Frequency and select it
again to switch to Period). Set the parameter in the right menu.

To Set the Start Phase

Select StartPhase in the right menu. Set the parameter in the right menu.

To Set the Amplitude

Select Amplitude in the right menu (if Amplitude is not displayed, select High Level and
select it again to switch to Amplitude). Set the parameter in the right menu.
5.Use the Arbitrary Function Generator (MP720106)
Clear OK
Click to increase the
value of cursor position
Move the cursor
Click to decrease the
value of cursor position
Units
