7.2.

Connecting temperature sensors and condensate drain heating

Connected on delivery:
Sensors TEB and TU1 are connected up to the junction box;
Connected on delivery, optional equipment:
Sensor TFK is completely connected up to the junction box.
Cable powering the condensate heating HC is connected to the connector.
Connect:
Lead the cables TEA and TU2 with temperature sensors from the junction box into their intended
position;
Connect, optional equipment:
Connect the black connector powering the HC.
In units without control system, temperature sensors are not included in the delivery package.
TU2
TEA

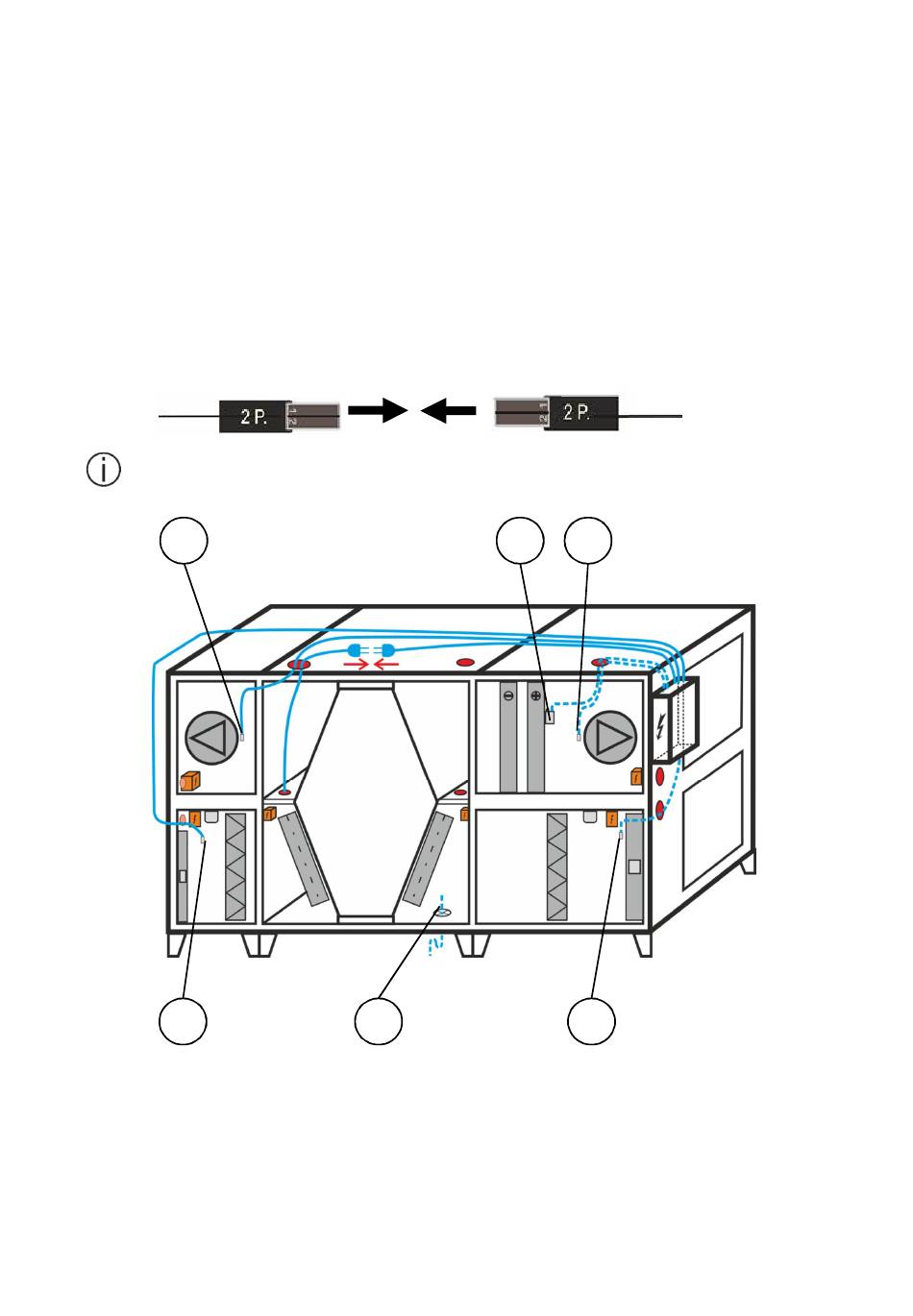

Connection of temperature sensors and condensate drain heating
black
HC
black
TFK
TU1
TEB
34
