Airflow Duplexvent MULTI-N Instruction Manual page 24

Units - outdoor version -
Hide thumbs
Table of Contents

Advertisement

2
3
1
2
3
1

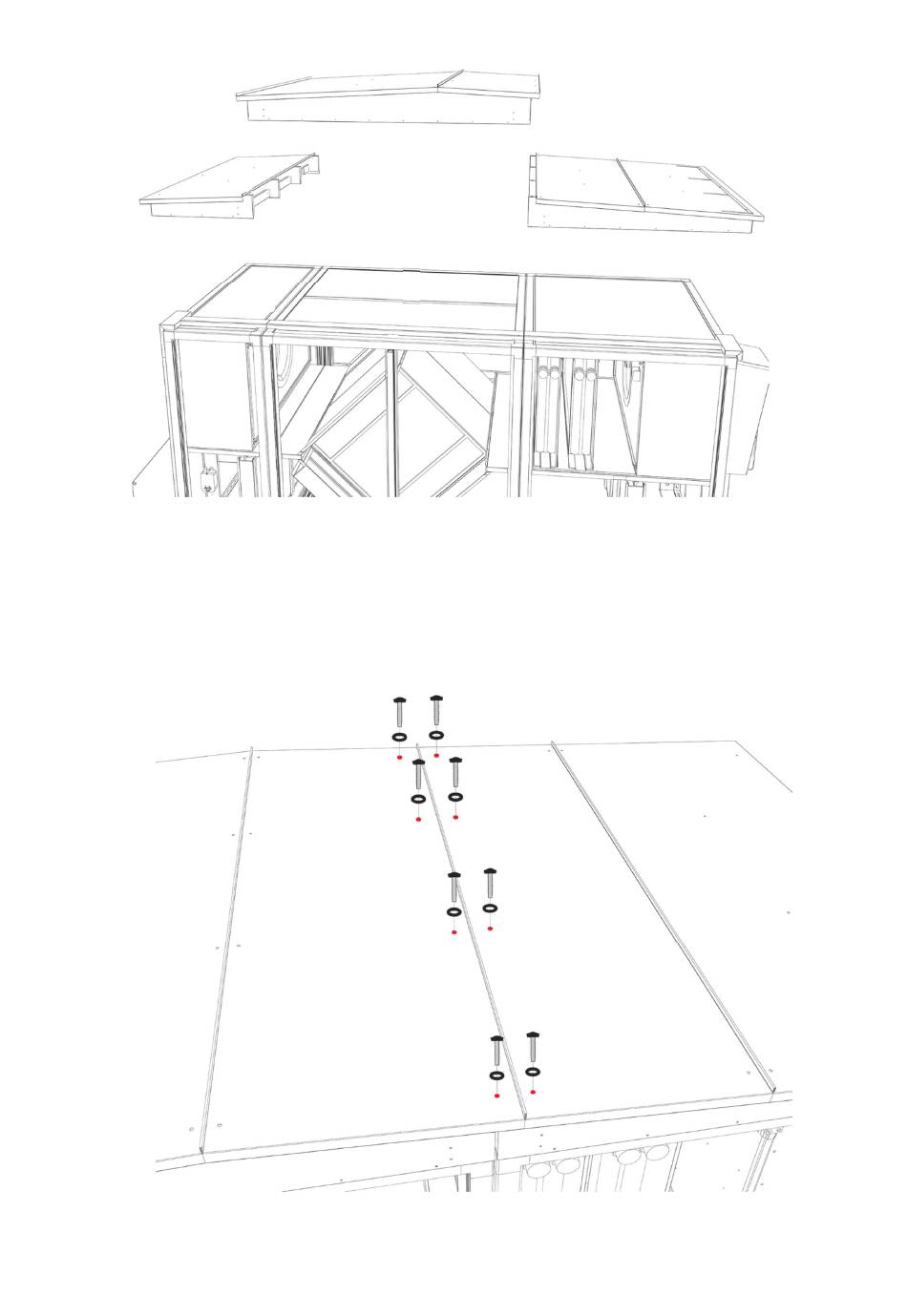

Roof blocks on the units 12100 Basic-N and 15100 Basic-N,
7500 MultiEco-N and 10000 Multi-N
4. Fix the roof blocks together, use 8 screws M6, place waterproof washers (part of delivery) under
the screws.
24
