Airflow Duplexvent MULTI-N Instruction Manual page 5

> 5m
1.
4x
8x M6
3.

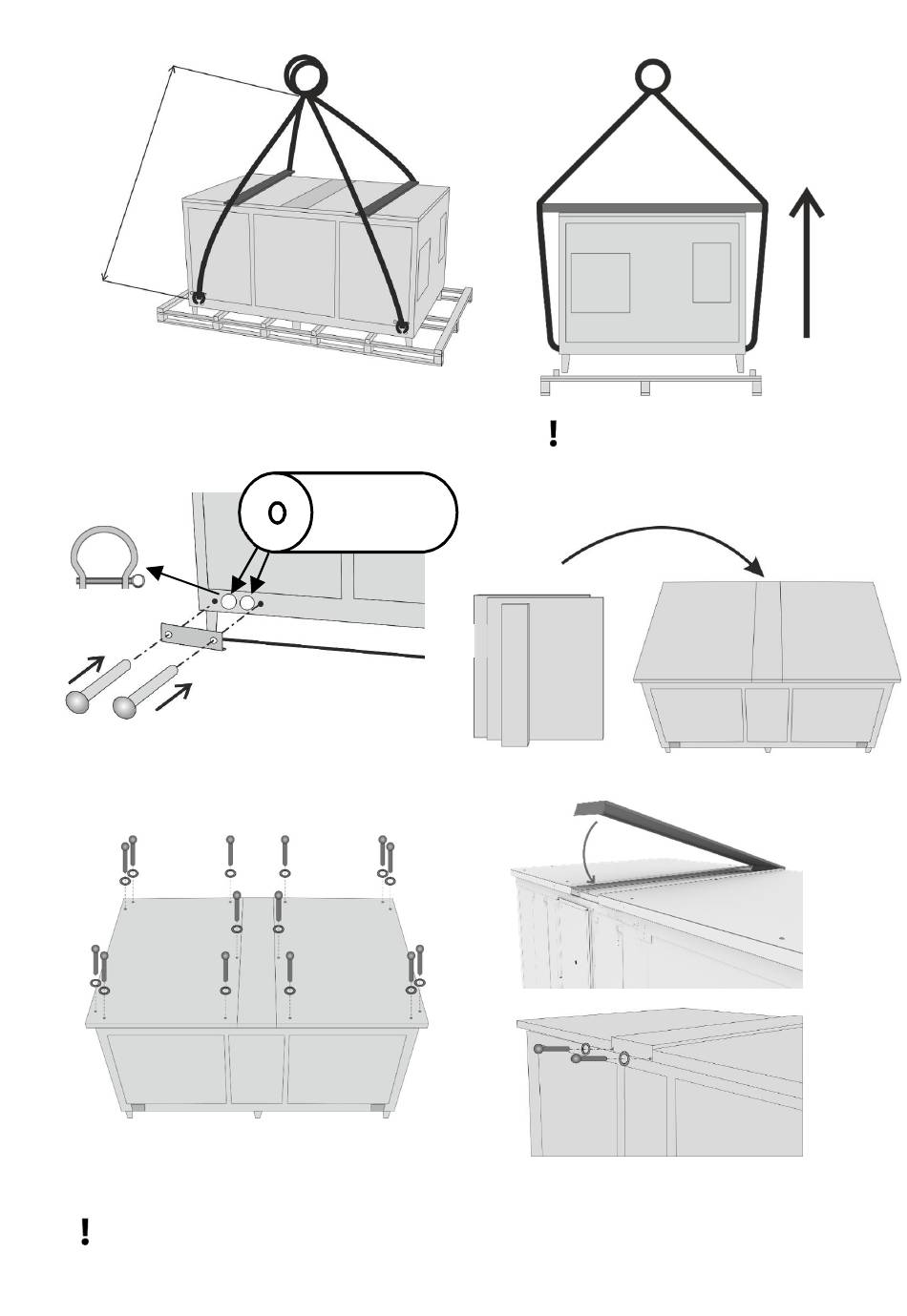

Upon positioning the unit fill in the shackle holes
with a mounting foam. Fill in 8 holes altogether.
Then screw the blind flanges (part of delivery).
14x M8
Use waterproof washers (part of delivery)
under the screws.
Fit roof cover sheets right after placing the unit in the final installation position. Protect the unit from
rough weather (rain, snow) until the unit assembly is complete.
Mounting foam
2.
The bars must be wider
than the unit
1 2 3
2x M6
1 2 3
