Airflow Duplexvent MULTI-N Instruction Manual page 15

The door is attached to the unit by plastic lockers. Depending on which lockers you loosen, you can
open the door to the right, to the left or loosen the door completely and pull the door away.

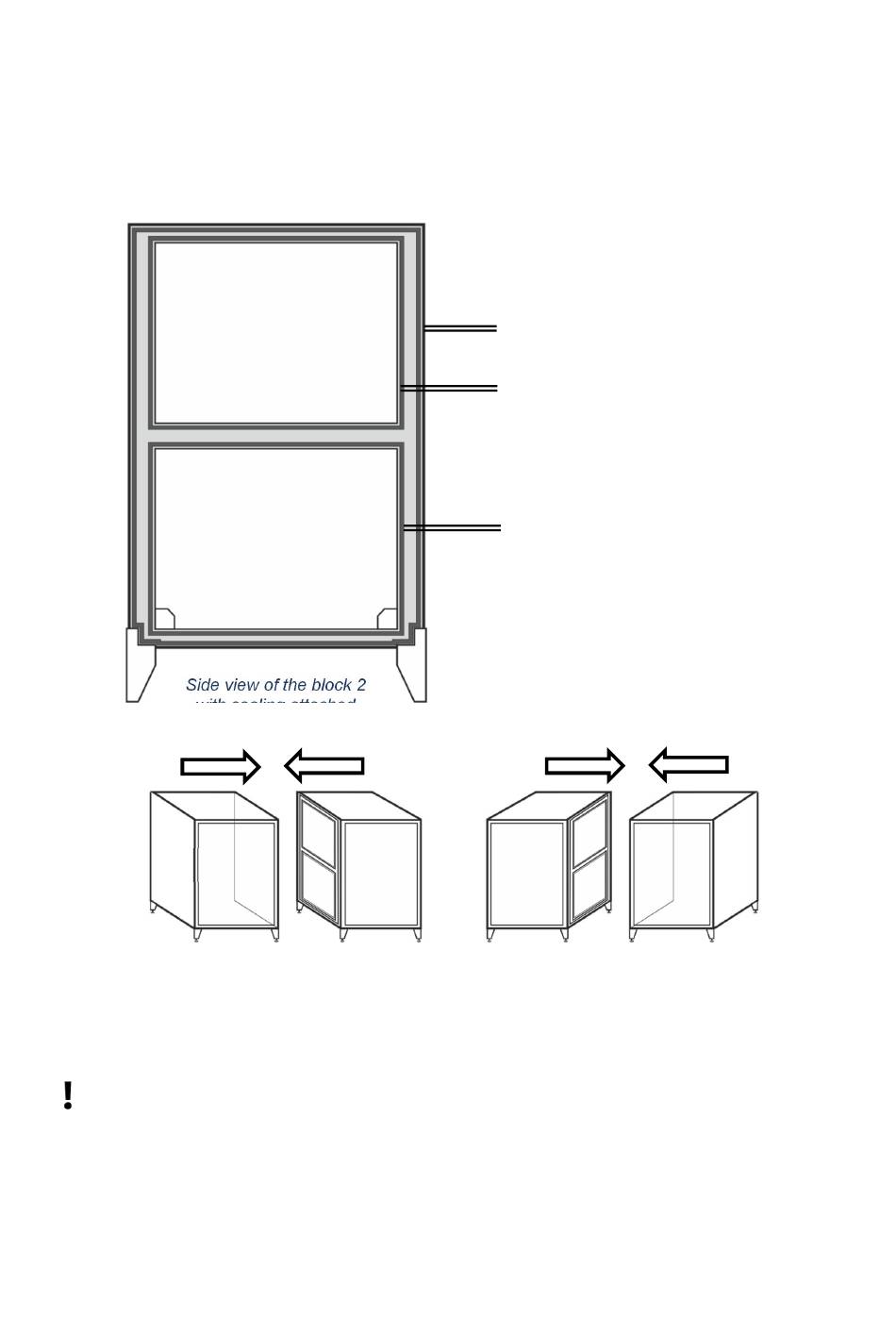

4. Make sure that the sealing on the middle block 2 is complete on the side both towards the blocks
1 and 3:
a. Sealing all around the block;
b. Sealing all around the top inlet of the block
c. Sealing all around the bottom inlet of the block
Side view of the block 2
with sealing attached
3
5. Place the blocks next to each other and make sure they are all levelled. Adjust the stand feet as
needed. Using the spirit level make sure that the blocks 1, 2 and 3 are levelled in all three axes x,
y and z.
Open the door only after making the blocks even at least in the axes x and y. Failing to do
so may cause irreversible bending of the door.
2
Putting blocks 1, 2 a 3 together
Sealing all around the block
Sealing all around the top
inlet of the block
Sealing all around the bottom
inlet of the block
1
2
15
