Connecting Fans - Airflow Duplexvent MULTI-N Instruction Manual

Rear view
1
2
Key:
1. Water pump *
2. Mixing valve *
*) Optional equipment

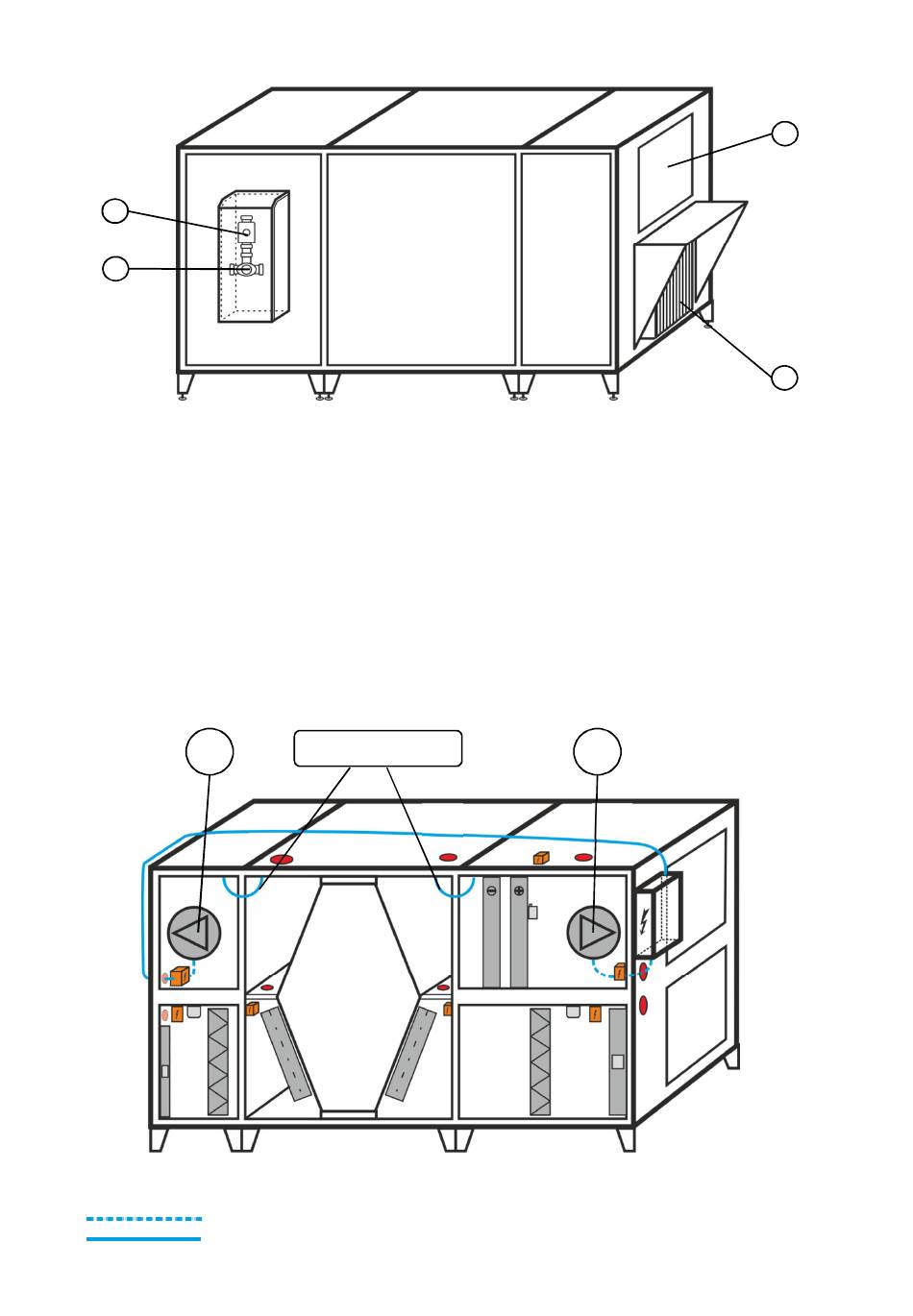

2.7.3. Connecting fans

Connected on delivery:
·
Fan Me is completely connected up to the junction box.
·
Fan Mi is connected to wiring box.
Connect:
·
Lead the cable Mi with the working voltage 400V from the junction box into the wiring box.
·
Connect the blocks 1 with 2 and subsequently 2 with 3 by green-yellow grounding wires.
Mi
= cable comes connected on delivery
= cable is to be connected
1
3. Exhaust (extract air)
4. Intake (supply air) with droplet eliminator *
Grounding wires
3
Connection of fans
2 3
Me
2
1
3
4
