Compact Outdoor Units Basic-N - Airflow Duplexvent MULTI-N Instruction Manual

Multi Eco-N meet requirements of Commission Regulation (EU) No. 1253/2014 (Ecodesign) in the
defined working area.
1
10 11 12

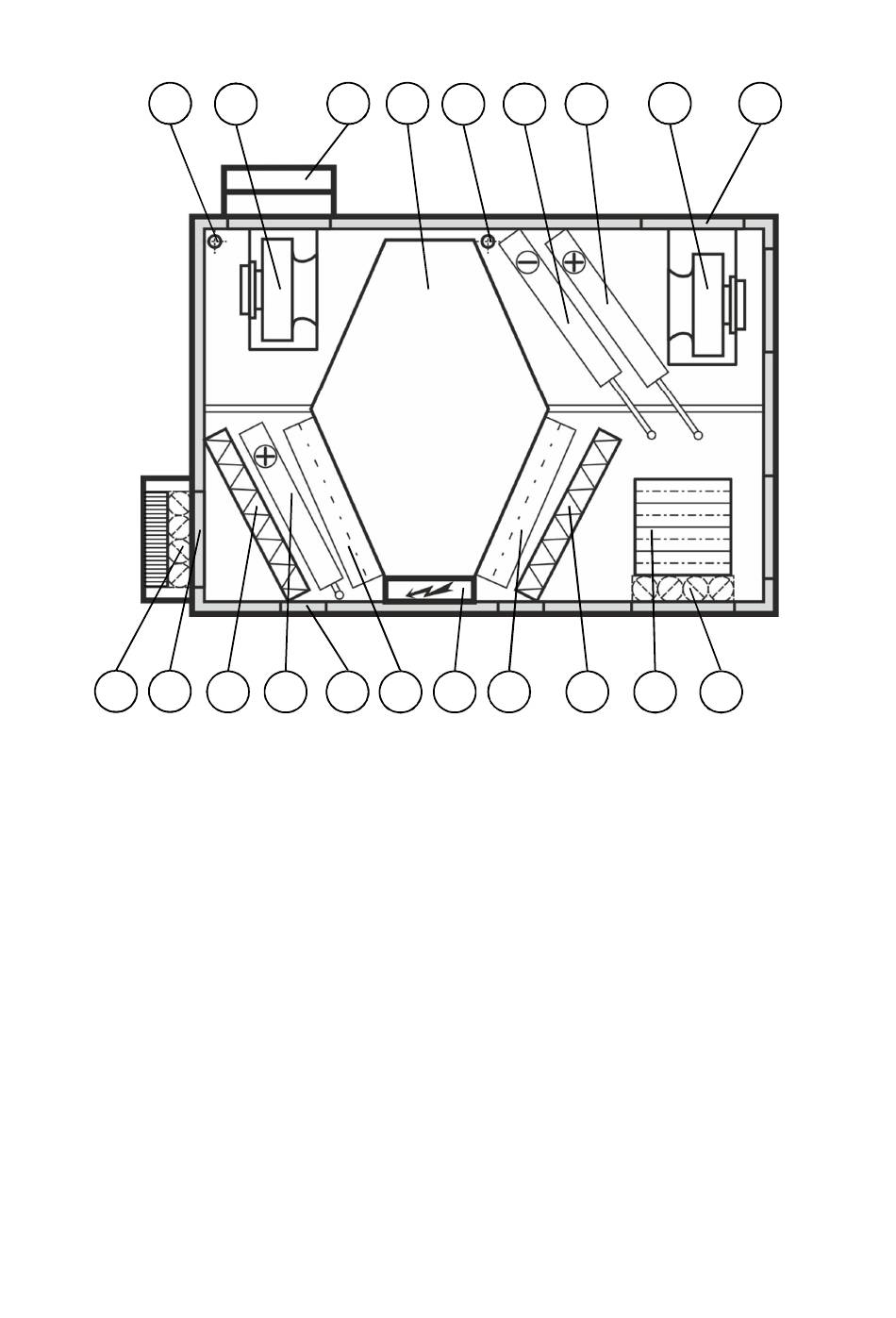

Key:
1. Heated condensate drain
2. Exhaust fan
3. Exhaust (extract air)
4. Heat exchanger
5. Condensate drain
6. Water cooling / direct evaporator
7. Water / electrical heating
8. Supply fan
9. Exhaust (supply air)
10. Intake flap (supply air)
2.4.

Compact outdoor units Basic-N

Duplexvent 1400 to 10100 Basic are new generation of versatile ventilation units with cross flow heat
recovery exchanger. The units are intended for outdoor (rooftop) installation; they are used for
comfortable ventilation, hot-air heating and cooling in small facilities, shop floors, stores, schools,
restaurants, shops, sports and industrial halls. The units are designed solely for applications that do
not fall within the scope of the Commission Regulation (EU) No. 1253/2014 (Ecodesign).
3
2
13 14 15
4 5 6
16 17
11. Intake (supply air)
12. Supply air filter
13. Water / electrical preheating
14. Inspection area for filter exchange
15. Bypass flap
16. Junction box
17. Circulation flap
18. Exhaust air filter
19. Intake (extract air)
20. Intake flap (extract air)
7 8
18 19 20
9
