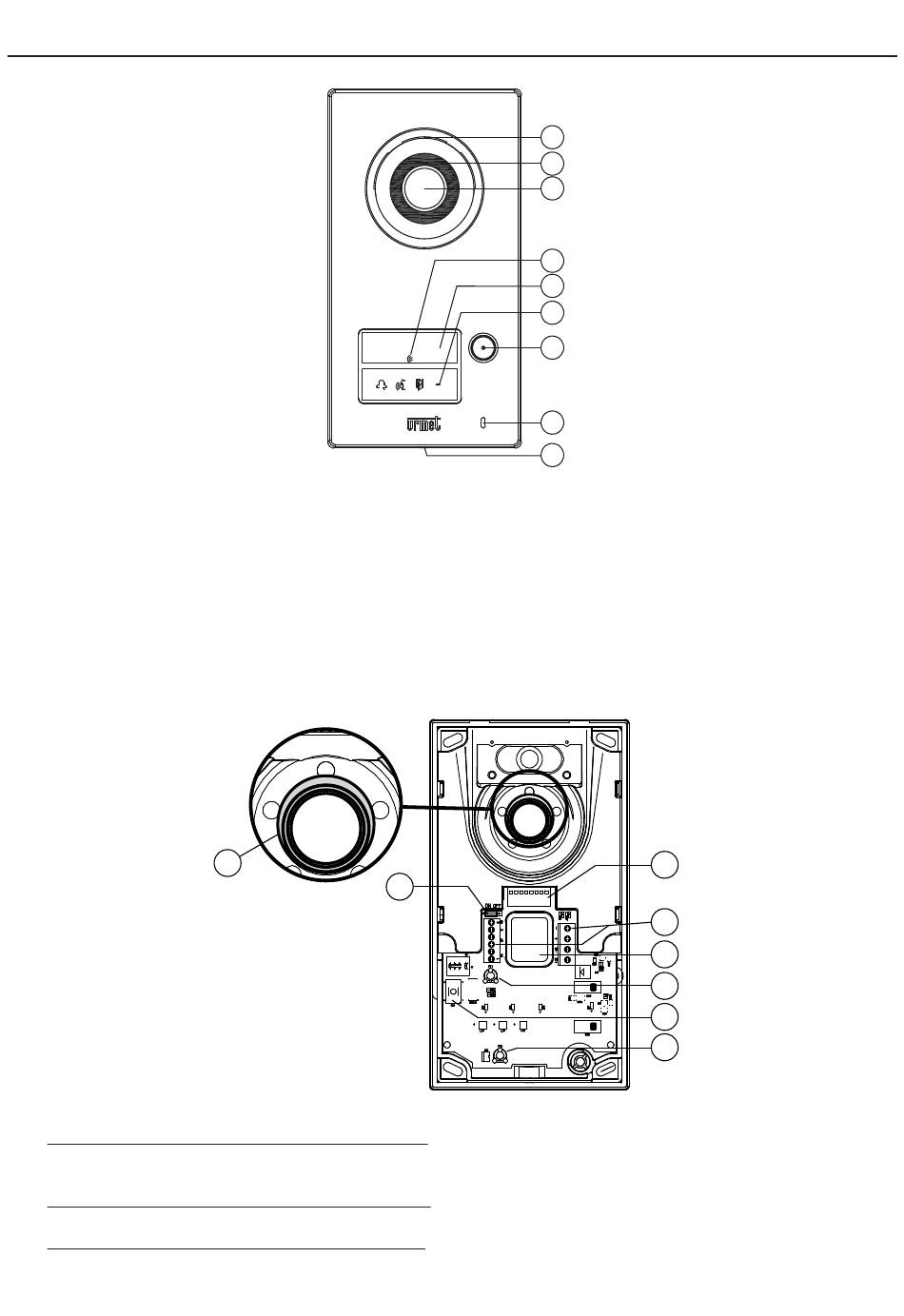

2 DESCRIPTION OF COMPONENTS

1.
Speaker.
2.
Camera lighting LED.
3.
Camera.
4.
Transponder reader.
5.
Name tag(s).
6.
Signalling LEDs dedicated to the DDA function.
7.
Calling button.
8.
Microphone.
9.
Front closing screw.
10. Connector for connecting to the LAN.
11. Do not change the position of this Jumper.
12. Terminal boards.
13. Hole for running wires.
14. Do not change the position of this trimmer.
15. Button for restarting the device.
16. Do not change the position of this trimmer.
17. Anti-reflection seal.
DS1060-133A
FRONT VIEW
INSIDE VIEW
17
1
2
3
4
5
6
7
8
9
11
10
12
13
14
15
16
9
