3 INSTALLATION

3.1 INSTALLATION METHOD

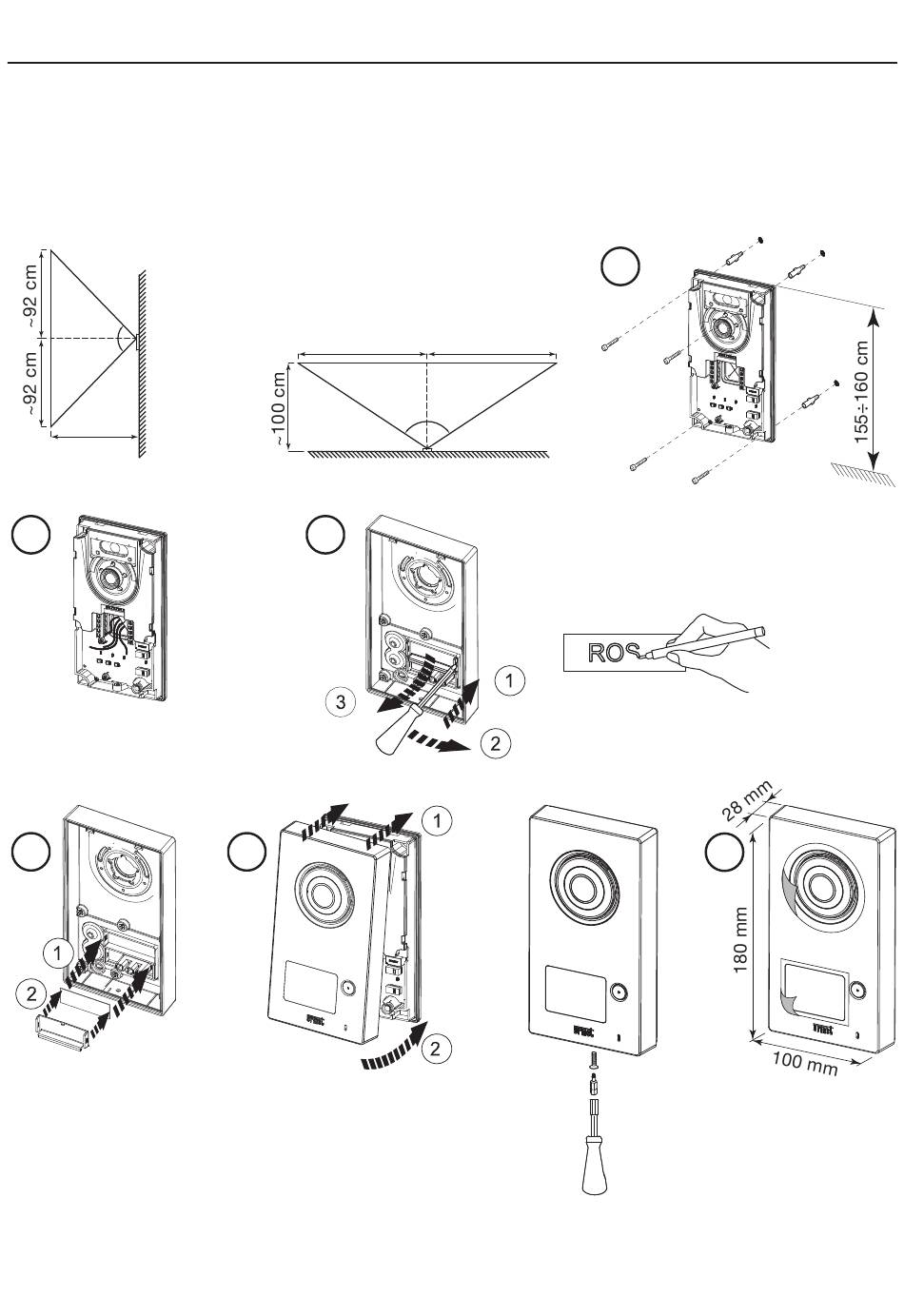

• Install the panel at the indicated heights checking that the caller is framed by the camera.
• Connect the wires to the terminal boards.
• Fit the name tags on the front.
• Program the device.
• Close the metal lid of the panel.
• Remove the protective films.
