INSTALLATION

Connecting External Power

The TempHion comes with two replaceable1.5V AA internal
batteries.
If auxiliary power is desired, you can use a 9-15 VDC supply
that can provide 15 mA. Connect to Vaux++ (pin 1 - white)
and Ground (pin 5 - blue) or contact Seametrics for auxiliary
power supplies.

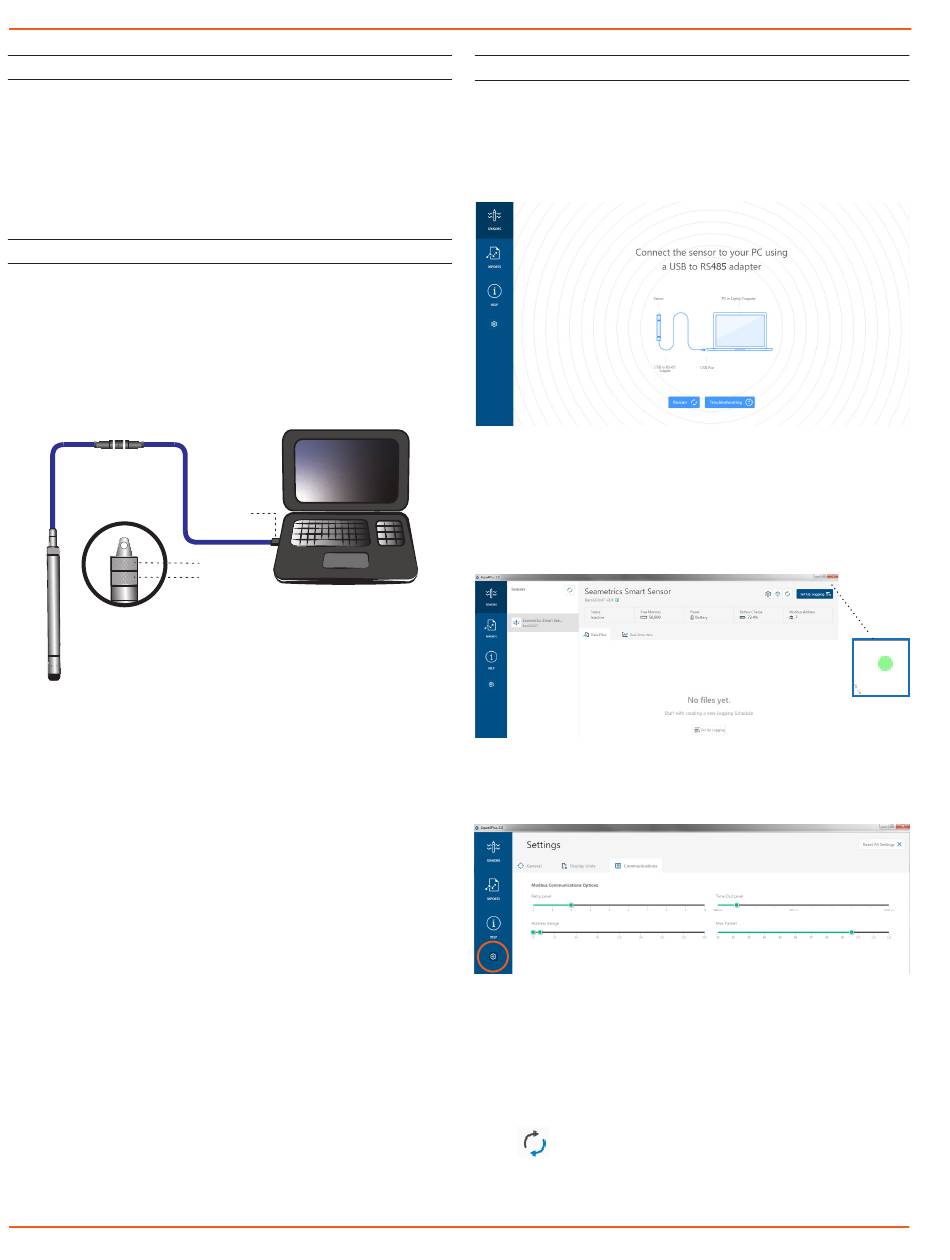

Connecting the TempHion to a Computer
Cabled sensors are terminated with a weather-resistant
connector. Cableless sensors are terminated with a weather-
resistant connector that is inside a screw-cap. Connect the
weather-resistant connector to your computer's USB port
as shown below.
USB to RS485
Adapter
Cableless
Configuration
Sensor
Connecting sensor to your computer using
Seametrics' USB to RS485 adapter.
Aqua4Plus communicates with the sensor using the USB
to RS485 adapter cable. This cable requires drivers to be
installed on your computer. If you are connected to the
Internet when you first plug in the cable, it will normally
obtain and install the correct drivers automatically. If this
does not happen, or if you do not have Internet connection,
you can use Aqua4Plus to install the drivers.
Seametrics • 253.872.0284
USB Port
Cap
Sensor
PC or Laptop
Connecting to Sensors
Aqua4Plus 2.0 is designed to automatically detect
your communication cable and scan for sensors. It is
recommended you connect your USB/RS485 cable to
your PC and have the sensor connected before opening
Aqua4Plus 2.0.
If your cable and sensor were not connected before
opening Aqua4Plus 2.0 simply connect and click Rescan.
While scanning is active you'll see a green dot flash in the
upper right corner of the program. Scanning is complete
when this dot stops flashing.
If your sensor still won't connect you can expand the
Modbus address range under program settings here:
Simply drag the Address Range slider higher up to
increase the maximum Modbus address scanned. If
you've scanned all the way up through address 255 and
still have no connection click Troubleshooting for further
troubleshooting or contact Seametrics Tech Support for
assistance.
Click at any time to refresh sensor information.
