- Page 1 Dissolved Oxygen Smart Sensor and Datalogger Instructions PROUDLY MADE IN THE 9001...
-
Page 3: Table Of Contents
Setting Baud Rate ..........................17 Reading Via SDI-12 ..........................18 Appendix E: Error Code Chart ....................20 Limited Warranty/Disclaimer - Seametrics DO2 Dissolved Oxygen Sensor ..23 ©1997 - 2016 Seametrics. All rights reserved. Registered trademarks and trademarks belong to their respective owners. -
Page 4: Introduction

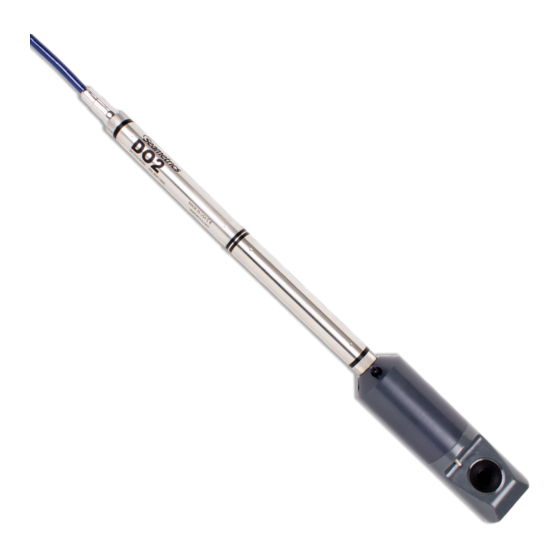

INTRODUCTION DO2 INSTRUCTIONS What is the DO2 Sensor? The Seametrics DO2 Smart Sensor is the next generation in trouble-free oxygen sensing design. Utilizing fluorescence of a stable, immobilized ruthenium-based film matrix, the sensor provides precision optical transmission and detection to measure oxygen concentration in the fluid outside of the sensor. -
Page 5: Installation And Operation
® • Read via SDI-12 protocol. • Display readings on a panel meter. If you want to use one of these methods, see Appendix C or contact Seametrics for further details. Seametrics • 253.872.0284 Page 5 seametrics.com... -
Page 6: Installing The Sensor
INSTALLATION AND OPERATION DO2 INSTRUCTIONS Installing the Sensor Lower the sensor to the desired depth. Fasten the cable to the well head using tie wraps or a weather proof strain-relief system. Take a measurement to insure the sensor is not installed below its maximum range. -
Page 7: Data Logging
INSTALLATION AND OPERATION DO2 INSTRUCTIONS Real-time readings default to a 1 second interval for 1 minute, to adjust enter your desired settings here: To save this data to the Reports section click the button located next to the Single button in the Real-Time tab. This will permanently save this real-time data set to your Reports database. - Page 8 INSTALLATION AND OPERATION DO2 INSTRUCTIONS Set Up Logging Window Here you will name your data file and set up the recording interval and duration of each logging phase. Select your desired recording interval and duration for each phase, Aqua4Plus 2.0 will display the available memory at the bottom of the window.
-
Page 9: Reports
INSTALLATION AND OPERATION DO2 INSTRUCTIONS Reports Data downloaded from your sensor is stored in the Reports section of Aqua4Plus 2.0 for viewing and editing. The files will be saved to default data folder on your PC as well. See Program Settings for default data folder location. - Page 10 DO2 INSTRUCTIONS INSTALLATION AND OPERATION You may change the display units within the graph view by selecting the appropriate channel here: Click to switch to full screen graphing view Graph saving and export options are available here: Click to view data as a table...
- Page 11 DO2 INSTRUCTIONS INSTALLATION AND OPERATION The Information tab is a new feature allowing users to add metadata to their reports such as site location, field notes, or comments. The Schedule tab will display the logging setup details for the report.
-
Page 12: Maintenance
Maintenance Sensor: There are no user-serviceable parts. If problems develop with sensor stability or accuracey, contact Seametrics. If the unit has been exposed to hazardous materials, do not return without notification and authorization. Cable: Cable can be damaged by abrasion, sharp objects, twisting, crimping, crushing, or pulling. -
Page 13: Troubleshooting
Next, check the cable for cracking or fraying. If the connections and cable appear OK, but the readings are still erratic, the transmitter may be damaged. Contact Seametrics for evaluation and repair. Erratic and erroneous readings can also occur due to improper grounding. See Grounding Issues, below. -
Page 14: Appendix A: Technical Specifications
APPENDIX A: TECHNICAL SPECIFICATIONS DO2 INSTRUCTIONS The Seametrics DO2 Smart Sensor is a microprocessor based digital intelligent sensor designed to measure dissolved oxygen, utilizing fluorescence of a stable, immobilized ruthenium-based film matrix. GENERAL Probe Diameter 1.66” (4.22 cm) Tube Material Acetal &... - Page 15 APPENDIX A: TECHNICAL SPECIFICATIONS DO2 INSTRUCTIONS POWER External Power Pack Required (9-15VDC) Seametrics Power Pack described below. Other power options available. Contact Seametrics for details. Seametrics Power Pack Enclosure Material Polycarbonate (1P67) Enclosure Dimentions 5.5” x 3.1” x 2.6” (14 x 7.9 x 6.6 cm)
-
Page 16: Appendix B: Field Calibration
If there are any sessions on the sensor, upload any data you want and then erase the session before continuing. Place the DO2 sensor in your reference solution, allow a few minutes for temperature to stabilize. Obtain the DO saturation using an alternate method, then select the calibration button. -
Page 17: Appendix C: Reading The Seametrics Do2 Sensor Via Direct Read
Power On Function In order to save power, the power to the sensing probe on the DO2 is normally off, even when the DO2 sensor itself is powered. The sensing probe requires a warm-up or stabilization time before returning valid readings. -
Page 18: Reading Via Sdi-12
To force the power off immediately after a reading, for power savings, write a zero to the register. If the power to the entire DO2 sensor is turned off, this value defaults to 30 (or 7.5 seconds). - Page 19 // read: temperature (on board), pressure power <a>D0! <a>+19.1374{crc}<cr><lf> // read: temperature (on probe) For further information and SDI-12 examples, see the Seametrics application note, “DO2 Interface Specification (SDI-12 and Modbus)” available from our web site at: www.seametrics.com Seametrics • 253.872.0284 Page 19...
-
Page 20: Appendix E: Error Code Chart
APPENDIX D: ERROR CODE CHART DO2 INSTRUCTIONS Any reading over 1000 indicates an error, as detailed in the chart below. To use this chart, look up the 1000+ reading from your sensor and note the Sensor Error code in the second column. Then note the Errors 0 – 5. See error descriptions after chart. - Page 21 DO2 INSTRUCTIONS APPENDIX D: ERROR CODE CHART Aqua4Plus Reading Sensor Error Code 1031 √ √ √ √ √ 1032 √ 1033 √ √ 1034 √ √ 1035 √ √ √ 1036 √ √ 1037 √ √ √ 1038 √ √...
- Page 22 DO2 INSTRUCTIONS APPENDIX D: ERROR CODE CHART ERROR DESCRIPTION Main photodiode saturated (circuit or sensor coating damage) Main photodiode negative (excessive electrical noise or damage) Reference photodiode saturated (circuit or sensor coating damage) Reference photodiode negative (excessive electrical noise or damage)
-
Page 23: Limited Warranty/Disclaimer - Seametrics Do2 Dissolved Oxygen Sensor
DO2 INSTRUCTIONS LIMITED WARRANTY/DISCLAIMER LIMITED WARRANTY/DISCLAIMER - SEAMETRICS DO2 DIS- SOLVED OXYGEN SENSOR A. Seller warrants that products manufactured by Seller when properly installed, used, and maintained, shall be free from defects in material and workmanship. Seller’s obligation under this warranty shall be limited to replacing or repairing the part or parts or, at Seller’s option, the products which prove defective in material... - Page 24 LIMITED WARRANTY/DISCLAIMER DO2 INSTRUCTIONS Seametrics • 19026 72nd Avenue South • Kent, Washington 98032 • USA (P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • seametrics.com LT-14406r8 20190115 1/15/2019...
