- Page 1 Rack Dual Rail LCD KVM Console (DL1701 / DL1901) User Manual Version: V1.1 - 1 -...

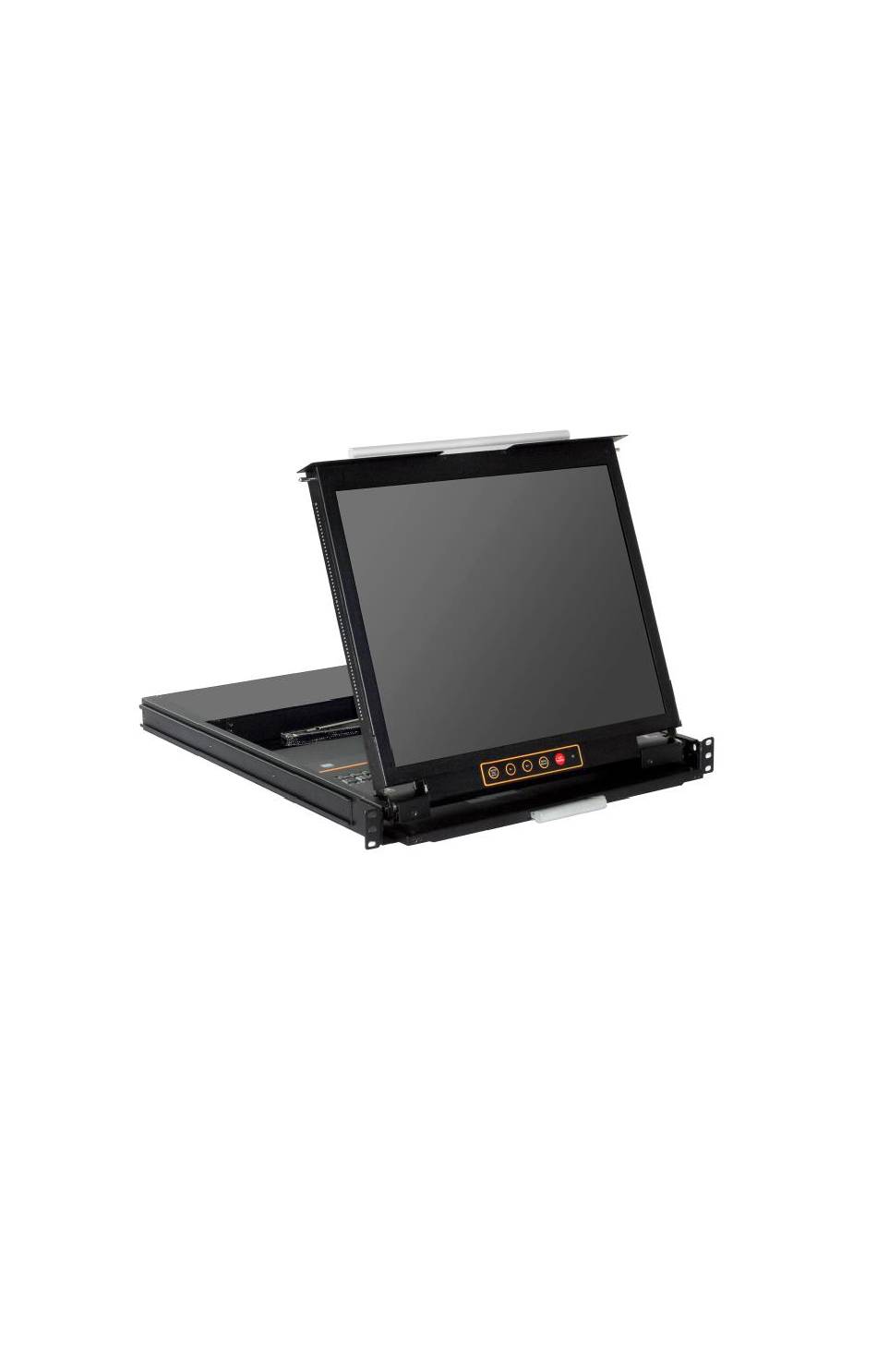

- Page 2 DL1701/DL1901 User Manual Overview Description: The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates backflush against the rack allowing administrators to easily monitor computer.

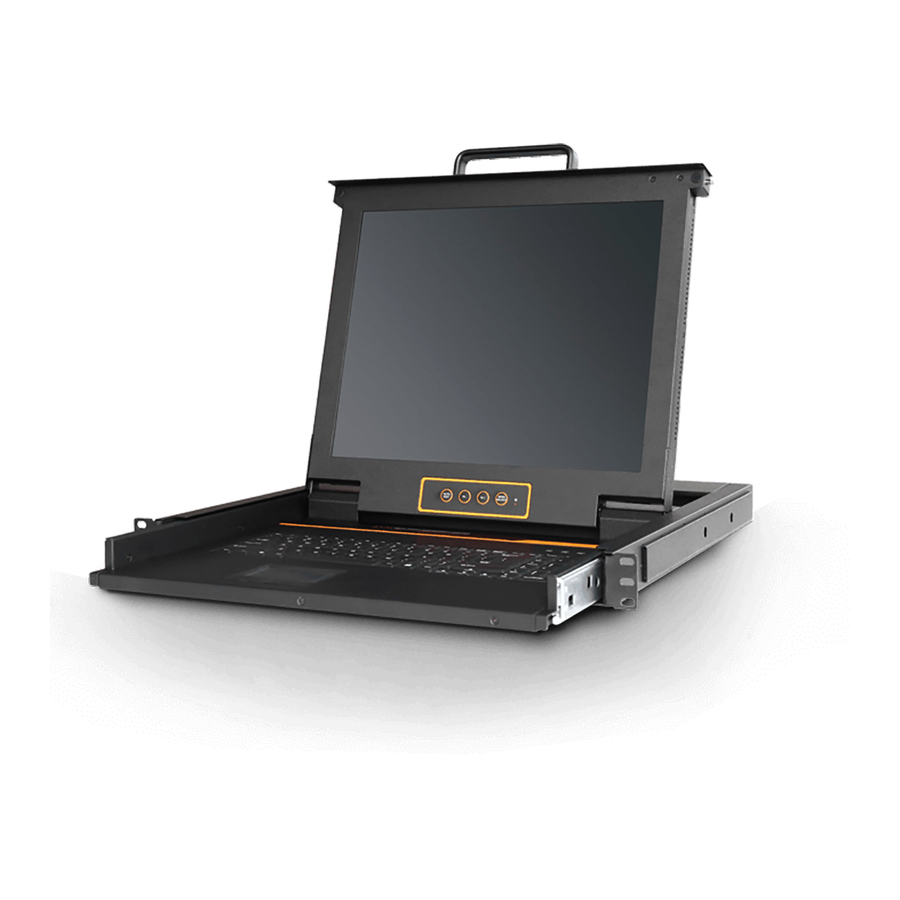

- Page 3 DL1701/DL1901 User Manual Front view (see diagram 1-1.2) 1-1.2 front view 1．LCD monitor 2．Rear bracket slot 3．LCD OSD controls 4．Front bracket 5．Keyboard 6．Touchpad 7．Handle 8．Release catch - 3 -...
-
Page 4: Hardware Installation
DL1701/DL1901 User Manual Hardware Installation Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 600-950mm (19”) in a standard 19”rack. With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back, then screws the... - Page 5 DL1701/DL1901 User Manual Cables Function Model Cable port KVM signal cable PC or Server port: －PS/2 Keyboard: 6pin MIN-DIN male Mouse : 6pin MIN-DIN male Monitor: 15pin HDB male CH-1800P ( 1.8M) CH-3000P( 3M) CH--5000P( 5M) KVM port ① 15pin HDB male...
-
Page 6: Connecting Diagram
DL1701/DL1901 User Manual Connecting diagram 1. Make sure the rack dual rail KVM console has been connected to the ground (See number ① in below diagram) 2. Connect the computer to the KVM switch according to number②in below diagram. 3. Connect the power cable into the KVM power port according to number③in below diagram. - Page 7 DL1701/DL1901 User Manual Opening the console: Release the release catch. 2-1.3 unlocking Pull the LCD panel all the way out until it clicks into place. - 7 -...
- Page 8 DL1701/DL1901 User Manual Rotate the LCD module all the way back to expose the LCD screen; the LCD module can be rotated up to108° . Pull the keyboard module all the way out until it clicks into place.
-
Page 9: Closing The Console
DL1701/DL1901 User Manual Closing the console Pull the release catches at the bottom of the keyboard to release the keyboard module. Push the keyboard module all the way in. Rotate the LCD module all the way down, and then pull the rear catches to release the module. -
Page 10: Led Osd Configuration
DL1701/DL1901 User Manual LED OSD Configuration The LED OSD allows you to set up and configure the LED display. Buttons Functions Press this button invokes the menu function MENU SELECT and brings up the main menu. Press this button exits the current menu and... - Page 11 DL1701/DL1901 User Manual USB Keyboard Emulation Mac keyboard The PC compatible (101/104 keys) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the below table: PC keyboard Mac keyboard [Shift] Shift [Ctrl] Ctrl L_Win & “1”...
-
Page 12: Sun Keyboard
DL1701/DL1901 User Manual Sun keyboard The PC compatible (101/104 keys) keyboard can emulate the functions of the Sun keyboard when the control key [L_Win] is used in conjunction with other keys.The corresponding functions are shown in the below table: PC keyboard Sun keyboard L_Win&L_Alt... - Page 13 DL1701/DL1901 User Manual Specifications (17”) Model DL1701 Direct Computer connections Maximum Port emulation Keyboard, mouse PS/2，USB LCD model SXGA TFT View area 17″ Optimum 1280×1024@60Hz resolution LCD monitor Display color 16.7 M Brightness 250cd/m² ( T y p ) Contrast ratio...
- Page 14 DL1701/DL1901 User Manual Specifications (19”) Model DL1901 Direct Computer connections Maximum Port emulation Keyboard,mouse PS/2，USB LCD model SXGA TFT View area 19″ Optimum 1280×1024@60Hz resolution LCD monitor Display color 16.7 M Brightness 250cd/m² ( T y p ) Contrast ratio...
