- Page 1 17.3″ Rack-Mount LCD Console (VGA / DVI / HDMI) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd. Print Date: 2020/06 Version: V1.0...

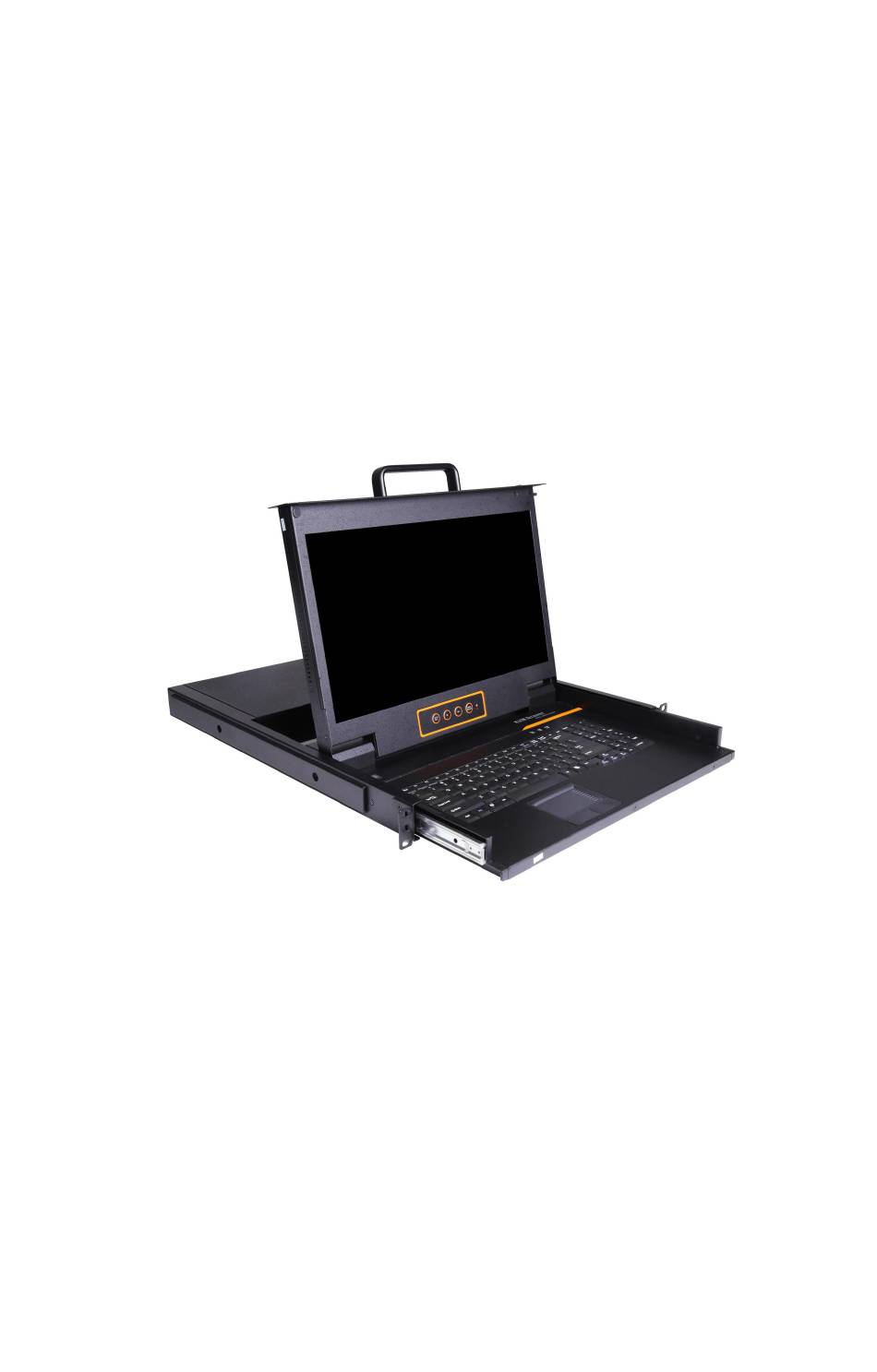

- Page 2 User Manual Overview The SW1731 DVI VGA LCD Console is a short depth single rail LCD KVM console featuring a 17.3" widescreen LCD monitor with an integrated keyboard and touchpad. It supports three types of video inputs – HDMI, DVI, and VGA – allowing users to connect the console and the computer via any of the three types of video source.
-
Page 3: Front View
SW1731 User Manual Front View 1．LCD monitor 6．Touchpad 2．Rear Bracket Slot 7．Handle 3．OSD Controls 8．Release Lock 4．Front Bracket 9．Display Panel 5．Keyboard - 2 -... -
Page 4: Connection Diagram
SW1731 User Manual Connection Diagram Note: The USB cable must be connected to the PC/server. To ensure signal integrity and simplify cable layout, we strongly recommend you use high quality cables with different length. Cables Cable Cables Model No. Remarks... -
Page 5: Rack Mounting
SW1731 User Manual Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 600-850mm in a standard 19”rack. With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back, then screws the brackets to the... -
Page 6: Opening The Console
SW1731 User Manual Opening the Console Power on the KVM after connecting cables. Power on the server or PC after power on the KVM. Release the release catch. Figure 1-2.3 unlocking *Note: The release catch can only do horizontal locking, it can’t bear any load. -
Page 7: Menu Select
SW1731 User Manual OSD Controls Figure 1-2.6 OSD controls Buttons Functions Press this button invokes the menu function and MENU SELECT brings up the main menu. Press EXIT exits the current menu and returns to the previous menu or presses this button exits EXIT/AUTO the LED OSD. - Page 8 SW1731 User Manual Specifications-17.3″ Model SW1731 Direct Computer Connections Keyboard, Port emulation PS/2, USB mouse LCD model FHD TFT View area 17.3" Optimum 1920×1080@60Hz resolution LCD monitor Display color 262K Brightness 300cd/m²( T y p ) Contrast ratio 800 : 1( T y p ) Pixel pitch(mm) 0.1989(H) ×...
