Installing the MPL15
wall mount trim kit on
49" LCD display panels

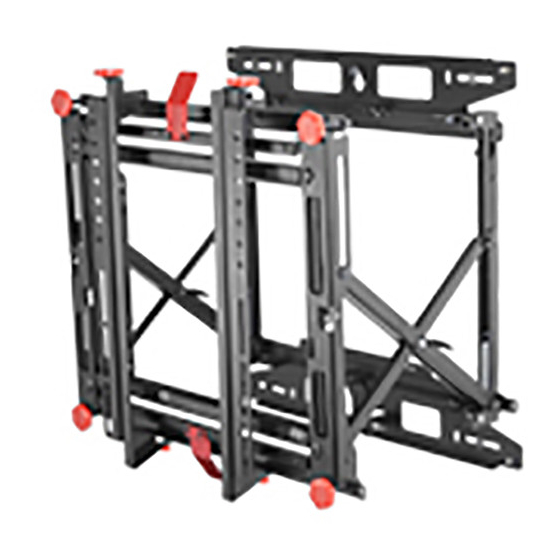

Add the MPL15 wall mount trim kit as a border to tiled arrays of 49" Extreme Series display panels
that are mounted on MPL15 wall mounts.
The trim kit can cover a gap between 184 - 218 mm.
For improved ventilation behind the display panels Christie recommends only installing the trim kit along
the bottom and sides of the array.
Required parts
Each trim kit contains the following parts.
•
Long trim kit pieces (P/N: 135-124108-XX, Qty. 2)
•
M3 round head screws (Qty. 8)
•
M4 round head screws (Qty. 8)
•
M5 round head screws (Qty. 8)
•
Trim kit brackets (Qty. 2)
•
Short trim kit pieces (P/N: 135-125109-XX, Qty. 2)
•
M3 round head screws (Qty. 6)
•
M4 round head screws (Qty. 4)
•
M5 round head screws (Qty. 4)
•
Trim kit brackets (Qty. 2)
Required tools
Ensure the appropriate tools are available during the installation.
•
#2 Phillips screw driver
Installing the MPL15 Wall Mount Trim Kit on 49" LCD Display Panels Instruction Sheet
020-103048-01 Rev. 1 (02-2019)
