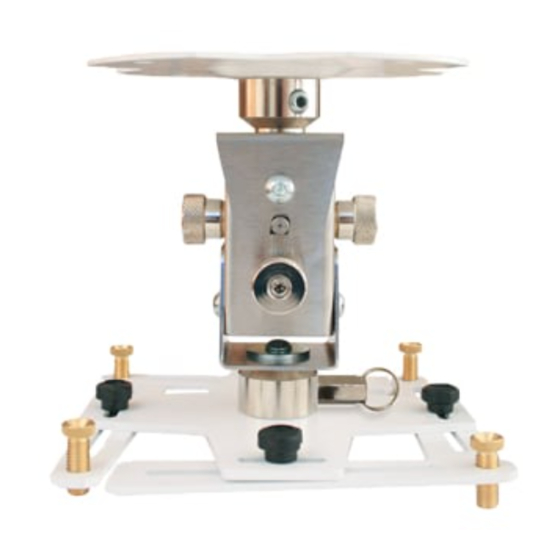

Christie One Mount Instruction Sheet

Install a Christie One Mount
This document provides instructions for installing the Christie One Mount. Use the Christie One
Mount to mount these Christie projectors to a ceiling:
• LX505/LX605/LW555/LWU505
• LX501/LX601i/LW401/LW551i/LWU421/LWU501i
• LX41/LW41
• E Series
• G Series
• GS Series
• Q Series
• LW400/LX400
• LW650/LW720

Safety precautions

Failure to comply with these safety precautions results in death or serious injury.
• ELECTRICAL SHOCK HAZARD! Always turn off, disconnect, and disengage all power
sources to the projector before servicing.
• Maximum projector weight limit is 25 kg (55 lbs).
• Mount the ceiling plate to a structure capable of handling the combined maximum weight
of the projector and the mount. The installation must meet local building codes. Attach
using all four holes (mounting screws/bolts are not included with the mount).
Failure to comply with these safety precautions may result in serious injury, or even death.
• Only qualified Christie service technicians are permitted to open any enclosure on the
projector and only if the all power sources have been fully disconnected.
• At least two qualified people should perform the installation procedure. Personal injury
and/or property damage can result from dropping or mishandling the projector.
• If mounting to ceiling studs, make sure that the mounting screws are anchored into the
center of the ceiling studs. Use of an edge-to-edge stud finder is recommended.
• Be aware of the mounting environment. If drilling and/or cutting into the mounting
surface, always make sure that no electrical wires are in the wall.
• Do not install near sources of high heat. Do not install on a structure prone to vibration,
movement, or chance of impact.

Tools required

• 5mm hex key
• 3mm hex key
Install a Christie One Mount Instruction Sheet
020-101410-02 Rev. 1 (08-2014)
