Connecting the Host Interface Board

4.
Position the S5U13C00P00CX00 Customer Development Board on TOP of the EK-TM4C1294XL Launchpad
Host Interface Board, press the two boards together with J4 connecting to X8, J5 connecting to X9, J6 connecting to
X6, and J7 connecting to X7 respectively.
X8
X6

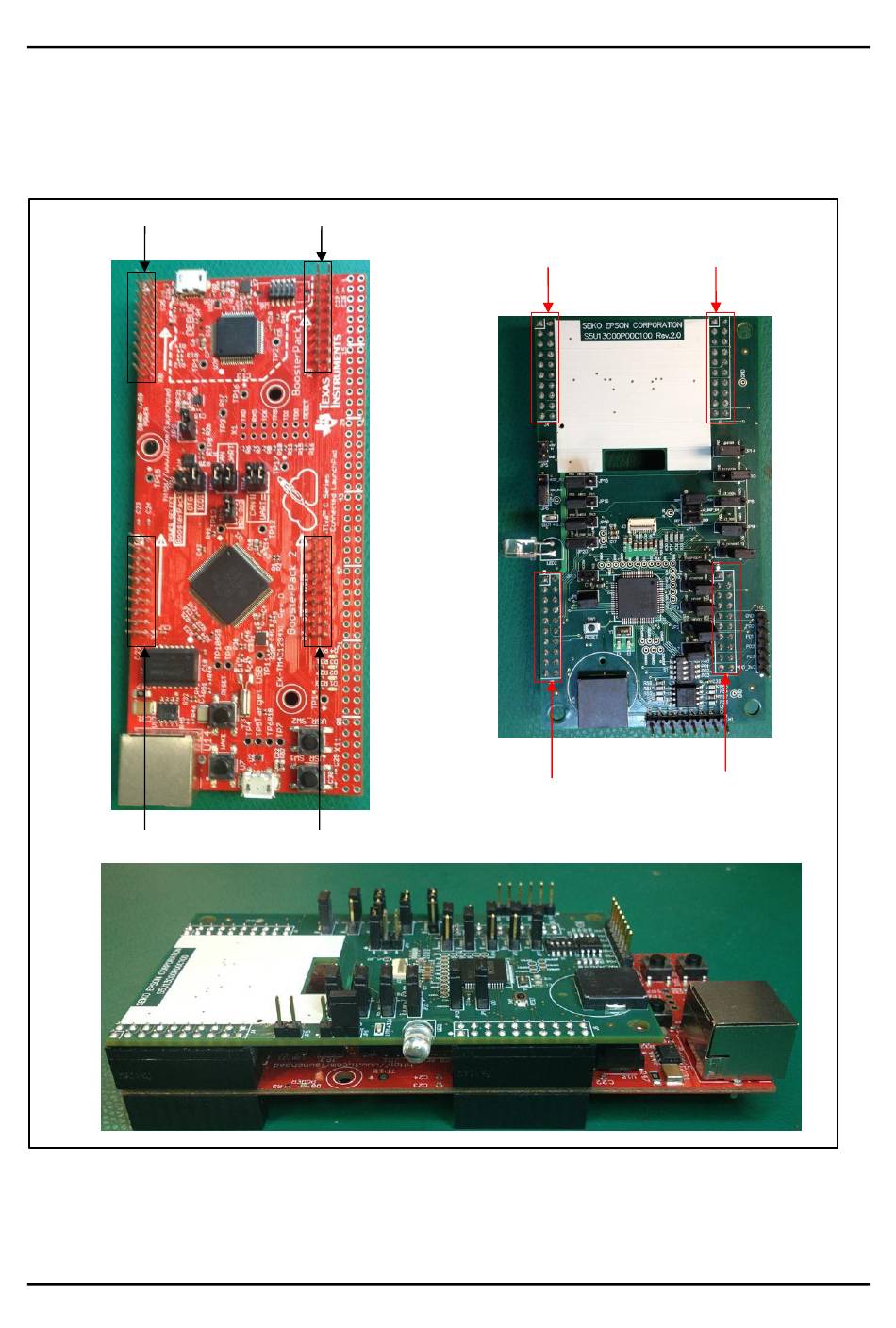

Figure 5 – Connecting the S5U13C00P00CX00 to the EK-TM4C1294XL
Customer Development Board User Manual
(Rev 1.01)
X9
X7
