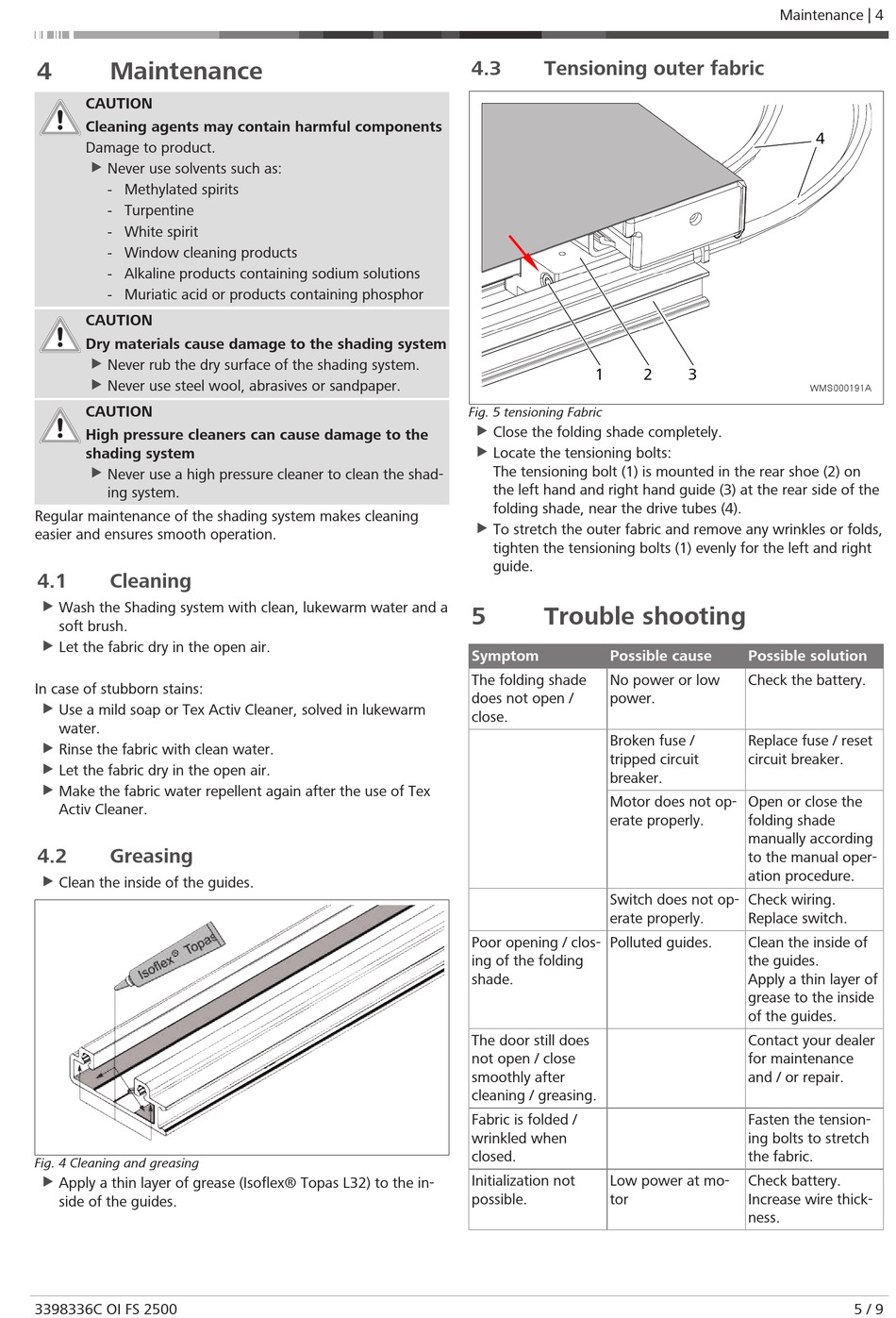

Maintenance; Cleaning; Greasing; Tensioning Outer Fabric - Webasto FS 2500 Operating Instructions Manual

4

Maintenance

CAUTION
Cleaning agents may contain harmful components
Damage to product.
u
Never use solvents such as:
- Methylated spirits
- Turpentine
- White spirit
- Window cleaning products
- Alkaline products containing sodium solutions
- Muriatic acid or products containing phosphor
CAUTION
Dry materials cause damage to the shading system
u
Never rub the dry surface of the shading system.
u
Never use steel wool, abrasives or sandpaper.
CAUTION
High pressure cleaners can cause damage to the
shading system
u
Never use a high pressure cleaner to clean the shad-
ing system.
Regular maintenance of the shading system makes cleaning
easier and ensures smooth operation.
4.1

Cleaning

u Wash the Shading system with clean, lukewarm water and a
soft brush.
u
Let the fabric dry in the open air.
In case of stubborn stains:
u Use a mild soap or Tex Activ Cleaner, solved in lukewarm
water.
u Rinse the fabric with clean water.
u Let the fabric dry in the open air.
u
Make the fabric water repellent again after the use of Tex
Activ Cleaner.
4.2

Greasing

u
Clean the inside of the guides.
Fig. 4 Cleaning and greasing
u
Apply a thin layer of grease (Isoflex® Topas L32) to the in-
side of the guides.
3398336C OI FS 2500
4.3

Tensioning outer fabric

1
Fig. 5 tensioning Fabric
u Close the folding shade completely.
u Locate the tensioning bolts:
The tensioning bolt (1) is mounted in the rear shoe (2) on
the left hand and right hand guide (3) at the rear side of the
folding shade, near the drive tubes (4).
u To stretch the outer fabric and remove any wrinkles or folds,
tighten the tensioning bolts (1) evenly for the left and right
guide.
5

Trouble shooting

Symptom Possible cause
The folding shade No power or low
does not open / power.
close.
Broken fuse /
tripped circuit
breaker.
Motor does not op-
erate properly.
Switch does not op-
erate properly.
Poor opening / clos- Polluted guides.
ing of the folding
shade.
The door still does
not open / close
smoothly after
cleaning / greasing.
Fabric is folded /
wrinkled when
closed.
Initialization not Low power at mo-
possible. tor
Maintenance | 4
2 3
WMS000191A
Possible solution
Check the battery.
Replace fuse / reset
circuit breaker.
Open or close the
folding shade
manually according
to the manual oper-
ation procedure.
Check wiring.
Replace switch.
Clean the inside of
the guides.
Apply a thin layer of
grease to the inside
of the guides.
Contact your dealer
for maintenance
and / or repair.
Fasten the tension-
ing bolts to stretch
the fabric.
Check battery.
Increase wire thick-
ness.
4
