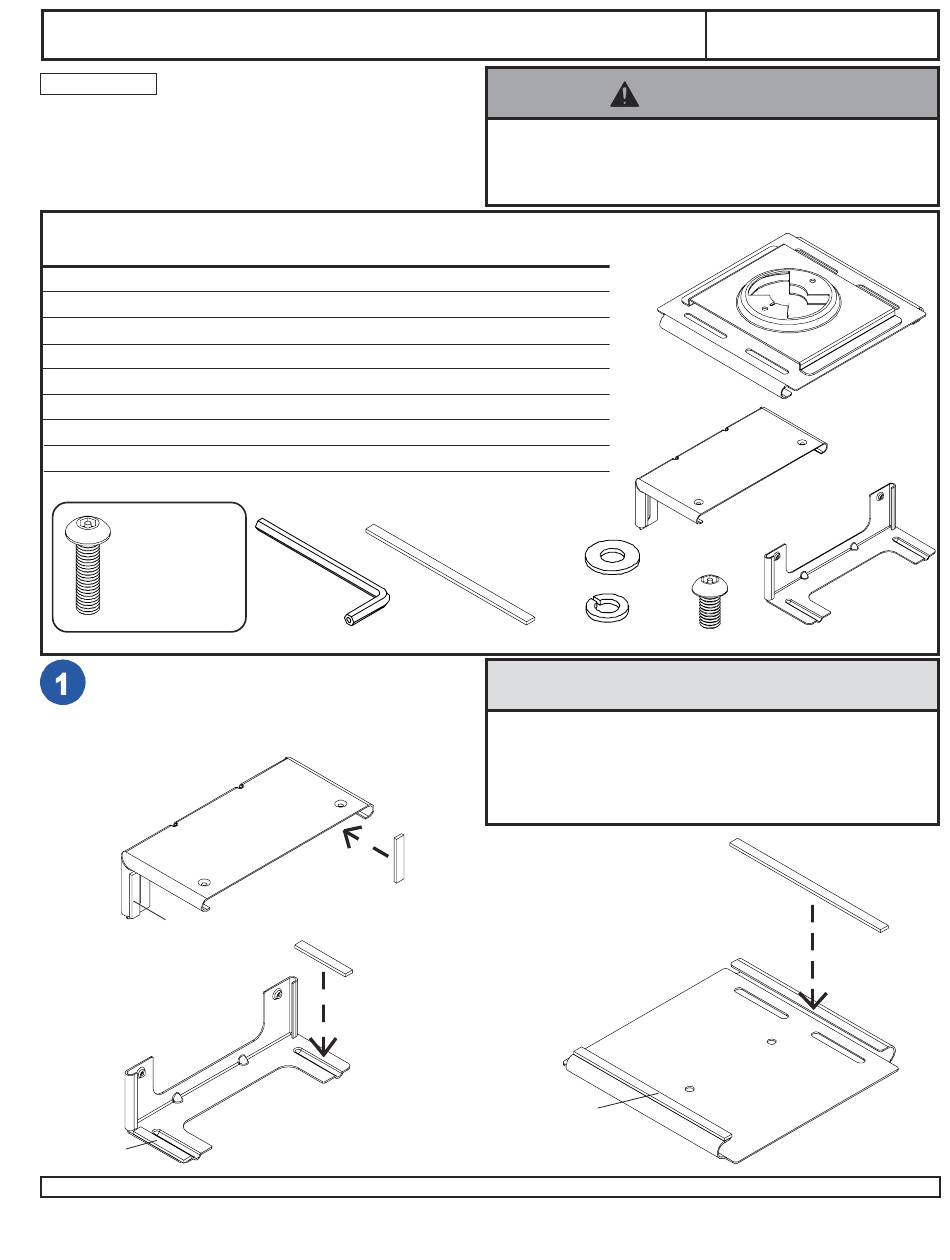

PEERLESS PAP 35 Installation And Assembly

Installation and Assembly - Universal Projector Mount
IMPORTANT! Read entire instruction sheet
before you start installation and assembly.
Before you start check the parts list below to
make sure all of the parts shown are included.
Parts List
Description
A top plate
B horizontal slide
C vertical slide
D M6 x 1 x 12 mm security screw
E foam pad 3/8" x 12.75" x 1/8"
F allen wrench 4 mm security
G 1/4" flat washer
H 1/4" lock washer
I #10-32 x .75" socket pin screw
PRS MOUNT
FASTENERS
I
Refer to PRS mount
instructions for adapter
plate attachment.
Note: Actual parts may appear slightly different than illustrated.
Cut foam pad (E) to proper length to line Universal
projector mount assembly parts (A, B, C) as
shown. Peel off sticky back paper from foam pad
and attach.
E
C
E
Visit the Peerless Web Site at www.peerlessindustries.com
Qty. PAP 35
1 055-1144
2 054-1128
2 054-1129
8 520-1050
4 599-3802
1 560-9646
8 540-9440
8 540-9402
2 510-2128
F
E
B
E
E
• Installer must verify that the ceiling will safely support
four times the combined weight of all attached equip-
ment and hardware.
PAP 35-S PAP 35-W
055-4144 055-2144
054-4128 054-2128
054-4129 054-2129
520-2050 520-2050
570-0015 570-0015
560-9646 560-9646
540-9444 540-9444
540-9447 540-9447
510-2128 510-2128
G
H
• Before installation, identify the location of all vents and
ports on the projector to ensure they will not be
obstructed by the universal mount. Blocked vents
may cause damage to the equipment.
E
1 of 2
ISSUED: 07-31-01 SHEET #: 055-9030-5 08-05-04
For customer service call 1-800-729-0307 or 708-865-8870.
Models: PAP 35, PAP 35-S,
PAP 35-W
WARNING
A
B
D
CAUTION
A
C
E
