PEERLESS PAP 40 Installation And Assembly

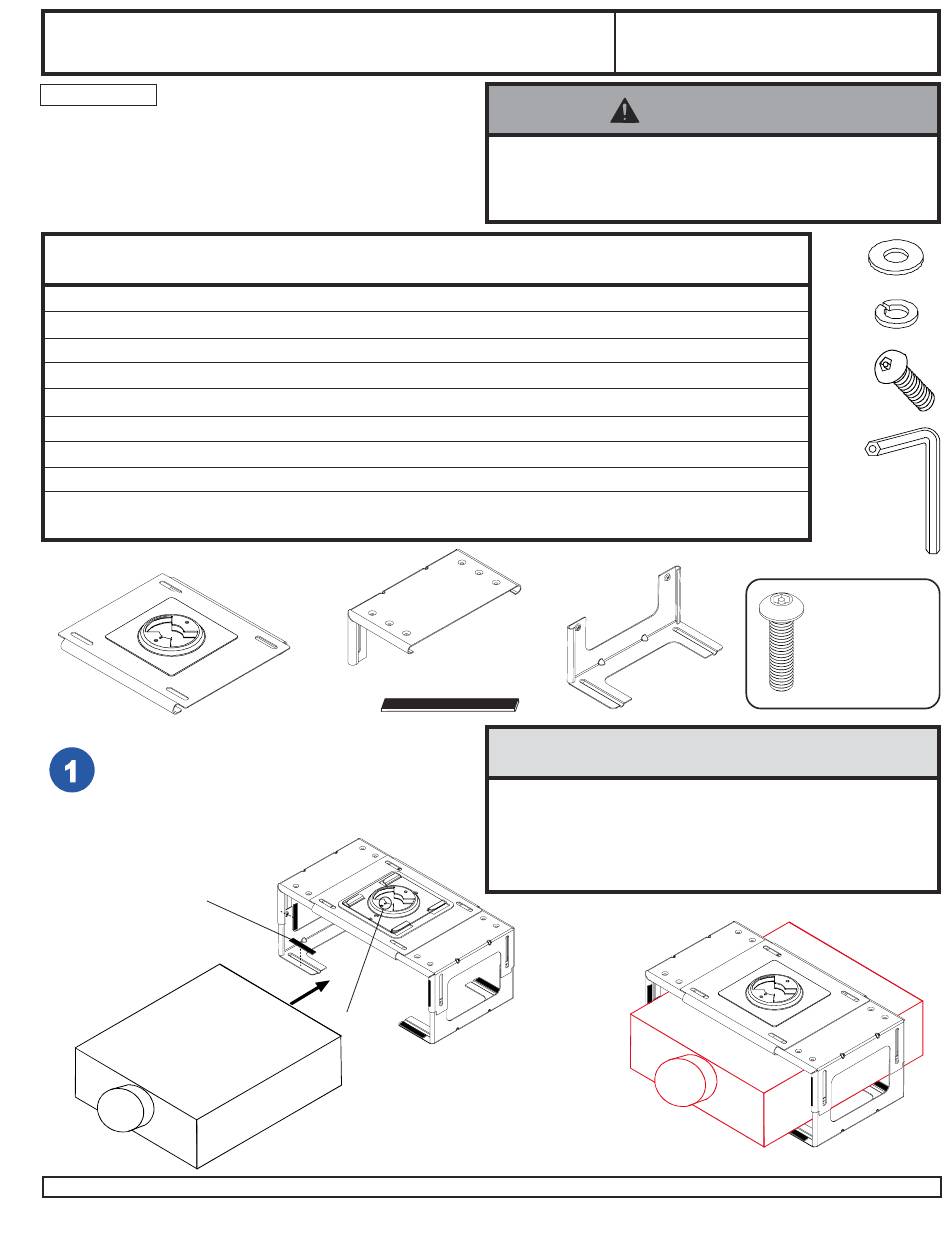

Installation and Assembly - Universal Projector Mount
IMPORTANT! Read entire instruction sheet
before you start installation and assembly.
Before you start check the parts list below to
make sure all of the parts shown are included.
Parts List
Description
A top plate
B horizontal slide
C vertical slide
D M6 x 1 x 12 mm security screw
E VCR foam 3/8" x 12.75" x 1/8"
F allen wrench 4 mm security
G 1/4" Flat washer
H 1/4" lock washer
I #10-32 x .75" socket pin screw
Note: Actual parts may appear slightly different than illustrated.
A
NOTE: *Notch indicates front.
Cut VCR foam (E) to proper length to line
Universal mount assembly (as shown).

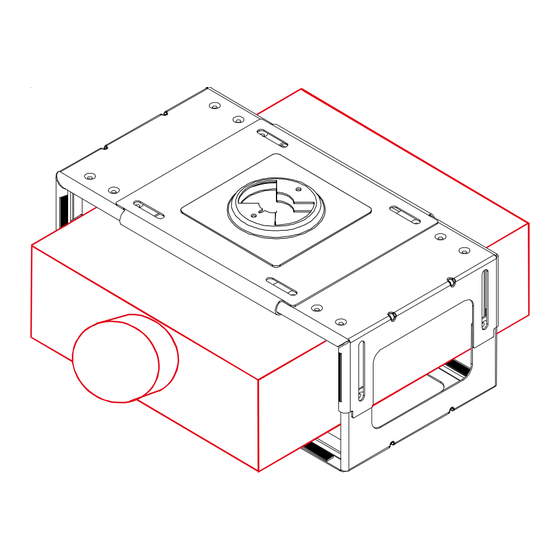

Place projector in center of Universal mount
assembly (as shown in far right side).
E
Visit the Peerless Web Site at www.peerlessindustries.com
Model Model
Qty.
PAP 40 PAP 40-S
1 055-1093 055-4093
2 054-1094 054-4094
2 054-1095 054-4095
8 520-1050 520-2050
4 599-3802 570-0015
1 560-9646 560-9646
8 540-9440 540-9444
8 540-9402 540-9447
2 510-2128 510-2128
B
E
*
Models: PAP 40, PAP 40-S, PAP 40-W
WARNING
• Installer must verify that the ceiling will safely support
four times the combined weight of all attached equip-
ment and hardware.
Model Model Model
PAP 40-W PAP 45 PAP 45-S
055-2093 055-1108 055-4108
054-2094 054-1109 054-4109
054-2095 054-1110 054-4110
520-2050 520-1050 520-2050
570-0015 599-3802 570-0015
560-9646 560-9646 560-9646
540-9444 540-9440 540-9444
540-9447 540-9402 540-9447
510-2128 510-2128 510-2128
C
CAUTION
• Before installation, identify the location of all vents and
ports on the projector to ensure they will not be
obstructed by the universal mount. Blocked vents
may cause damage to the equipment.
1 of 2
ISSUED: 07-31-01 SHEET #: 055-9029-5 08-05-04
For customer service call 1-800-729-0307 or 708-865-8870.
PAP 45, PAP 45-S, PAP 45-W
G
Model
PAP 45-W
H
055-2108
054-2109
054-2110
D
520-2050
570-0015
560-9646
540-9444
540-9447
510-2128
F
PRS MOUNT
FASTENERS
I
Refer to PRS mount
instructions for adapter
plate attachment.
