Tyco Electronics AMP PRO–CRIMPER II Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended–use, production operations is available.
Front of Tool
Die Assembly
Moving Jaw

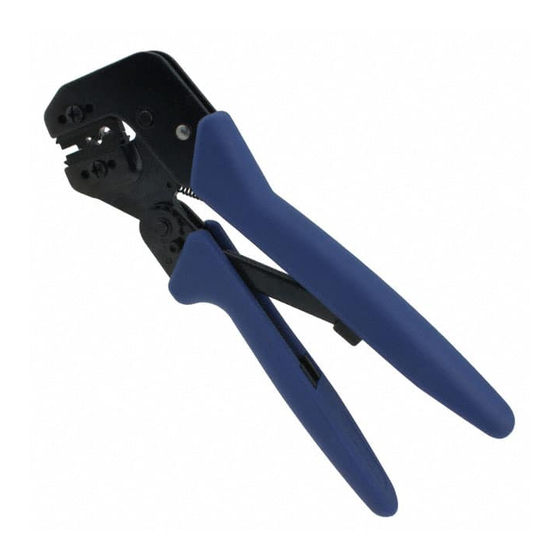

The PRO–CRIMPER II Hand Tool is a "Commercial" grade tool and is
designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 application specification, but may not comply with other
feature parameters of the specification. Tyco Electronics offers a variety of
tools to satisfy your performance requirements. For additional information,
contact the Tooling Assistance Center at 1–800–722–1111.
DIE ASSEMBLY Y
SOLISTRAND* Terminal (Standard)
SOLISTRAND Terminal (Standard) and Butt Splice
58545–2 2 2
SOLISTRAND Terminal (Long Barrel) or Butt Splice
}
Contact the Tooling Assistance Center at the number listed below for specific terminal and splice part numbers.
1. INTRODUCTION
PRO–CRIMPER II Hand Tool Assembly 58546–2
consists of Die Assembly 58545–2 and
PRO–CRIMPER II Hand Tool Frame 354940–1. The
tool is used to crimp the terminals and splices onto
the wire size listed in Figure 1.
E
2003 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
AMP and Tyco are trademarks. *Trademark
Other products, logos, and company names used are the property of their respective owners.

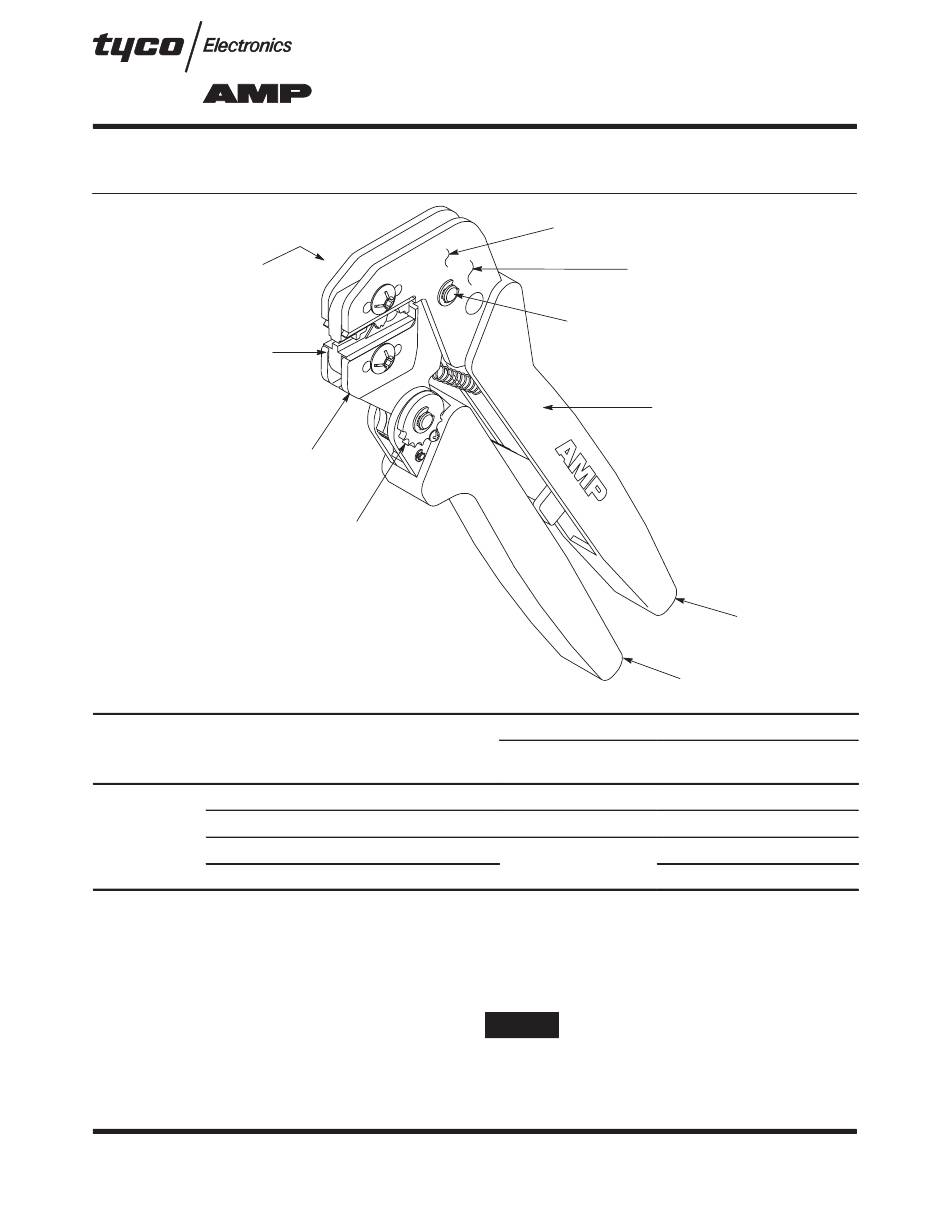

PRO–CRIMPER* II
Hand Tool Assembly 58546–2
with Die Assembly 58545–2
Ratchet Adjustment
Wheel
PRODUCT
}
FAMILY
SOLISTRAND Parallel Splice
Figure 1
This controlled document is subject to change.
For latest revision, call the FAX/PRODUCT INFO number.
Stationary Jaw
Back of Tool
(Wire Side)
Pivot Pin
PRO–CRIMPER II Hand Tool
Frame 354940–1
(See Instruction
Sheet 408–9930)
WIRE
SIZE
(AWG)
22–14
12–10
22–14 22
Read these instructions thoroughly before crimping
any terminals or splices.
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
are for reference only, and are not drawn to scale.
Reason for revision is given in Section 9, REVISION
SUMMARY.
TOOLING ASSISTANCE CENTER 1–800–722–1111
FAX/PRODUCT INFO 1–800–522–6752
For Regional Customer Service, visit our website at
www.tycoelectronics.com
Instruction Sheet
408–8678
11 SEP 03 Rev A
Stationary
Handle
Moving
Handle
STRIP LENGTH
(mm [in.])
4.37–5.16 [.172–.203]
6.35–7.14 [.25–.281]
6.35–7.14 [.25–.281]
7.94–8.73 [.312–.344]
1 of 5
LOC B
