CyberData 011214 Installation Quick Reference page 2

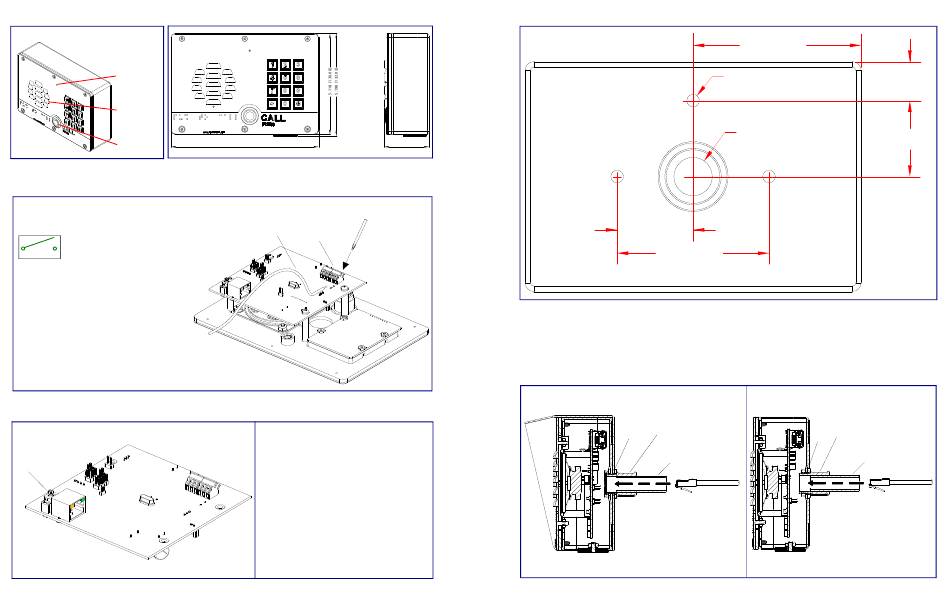

Features Dimensions (Front and Side View)
Microphone
Hole
Speaker
Drain Hole
Call Button
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
*Contacts 1 and 2 on the J3 terminal block are only
for powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
RTFM Button
SW1
© 2015, CyberData Corporation, ALL RIGHTS RESERVED
7.480 [190.00]
DIMENSIONS ARE IN INCHES [MILLIMETER]
Wire (IN)
Terminal Block
Alternate Power Input:
can accept
1 = +12 to +24 VDC at 1000 mA
(500 mA Minimum)
16 AWG wire
2 = Power Ground
J3 Terminal Block
Relay Contact:
(1A at 30 VDC for Continuous L
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Refere
When the device is operational and linked to a network,
you can use the Reset Test Function Management
(RTFM) button (SW1 [see picture]) to announce the
device's IP address or restore the device to the factory
default settings.
To announce the device's current IP address:
• Press and release the RTFM button within a five
second window.
Note The device will use DHCP to obtain the new IP
address (DHCP-assigned address or default to
10.10.10.10 if a DHCP server is not present).
To restore the device to factory default settings:
• Press and hold the RTFM button for longer than five
seconds until you hear the device announce that it is
restoring the factory default settings.
930520G
Dimensions (Rear View and Mounting Holes)
2.284 [58.01]
3 4
Conduit Mounting Restrictions (Rear Entry)
With Shroud
Quick Reference Quick Reference
3.740 [95.00]
ø0.280 [ø7.11]
(3 Places)
ø0.854 [ø21.69]
1.690
[42.93]
3.380 [85.85]
Dimensions are in Inches [Millimeter]
Without Shroud
1/2" Conduit
Add
Spacer Connector
Here (Not Provided)
1/2" Conduit
(Not Provided)
Network
Cable
(Not Provided)
930520G © 2015, CyberData Corporation, ALL RIGHTS RESERVED
0.869 [22.07]
1.690 [42.93]
1/2" Conduit
Add
Connector
Spacer
Here (Not Provided)
1/2" Conduit
(Not Provided)
Network
Cable
(Not Provided)
