AXIOMTEK SBC81205 Series Quick Installation Manual page 2

SBC81205 Series Quick Installation Guide
III.
Connectors
Connectors Label
CN1
FRONT PANEL USB 1 CONNECTOR
AXIOM ACPI CN2
USB 2 CONNECTOR
ATX 4 PIN 12V IN
CN4
USB 3, 4 CONNECTOR
CONNECTOR
CN5
LAN2 Ext. Speed LED USB 5,6 CONNECTOR
CN6
LAN2 Ext. Link/ACT LED SYSTEM FAN1 CONNECTOR
CN8
LAN1 Ext. Speed LED SYSTEM FAN2 CONNECTOR
CN7
LAN1 Ext. Link/ACT LED CPU FAN CONNECTOR
LAN1
RJ-45 PORT 1 COM1 PORT
LAN2
RJ-45 PORT 2 COM2 PORT
CPU1
LGA775 SOCKET MOUSE CONNECTOR
SATA1 KEYBOARD CONNECTOR
S-ATA PORT 1
SATA2 VAG PORT
S-ATA PORT 2
SATA3 PARALLEL PORT
S-ATA PORT 3
SATA4 FLOPPY PORT
S-ATA PORT 4
®
Intel HD Audio Digital
HDA1
Header
-- End of Connectors Table --
2
Connectors Label
USB1
USB2
USB3
USB4
FAN1
FAN2
FAN3
COM1
COM2
MS1
KB1
VGA1
PRN1
FDD1
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A2 Dec 2009
Printed in Taiwan
94181205020E
SBC81205 Series Quick Installation Guide

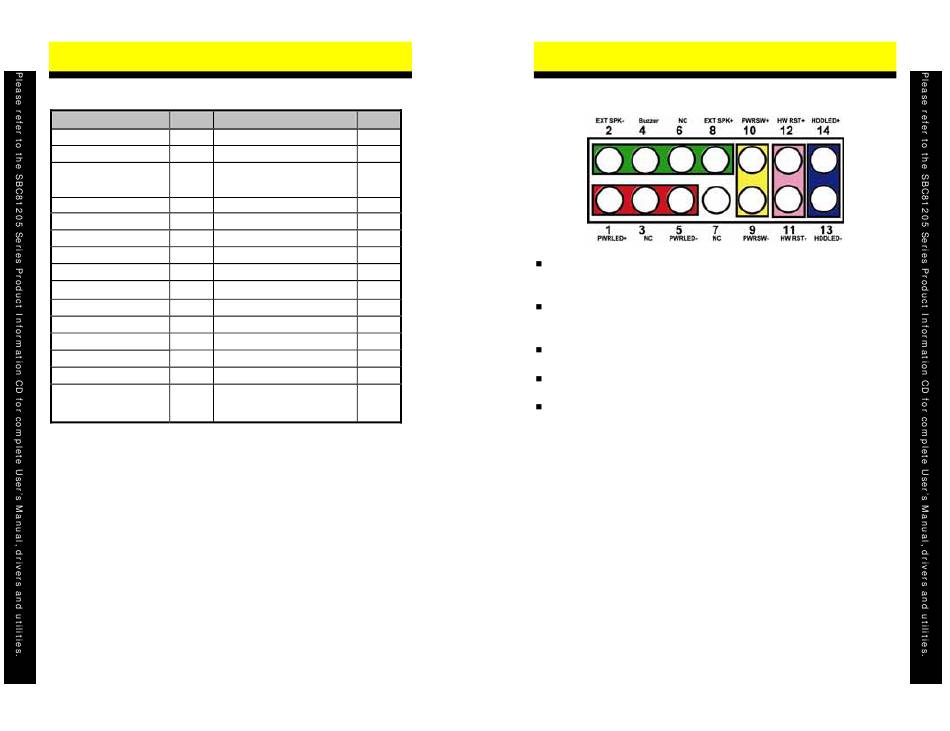

IV. Front Panel Connectors (CN1)
Power LED
Pins 1, 3, 5 connect the system power LED indicator to its respective switch on
the case. Pin 1 is +, and pin 5 assigned to -. Pin 3 is defined as NC.
External Speaker and Internal Buzzer Connector
Pins 2, 4, 6, 8 can be connected to the case-mounted speaker unit or internal
buzzer.
Power Button
Pins 9 and 10 connect the front panel's ATX power button to the card.
Hardware Reset
Pins 11 and 12 are designed for Hardware Reset.
HDD Activity LED
This connector extends to the hard drive activity LED on the control panel. This
LED will flash when the HDD is being accessed. Pins 13 and 14 can be
connected to the hard disk drive and front panel HDD LED.
©
