Roger Access Control System

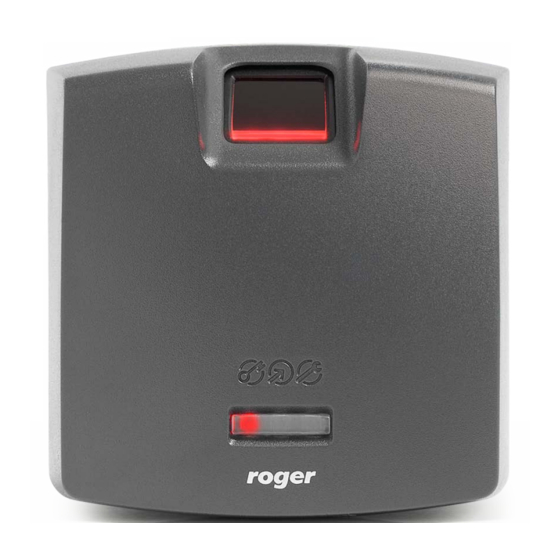

RFT1000 reader in RACS 4
User Manual
Firmware version: 1.2
Hardware version: 1.1
Document version: Rev. F
© 2016 ROGER sp. z o.o. sp.k. All rights reserved. This document is subject to the Terms of Use in their current version published at
the
www.roger.pl
website of the Roger sp. z o.o. sp.k. company (hereinafter referred to as ROGER).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFT1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Roger RFT1000

Summary of Contents for Roger RFT1000

  • Page 1 Hardware version: 1.1 Document version: Rev. F © 2016 ROGER sp. z o.o. sp.k. All rights reserved. This document is subject to the Terms of Use in their current version published at www.roger.pl website of the Roger sp. z o.o. sp.k. company (hereinafter referred to as ROGER).

  • Page 2: Table Of Contents

    4.2 Configuration by means of PR Master software ..............13 4.2.1 Selection of reader type and recognition mode .............. 13 4.2.2 Connection with RFT1000 reader .................. 14 4.2.3 Users .......................... 14 4.2.4 Enrolment of users with fingerprint templates in reader memory (1:N mode) ....15 4.2.5 Enrolment of users with fingerprint templates on MIFARE cards (1:1 mode) ....

  • Page 3: Introduction

    1. I NTRODUCTION Note: Factory new RFT1000 reader is uploaded with firmware v1.4 and it cannot be used in RACS 4 system. In order to use RT1000 in RACS 4 system it is necessary to download firmware v1.2 which is available at www.roger.pl...

  • Page 4: Installation

    RFT1000 in RACS 4 User Manual 2020-05-08 (according to EN 50131-1) relative humidity: 10 to 95% (no condensation) IP code IP41 Dimensions H x W x D 85mm x 85mm x 52mm Weight 160g Certificates 3. I NSTALLATION 3.1 Terminals and connection diagram Fig.
  • Page 5 RFT1000 in RACS 4 User Manual 2020-05-08 Fig. 2 Connection diagram for RFT1000 reader and PR402DR access controller – configuration through Ethernet (recommended) 5/20...
  • Page 6 RFT1000 in RACS 4 User Manual 2020-05-08 Fig. 3 Connection diagram for RFT1000 reader and PR402DR access controller – configuration through RS485 6/20...

  • Page 7: Led Indicators

    3.4 Inputs RFT1000 reader is equipped with two, NO type inputs (IN1 and IN2), which are activated by connection to negative supply pole. By default, inputs are disabled by the they can be configured by means of RogerVDM so they could be used for switching card reader mode.

  • Page 8: Wall Mounting

    RFT1000 in RACS 4 User Manual 2020-05-08 3.5 Wall mounting Fig. 4 RFT1000 installation 8/20...

  • Page 9: Use/Installation Guidelines

    Damages to scanner surface are beyond the scope of warranty.  RFT1000 reader should be installed in shaded and dry place, far from heat and moisture. It is necessary to avoid dust and abrupt temperature changes. The reader cannot be installed in places exposed to direct sunlight.

  • Page 10: Configuration By Means Of Rogervdm

    RogerVDM software, which is available for download at www.roger.pl. Note: In order to connect with reader in local area network (LAN), the computer with RogerVDM software must be in the same subnet. In case of RFT1000 with default IP address, the IP address of computer should be 192.168.0.xxx.

  • Page 11: Connection With Controller

     [001] RACS ID=1 if RFT1000 reader is to operate with ID =1 address  [002] RACS ID=2 or [003] RACS ID=3 if RFT1000 reader is to operate as additional terminal in High Security mode (more information on High Security mode is given in functional manual of PRxx2 series controllers).

  • Page 12: Inputs

    Input lines, which can be displayed by means of the command Configuration in the top menu of RogerVDM software (see fig. 7). When RFT1000 reader is installed in RACS 4 system, only the function [5]: Card Reader Mode is applicable. Other available functions are used beyond RACS systems.

  • Page 13: Configuration By Means Of Pr Master Software

    4.2.1 Selection of reader type and recognition mode After installation of PR Master software and initial configuration of RFT1000 reader by means of RogerVDM, it can be further used in RACS 4 system. Therefore in the top menu of PR Master select the option Tools, then Options and Fingerprint readers tab.

  • Page 14: Connection With Rft1000 Reader

    In order to connect with RFT1000, select the option Fingerprint readers in the main window of PR Master software and then click the button Add. In the window shown in fig. 9, select RFT1000 reader and then select communication channel: Ethernet or RS485. The channel must be the same as previously selected in RogerVDM software and it must be in accordance with applied cabling –...

  • Page 15: Enrolment Of Users With Fingerprint Templates In Reader Memory (1:N Mode)

    Enrolment of user in this mode requires selection of Scan button in the window shown in fig. 10. In the newly opened window select the button Configure in order to upload data to RFT1000 administrator reader and then select the button Read. The memory of such reader shall be overwritten for the period of fingerprint scanning.

  • Page 16: Enrolment Of Users With Fingerprint Templates On Mifare Cards (1:1 Mode)

    Any user can have Master attribute. When the option Master attribute is activated for particular user (see fig. 11) then such user will not be obliged to scan his fingerprint at all RFT1000 readers with activated option Accept Master authorization (see fig. 7). Such user shall be identified only by means of his MIFARE proximity card number.

  • Page 17: User Identification

    Note: In case of RFT1000 with firmware 1.2 or newer, default First sector was changed to 2 and default Encryption key was changed to AAAAAAAAAAAAAAAA. This must be taken into account by administrators who want to upgrade their RFT1000 readers with newer firmware and want to use previously configured proximity cards in 1:1 recognition mode.

  • Page 18: Card Code

    Default settings of RFT1000 reader in Card code area is as follows: CSN code length = 7, SSN code length = 0. In case of such settings, the RFT1000 reads 7 bytes of CSN code only. In case of exemplary settings: CSN code length = 3, SSN code length = 2, RFT1000 reader during card identification would read code consisting of 3 bytes of CSN code and 2 bytes of SSN code.

  • Page 19: Full Memory Reset

    3. Select the command Tools in the top menu of RogerVDM software and then select Update Firmware 4. In the opened window select RFT1000 firmware file (*.frg extension) by means of the button Select file. 5. Select the button Update in order to upload the firmware to RFT1000.

  • Page 20: Ordering Information

    RFT1000 in RACS 4 User Manual 2020-05-08 5. O RDERING INFORMATION Table 5 Ordering information Product Description RFT1000 Fingerprint and MIFARE Ultralight/Classic proximity card reader. MFC-2 13.56 MHz MIFARE Classic ISO size thin PVC card, 1k bytes memory. MFC-3 13.56 MHz MIFARE Classic ISO size thin PVC card, 4k bytes memory.
