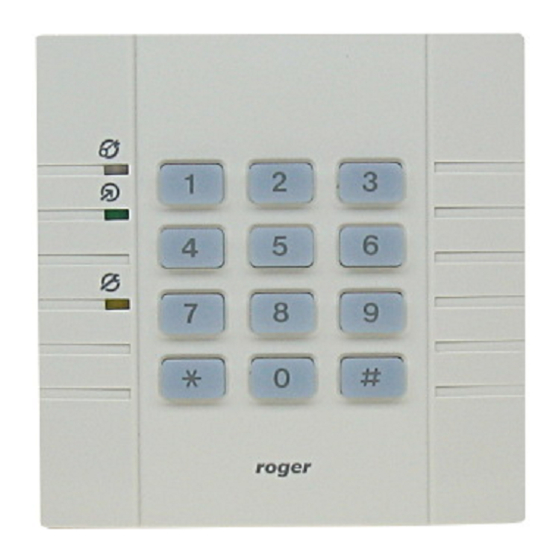

Summary of Contents for Roger PR302

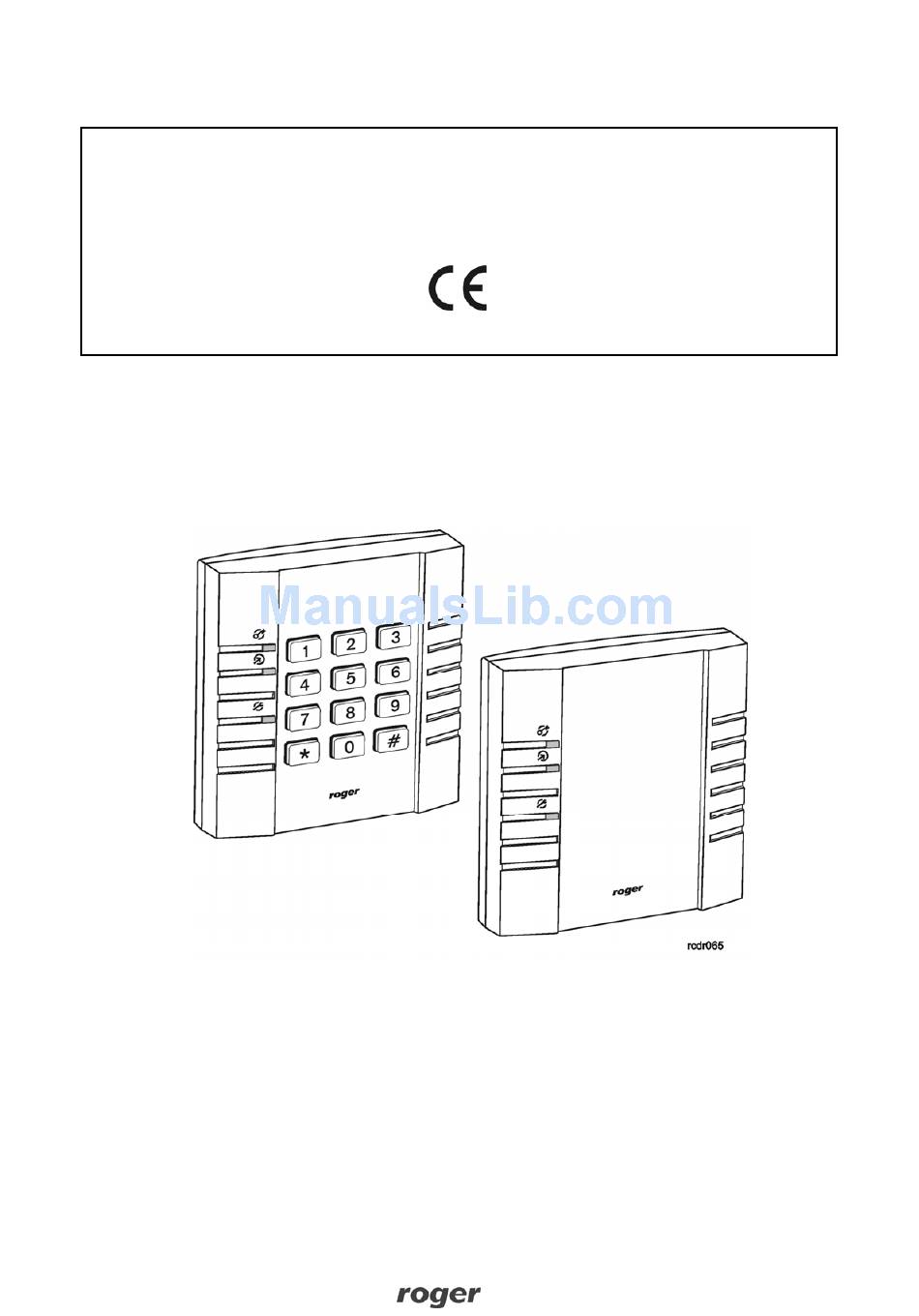

- Page 1 PR302 v2.0 Installer Manual Rev. B...
-
Page 2: Installation
Installation The PR302 can be installed in indoor location only. All electrical connections must be made before power supply will be applied. Factory new unit is configured for address ID=00 and has programmed MASTER PIN (1234) and MASTER card (delivered with the new device). The MASTER card/PIN can be used for initial testing of the controller - the single use of MASTER card/PIN activates momentarily REL1 output (for approx. - Page 3 8/19/2008 Inputs The PR302 offers three programmable inputs (IN1, IN2 and IN3). All of them have the same electrical structure and can be configured as NO or NC line. Each input is internally biased to supply plus (+12V) through 5.6kΩ resistor what makes that supply plus is observed on the free (not connected) input.
- Page 4 Access terminals (readers) and extension modules (e.g. XM-2, XM-8) can be connected to controller through CLK and DTA lines. Controller can operate either with Roger access terminals (using RACS data output format) or with any other type of readers which are equipped with Wiegand or Magstripe interfaces.
-
Page 5: Memory Reset
PR302 v1.0 Installer Manual EN Rev. B.doc 8/19/2008 Memory Reset The Memory Reset procedure clears all existing data in memory, restores default settings of configuration, enables for enrolment of the new MASTER card/PIN and new ID number (address) of the controller. There are two methods to enter Memory Reset: •... -
Page 6: Firmware Upgrade
(every new firmware version is published on www.roger.pl). Our customers are advised to register at web site so Roger will let inform when new versions are ready for download. The new firmware can be downloaded without removal of the controller from live installation. - Page 7 PR302 v1.0 Installer Manual EN Rev. B.doc 8/19/2008 Connection terminals Name Function +12V Power supply plus 0V (GND) Power supply minus, also reference ground for inputs, RS485 and CLK/DTA lines IN1 input, internally pulled to supply plus through 5.6kΩ resistor IN2 input, internally pulled to supply plus through 5.6kΩ...
- Page 8 PR302 v1.0 Installer Manual EN Rev. B.doc 8/19/2008 Ordering information PR302 PR302 access controller RM-2 Relay module with plastic enclosure, the RM-2 offers two relays with one NO/NC contact 1.5A/24V rated, relay contacts are protected by over-voltage components, each relay can be triggered by applying supply plus or minus, the...
- Page 9 PR302 v1.0 Installer Manual EN Rev. B.doc 8/19/2008 - 9 -...
- Page 10 PR302 v1.0 Installer Manual EN Rev. B.doc 8/19/2008 - 10 -...
