Summary of Contents for Roger RKD24CT

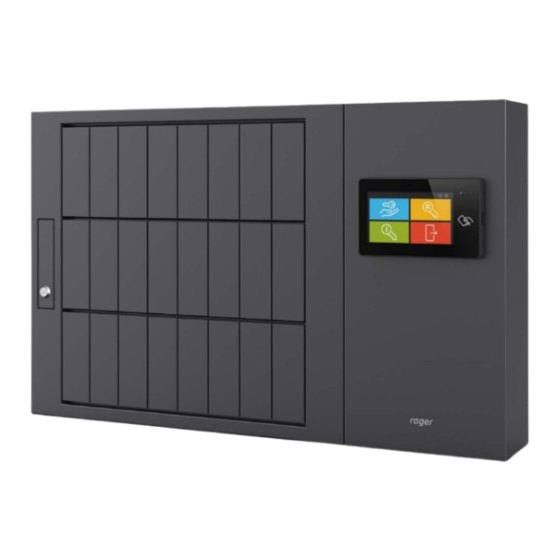

- Page 1 Roger Access Control System RKD24CT Installation Manual Product version: 1.0 App version: 1.5.x Document version: Rev. B...
-
Page 2: Table Of Contents
RKD24CT Installation and Configuration Manual.docx 12.06.2024 Contents: Design and application ........................ 3 Characteristics ..........................3 Power supply..........................4 Cabinet ............................5 RFID fobs ............................ 5 MD70 panel ..........................6 Identification ..........................6 Other proximity cards and biometrics ..................7 Connection with the alarm control panel ..................7 Release all keys from external system ................... -
Page 3: Design And Application
VISO management software (RACS 5 system). Up to six cabinets can be operated from a single panel. In such a system, the RKD24CT-EXT or RKD32EXT cabinets are connected to the RKD24CT electronic key cabinet. Prior to placing keys inside cabinet, they must be firmly attached to included RFID fobs. -
Page 4: Power Supply
Cabinet door opening detection • Cabinet enclosure opening detection • RAL7016 colour metal enclosure • RKD24CT dimensions: 600 x 969 x 182 mm • RKD24CT-EXT dimensions: 600 x 677 x 182 mm • Weight RKD24CT: 48,5kg • Weight RKD24CT-EXT: 39kg •... -
Page 5: Cabinet
RKD24CT Installation and Configuration Manual.docx 12.06.2024 Fig. 2 Connection of 230VAC mains power to the terminal block In the event of power failure, fobs and keys can be released in an emergency after connecting a powerbank (with a minimum 2A rated output) to a USB port secured with a lockable flap located on the left side and then unlock the selected containers by pressing buttons there. -
Page 6: Md70 Panel
(PCN) in selected and encrypted sectors of card memory. The use of PCN prevents card cloning and consequently it significantly increases security in the system. More information on MIFARE cards with PCN is given in section 7 and in AN024 application note which is available at www.roger.pl. EM 125kHz cards By default, the panel also reads the serial number of EM 125kHz cards. -
Page 7: Other Proximity Cards And Biometrics
RS485 A and RS485 B screw terminals of MCX4D module. If it is necessary to use other identification method which is not offered by Roger, then external reader with Wiegand interface can be connected. In such scenario an additional MCX102 expander with ID=915 address must be installed inside the cabinet. -
Page 8: Installation
Settings / Configuration / Detect devices) in order to properly handle all slots. RKD24CT-EXT must first be connected with the RJ45 cable to the connection module in the control panel housing, and then the power supply should be connected. - Page 9 RKD24CT Installation and Configuration Manual.docx 12.06.2024 Fig. 7 Base of the control panel housing Fig. 8 Back cover 9/23...
- Page 10 RKD24CT Installation and Configuration Manual.docx 12.06.2024 Fig. 9 Wall mounting Fig. 10 Connection of additional cabinets (RKD24CT-EXT, RKD32EXT) to main cabinet (RKD24CT) 10/23...
-
Page 11: Support For Optional Function
Master user with 9999 password. You must also select the operating mode of the device: • Any fob position: keys can be returned to any socket (Note: not for use in RKD24CT) • Fixed fob position: each key is assigned a socket to return it to If items other than keys are stored in the cabinet, after selecting the Cabinet with general purpose assets option, the text phrases "key"... - Page 12 RKD24CT Installation and Configuration Manual.docx 12.06.2024 Daily service and configuration of RKD32 should be done by means of user account with the appropriate authorization. Note: Both default passwords should be changed to your own passwords as described in section 17.
- Page 13 RKD24CT Installation and Configuration Manual.docx 12.06.2024 • White: No unconfirmed alarms. • Orange: Alarm(s) from the past is/are in the memory of device. • Red: At least one unconfirmed alarm is still on. When is selected then office mode will be started after returning to the starting screen. In office mode door lock and (depend of configuration) key locks are released indefinitely but keys which are reserved with blocking will not be released.
- Page 14 RKD24CT Installation and Configuration Manual.docx 12.06.2024 Fig. 15 Settings window Keys When selected then the list of keys enrolled in the system is displayed. New key can be enrolled by selection of Add command and then by reading fob at MD70 reader or inserting the fob into one of unoccupied slots.
- Page 15 RKD24CT Installation and Configuration Manual.docx 12.06.2024 Value 0 means no limit. Additionally, Quick key get mode and Master exemption can be enabled. The first option enables to release authorised keys automatically when user is logged at MD70 panel so the manual selection of key from the list is not necessary.
- Page 16 RKD24CT Installation and Configuration Manual.docx 12.06.2024 position, and for the user who has no access to the application settings. Default value: OFF. The parameter activates automatic logout after getting one key and Shortcut: logout after get single reduces the idle time in the get key activity to 10s. Note - the parameter works only for the "...
- Page 17 RKD24CT Installation and Configuration Manual.docx 12.06.2024 Parameter enables RKD32 configuration and management via web Web access enable browser. Parameter defines communication port for web browser access. Due Port to security reasons the port cannot be below 1024. Default value: 8888.
-
Page 18: Configuration In Standalone Mode
Command starts app that enables file navigation at MD70 panel. Files Command displays change log. About Command displays license agreement for Roger software. License Command displays information on uploaded RKD32 licenses in regard License file of network mode and management via web browser. -
Page 19: Configuration Via Web Browser
RKD24CT Installation and Configuration Manual.docx 12.06.2024 3. In the next window name the authorisation and click Location to indicate keys which can be collected by user with this authorisation. 4. Optionally click Schedule and assign previously created schedule to limit the authorisation to specified time periods. -
Page 20: Configuration In Network Mode
RKD24CT Installation and Configuration Manual.docx 12.06.2024 Note: Configuration via web browser requires license purchase. You can verify if your RKD32 has the proper License file license selecting command (table 4). Fig. 16 RKD32 web app 16. Configuration in network mode RKD32 key cabinet can be remotely operated in network mode. -
Page 21: Troubleshooting
Ethernet network or Wi-fi and it must be connected to Internet. After selection of Remote support command (table 4) Anydesk app is started. Reveal the number from the app to Roger technician so he could connect remotely. Then, accept the connection request from Roger technician on the RKD32 panel. -
Page 22: Specification
ISO/IEC14443A MIFARE Ultralight, Classic, Desfire EV1 and Plus proximity Identification methods cards and PINs (4-16 digits) Reading range Up to 7 cm Up to 5 meters between RKD24CT and RKD24CT-EXT Distances IP41 IP Code Class I, indoor general conditions, temperature: +5°C to +40°C, relative... -
Page 23: Ordering Information
RKD24CT Installation and Configuration Manual.docx 12.06.2024 20. Ordering information Table 7. Ordering information Electronic key cabinet with individual key containers and 7” touch control panel;24 RKD24CT RFID ID fobs; key fobs attached to keys by user; 230 VAC power supply Electronic key cabinet with individual key containers without control panel;...
