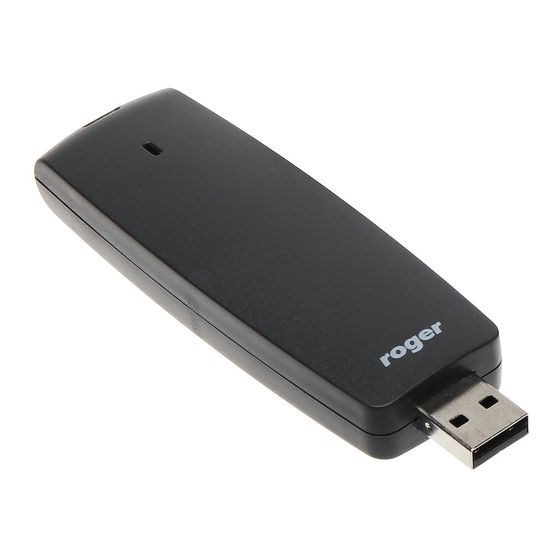

- Page 1 Roger Access Control System RUD-3-DES Operating manual Firmware version: v2.3 Hardware version: v2.x Document version: Rev. F...
-
Page 2: Product Designation
ROXIMITY ARDS RUD-3-DES is factory set for chip serial number (CSN – Chip Serial Number) reading. For higher security level reading rules can be changed to handle programmable secure sector numbers (PCN – Programmable Card Number) in such case a management tool RogerVDM must be used for configuration. - Page 3 OGER EADER PROGRAM The Roger MiniReader (v1.1.12 or newer) displays the list of available USB readers connected to the PC. In order to read a single card, you need to select the Read single card command, and then put a card close to the reader. When the code is read, it automatically appears in the Card codes window.
-
Page 4: Third Party Software
RACS 5 SYSTEM SUPPORT RUD-3-DES is well suited for RACS systems and can be used as an administrator reader for entering new card numbers into access control applications. From the list of available readers for PR Master or VISO control program choose RUD-3-DES and follow application reading steps. - Page 5 RUD-3-DES Operating Manual.docx 2024-05-13 From the top menu list select Device > New than choose Your reader version and set USB communication channel for USB-HID class device, finally press Connect Fig. 6 Device select window The program will establish a connection with the reader and automatically switch to the Configuration window.
-
Page 6: Device Installation
RUD-3-DES reader and present it on the list of available devices. The RUD-3-DES reader can be connected directly to the PCs USB socket or using a cable with magnetic stand provided together with the reader. Using this cable is convenient because when you use a magnetic stand, the reader can be located at computer’s case or any other metallic part... -
Page 7: Technical Data
RUD-3-DES Operating Manual.docx 2024-05-13 software update begins and must be carried out in accordance with the program instructions displayed during the process. Warning: It is strongly recommended to act in accordance with program instructions, waiver of required actions connected with violations of the update rules can damage Your device. Note that firmware update process is done entirely at your own risk. -
Page 8: Ordering Information
Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp. k. 82-400 Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
