Summary of Contents for Roger F7

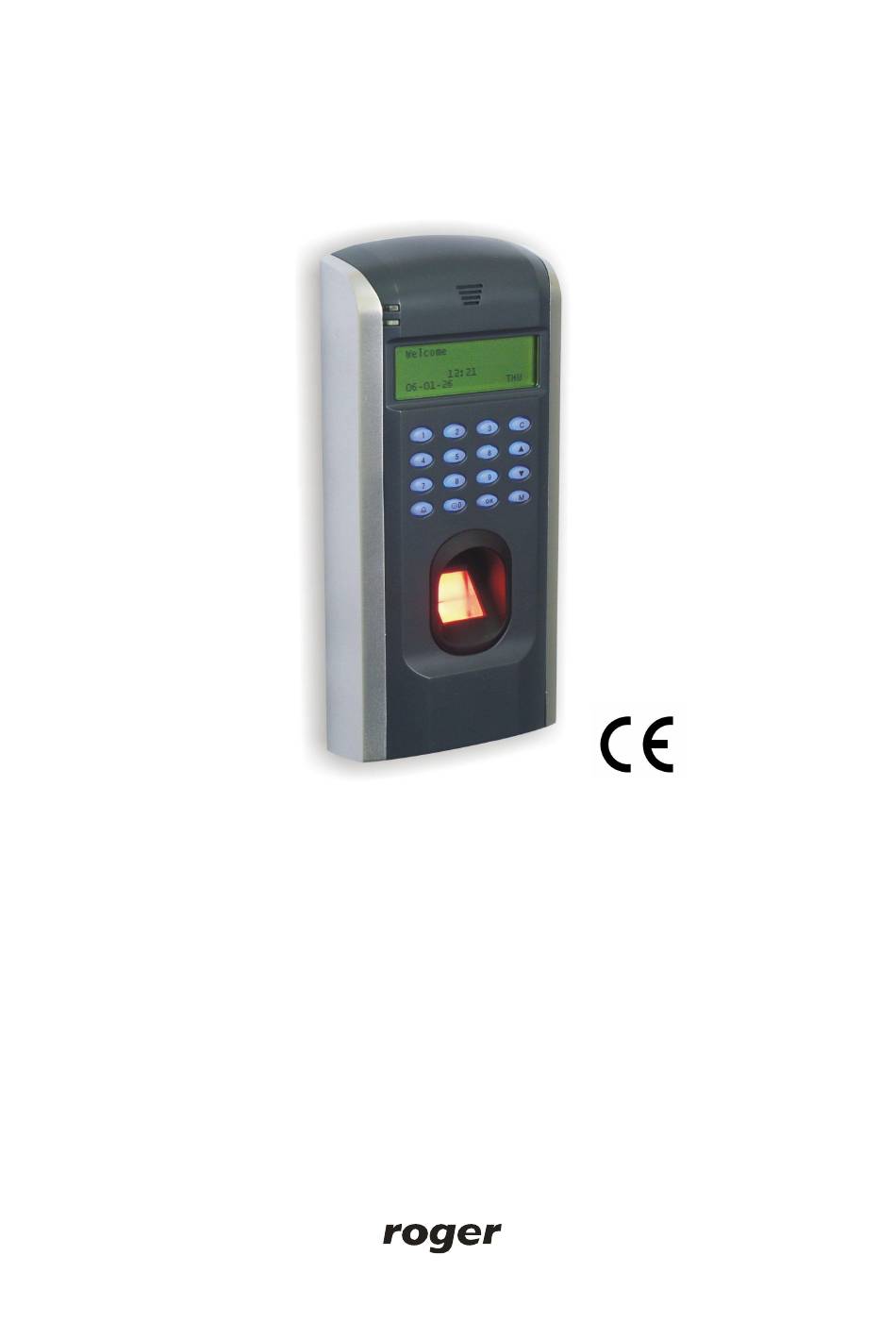

  • Page 1 F7 Fingerprint Reader Integration in Roger Access Control System...
  • Page 2: Table Of Contents

    Setting the reader for connection to RS485 ......13 7.3. Importing fingerprints from the reader .........15 7.3.1. Importing multiple fingerprint patterns from the F7 reader ... 15 7.3.2. Importing fingerprint patterns for individual user ......17 7.4. Uploading fingerprint patterns to F7 readers ......19 7.5.
  • Page 3: Glossary And Terms

    F7 unit, or visit his web site. General description F7 is an easy to use biometric device, which can work both in an standalone mode or as a slave device connected to the access controller. The F7 is equipped with an LCD display, a keypad and an optical fingerprint sensor.
  • Page 4: Installation And Use Guidelines

    Each user has its ID number (ID= 00001.. 65534) and 1-10 fingerprints patterns. The user’s ID corresponds to the position of the user in the F7 reader’s users list and should be identical as the user’s ID in the RACS system.
  • Page 5: User Enrollment Methods

    F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ pattern is stored in the reader's memory and can be later imported to the RACS system database. 6.1.1. User enrollment methods There are three different methods of user enrollment:  Enroll FP — only fingerprint of the user is enrolled;...
  • Page 6 F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ Third Press message appears. If the system does not recognize the fingerprint properly during the procedure, the Please Try Again...message appears. The procedure lasts until the system properly identifies three consecutive attempts of storing the fingerprint which belongs to the same finger.
  • Page 7: User Identification

    ID number is sent over Wiegand outputs (lines: D0 and D1) to the access controller. When F7 reader is idle for specific time (10 minutes by default) it enters standby mode. In this state, the process of users identification can not be performed. The reader switches to the active mode after the user presses any key on the keypad.
  • Page 8: Using F7 Reader In The Racs

    _________________________________________________________________________________________ Using F7 reader in the RACS Started from release 4.2, the RACS system is prepared for using a F7 Fingerprint reader. In order for the reader to properly operate in the RACS system, ID numbers of users defined in the reader's memory should be the same as in the database of the RACS system.
  • Page 9: Setting Up The Reader For Operation With The Racs System

    _________________________________________________________________________________________ 7.2. Setting up the reader for operation with the RACS system Before the F7 reader can work with the RACS system, it should be properly configured. Basically it covers setting up the communication options and the relevant data transfer parameters.
  • Page 10: Setting The Reader For Connection To Ethernet Network

    F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ Note: For security reasons, the process of setting up the reader should start from enrolling its Supervisor. For instructions on how to enroll the Supervisor, refer to the Programming the Admin user section, in 5.1.2 section of this manual.
  • Page 11 After the reader is configured, the PR Master System should be properly set up. In order to do this, follow these steps: Start the PR Master application. From Edit menu select F7 Fingerprint Readers. The F7 Fingerprint readers dialog box appears. _________________________________________________________________________________________...
  • Page 12 F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ To add a new fingerprint reader click Add. The F7 Configuration dialog box will display. In the Reader description or name field enter the name of the reader. In the Communication port list box select TCP/IP. In the IP field enter the IP Address of the device (the same you have set up in the reader).
  • Page 13: Setting The Reader For Connection To Rs485

    F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ Click OK to close F7 Fingerprint Readers dialog box. 7.2.2. Setting the reader for connection to RS485 In order for the reader to co-operate with the RACS through RS 485 data bus, serial communication options (data transfer speed, device number) must be set and the RS232 and RS485 communication mode need to be switched on.
  • Page 14 2007-10-29 _________________________________________________________________________________________ The F7 Fingerprint readers dialog box appears. To add a new fingerprint reader click Add. The F7 Configuration dialog box will display. Enter the name of the reader. In the Communication port drop-down list select communication port the RACS system has been connected to. The Device address field displays.
  • Page 15: Importing Fingerprints From The Reader

    10. Click OK to close F7 Fingerprint Readers dialog box. 7.3. Importing fingerprints from the reader After fingerprints of users have been enrolled in the F7 reader, they can be imported to the RACS. Fingerprint patterns can be imported to the database of the RACS using one of the two modes available: ...
  • Page 16 F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ Select Users tab. The following dialog box appears: Select command Import/Read fingerprint templates from reader..The following dialog box appears: Select reader from which you want to import fingerprint patterns. Click Read. The following window appears showing operation progress. Depending on the number of users for whom fingerprint patterns are being imported it can last from several seconds to several minutes.
  • Page 17: Importing Fingerprint Patterns For Individual User

    F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ 7.3.2. Importing fingerprint patterns for individual user Importing fingerprint patterns can be also performed in the individual mode, i.e. during defining or editing properties of the specific user. In order to do so, follow these steps: Select Users tab.
  • Page 18 F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ In the Fingerprint templates area click the Read from the reader button. The following dialog box appears: Select reader from which you want to import fingerprint patterns. Click Read. If the system does not find the fingerprint pattern of the user selected in the...
  • Page 19: Uploading Fingerprint Patterns To F7 Readers

    7.4. Uploading fingerprint patterns to F7 readers Once the fingerprints patterns are enrolled into RACS database, they can be sent to all F7 readers in access system In order to do so, follow these steps: From Edit menu select F7 Fingerprint Readers.
  • Page 20: Configuring Access Controller For Operation With F7 Reader

    Supervisor rights to the MASTER user of the RACS. Because the MASTER user in the RACS has the ID =0, which does not exist in the F7, the MASTER user in F7’s is assigned ID=5555 and the PIN code of the MASTER user as defined in the PR Master.
  • Page 21 In the PR Master application select Networks tab. The following dialog box containing the list of networks will appear: Select network the F7 reader has been connected to, and click Controllers. The Controllers in network: Network XX dialog box appears, where XX indicates the name of the network chosen.
  • Page 22 F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ Select TerminalID1 or TerminalID0 tab depending on the number, the reader is operating in the system (ID1 or ID0). The following dialog box will appear: _________________________________________________________________________________________ Page 22...
  • Page 23 F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ From the Type drop-down list select Wiegand reader – UserId (BIN). Click OK. When you close the window, the following dialog box appears: Click Yes. The process of transferring data to the controller will begin. While...
  • Page 24: Technical Specification

    F7 EN Rev. D.doc 2007-10-29 _________________________________________________________________________________________ Technical specification Technical specification Input voltage 10 — 15 VDC Standby mode: 50 mA Current consumption Active mode: 400 mA Outputs Relay output 3A/12VDC. Communication interfaces TCP/IP, RS232 or RS485 Verification speed max. 2 seconds FRR (False Rejection Rate) max.
