Roger Access Control System

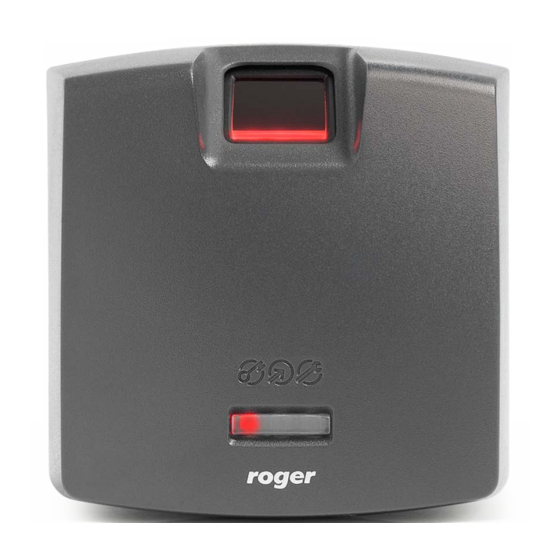

RFT1000 reader
User Manual
Firmware version: 1.1.2 or newer
Hardware version: 1.0
Document version: rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFT1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roger RFT1000

Summary of Contents for Roger RFT1000

  • Page 1 Roger Access Control System RFT1000 reader User Manual Firmware version: 1.1.2 or newer Hardware version: 1.0 Document version: rev. B...

  • Page 2: Table Of Contents

    4.2 Configuration by means of PR Master software ..............11 4.2.1 Selection of reader type and recognition mode ............. 11 4.2.2 Connection with RFT1000 reader ................. 11 4.2.3 Users ........................12 4.2.4 Enrolment of users (fingerprint templates in database) ..........13 4.2.5 Enrolment of users (fingerprint templates on Mifare cards) ..........

  • Page 3: Introduction

    1.1 This manual This manual contains minimum information that is necessary to properly install and configure RFT1000 readers in RACS 4 access control system. Additional information on RACS 4 system can be found in following documents, which are available at www.roger.pl: ·...

  • Page 4: Installation

    3. I NSTALLATION 3.1 Terminals and connection diagram Fig. 1 RFT1000 terminals Table 2. RFT1000 terminals Terminal Description Positive power supply contact, 12VDC Negative power supply contact and reference potential for RS485 communication bus and input lines Tamper switch, 24V/50mA...
  • Page 5 Fig. 2 Connection diagram for RFT1000 reader and PR402DR access controller – configuration through Ethernet (recommended) Page 5 of 17...
  • Page 6 Fig. 3 Connection diagram for RFT1000 reader and PR402DR access controller – configuration through RS485 Page 6 of 17...

  • Page 7: Led Indicators

    · In case of connection through Ethernet port, twisted pair cable should be unisolated in the shortest possible distance and wires should remain twisted in the longest possible distance. · RFT1000 can be mounted to the wall be means of screws on standard flush mounting box (Ø 65 mm).

  • Page 8: Configuration By Means Of Rogervdm

    RogerVDM software, which is available for download at www.roger.pl. Note: In order to connect with reader in local area network (LAN), the computer with RogerVDM software must be in the same subnet. In case of RFT1000 with default IP address, the IP address of computer should be 192.168.0.xxx.
  • Page 9 Fig. 4 Connection window in RogerVDM software Fig. 5 RFT1000 configuration in RogerVDM software Page 9 of 17...

  • Page 10: Connection With Controller

    · [001] RACS ID=1 if RFT1000 reader is to operate with ID =1 address · [002] RACS ID=2 or [003] RACS ID=3 if RFT1000 reader is to operate as additional terminal in High Security mode (more information on High Security mode is given in functional manual of PRxx2 series controllers).

  • Page 11: Configuration By Means Of Pr Master Software

    In order to connect with RFT1000, select the option Fingerprint readers in the main window of PR Master software and then click the button Add. In the window shown in fig. 7, select RFT1000 reader and then select communication channel: Ethernet or RS485. The channel must be the same as previously selected in RogerVDM software and it must be in accordance with selected cabling –...

  • Page 12: Users

    Fig. 7 Connection with RFT1000 in PR Master software If Ethernet communication channel is selected then RFT1000 IP address and port should be detected automatically by PR Master software if the reader and PC with RogerVDM are in the same subnet and communication between them is not blocked.

  • Page 13: Enrolment Of Users (Fingerprint Templates In Database)

    (see fig. 5). As long as the terminal of input with [92] function is shorted with GND, the Mifare reader of RFT1000 can be used for reading card number. Card number can be read after selection of Read card… button and indicating the controller with RFT1000 reader.

  • Page 14: User Identification

    Any user can have Master attribute. When the option Master attribute is activated for particular user (see fig. 9) then such user will not be obliged to scan his fingerprint at all RFT1000 readers with activated option Accept Master authorization (see fig. 5). Such user shall be identified only by means of his Mifare proximity card number.

  • Page 15: Ssn Code Programming

    Default settings of RFT1000 reader in Card code area is as follows: CSN code length = 7, SSN code length = 0. In case of such settings, the RFT1000 reads 7 bytes of CSN code only. In case of exemplary settings: CSN code length = 3, SSN code length = 2, RFT1000 reader during card identification would read code consisting of 3 bytes of CSN code and 2 bytes of SSN code.

  • Page 16: Firmware Update

    1. Select the option Tools in the top menu of RogerVDM software and then select Update firmware 2. In the newly opened window select RFT1000 firmware file (*.frg extension) by means of the button Select file 3. Select the button Update in order to upload the firmware to RFT1000 RFT1000 keeps all its settings (including IP address) after firmware update.
  • Page 17 Weight of the equipment is specified in the document. Contact: Roger sp.j. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
