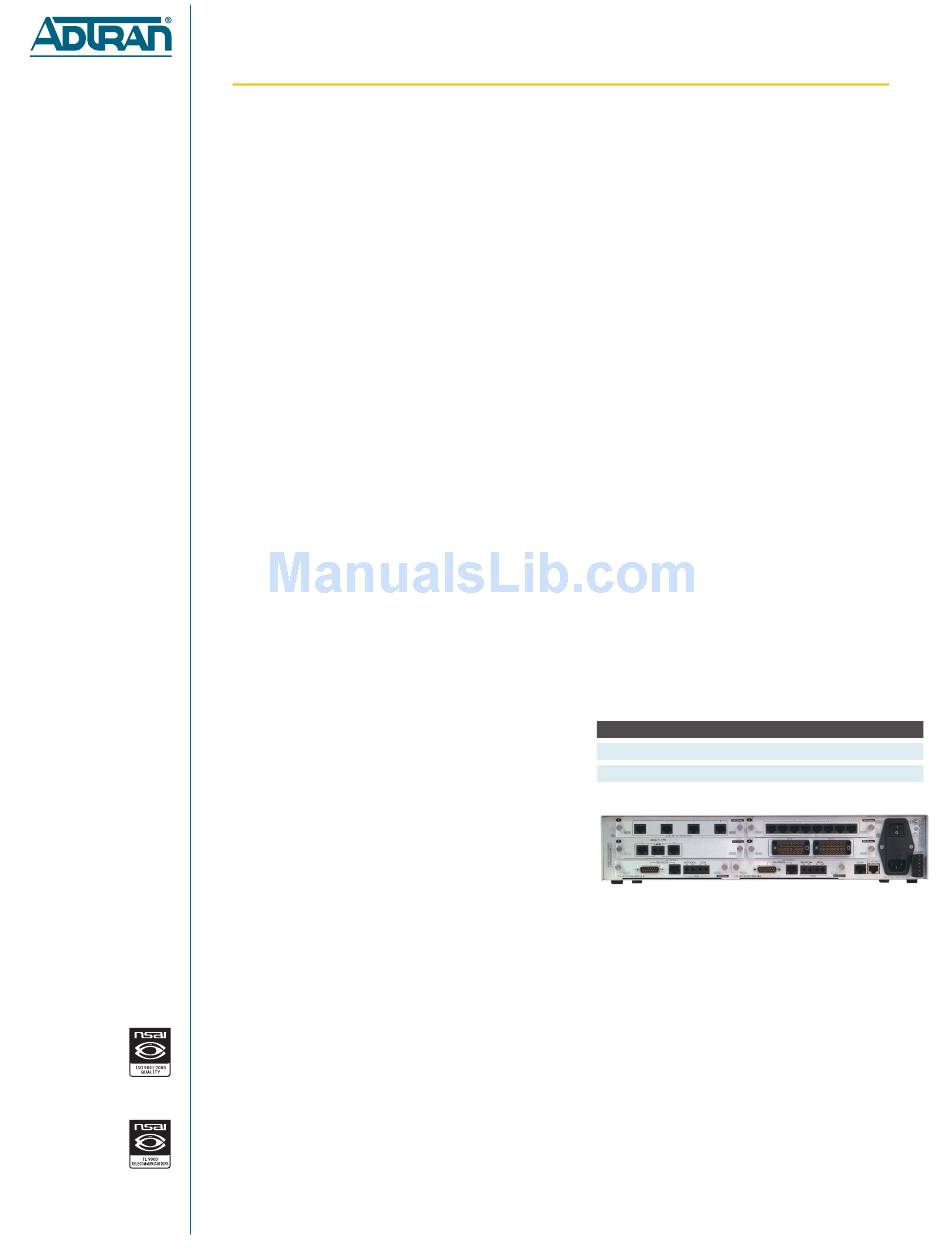

ATLAS 550
Enterprise Integrated Access Device

Product Specifications

T1/PRI Network Interface module
I
One built-in T1/DSX-1/PRI port
I
Full or fractional T1 support
I
Connects with network or user equipment
under software control
I
Built-in CSU
I
Signaling ISDN D Channel, Robbed-Bit: E&M,
FXS, FXO, ground and loop start, DID conversion
between T1 and ISDN
I
Line Rate: 1.544 Mbps +/-75 bps
I
Physical Interface: RJ-48C, modular 8-pin
I
Framing: D4(SF)/ESF
I
Line Code: AMI/B8ZS
I
Input Signal: 0 to –36 dB
I
Line Length: DS-1: 6,000 ft (24 AWG), DSX-1: 655 ft
LAN Features
I
Built-in 10/100BaseT Ethernet port
IP Router Features
I
RIP V1, RIP V2, ICMP, ARP, IARP, UDP Relay, OSPF
Frame Relay
I
RFC 1490 encapsulation
Link Management
I
ANSI T1.617-D (Annex D)
I
ITU-T Q.933-A (Annex A)
I
LMI (Group of four)
I
Automatic link management protocol discovery
Congestion Control
I
FECN/BECN, Discard Eligible (DE)
Quality of Service
I
User configurable DLCI priorities
I
G.723.1 voice compression

Switch Compatibility

I
Lucent 4ESS/5ESS, Nortel DMS-100/250, GTD-5,
NI-1 and NI-2 management features
I
SNMP, MIB II (RFC1213), DS-1 MIB (RFC1406)
and Enterprise
I
Loopbacks, QRSS test patterns
I
Alarm contacts
Frame Relay Performance Stats
I
TX/RX packets, state changes, signaling errors,
TX/RX full status, TX/RX link integrity status,
FECN/BECN count, DE count
I
Min/Max/Avg delay, dropped packets
Specifications subject to change without notice. ATLAS is a trademark of ADTRAN, Inc.
ADTRAN is a registered trademark of ADTRAN, Inc. All registered trademarks and trade-
marks mentioned in this publication are the property of their respective owners.
Frame Relay Capacity
I
300 PVCs per system
I
5500 packets per second
Physical
I
Dimensions: 17.08" W, 11.67" D, 3.47" H
I
Weight: 18.3 lbs
Environment
I
Operating Temperature: 0° to +45°C
I
Storage: -20° to +70°C (-4° to 158°F)
I
Relative Humidity: Up to 95%, non-condensing
Power
I
AC Power: 90/240 VAC, 50/60Hz
Agency Approvals
I
UL 1950, CUL
I
FCC Part 15 (Class A) and FCC Part 68
Product Includes
I
ATLAS System CD (Includes ADTRAN Utilities TFTP
Server, VT100 Client, Telnet; System Manual; System
MIBS; Application Notes; Module Quick Start Guides;
ADOBE Acrobat Reader), one 15 ft RJ-48C straight-
through cable, one RJ-48 to DB-25 adapter, one 6 ft
straight cable
Ordering Information
Equipment
ATLAS 550 AC, with T1/PRI NIM,
Frame Relay Software
Part #
1200305L2
