Installing the T1 Network Interface Module
Figure 1 represents the actions required for proper placement of the T1 Network Interface Module. Perform
the following steps to install the network module:
1.
Remove the cover plate from the appropriate Network slot.
2.

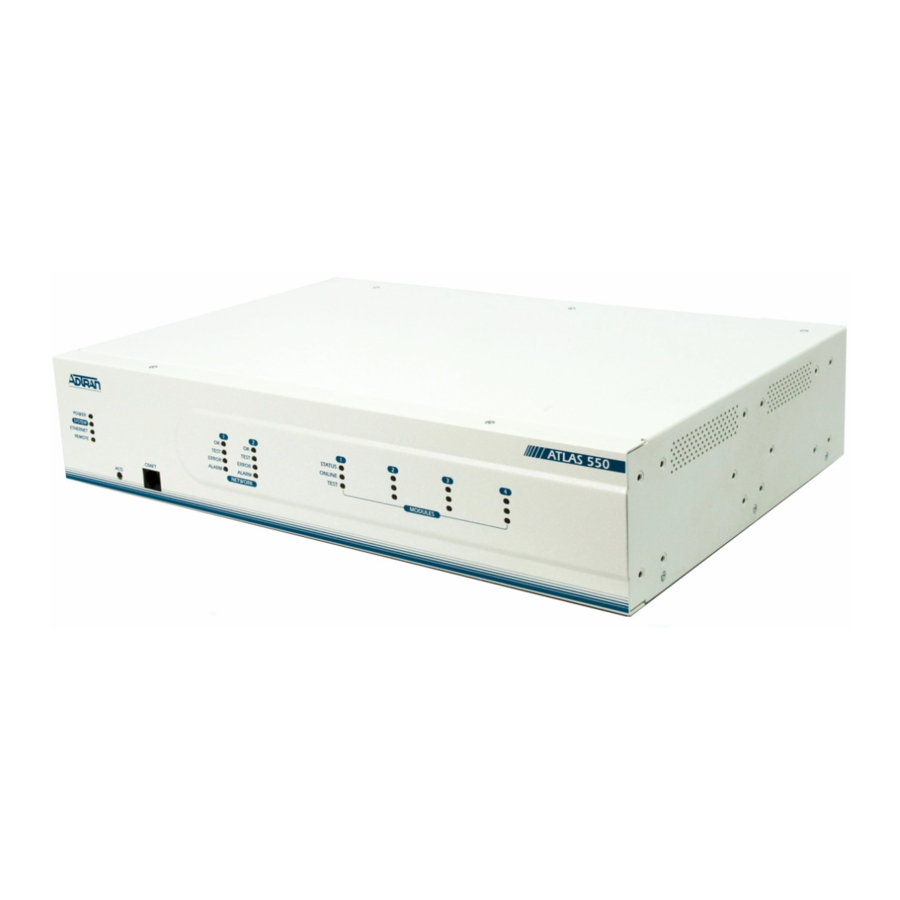

Slide the T1 Network Interface Module into the ATLAS 550 chassis until the module is firmly seated
in the ATLAS 550 unit.
3.
Fasten the thumbscrews at both edges of the network module. Tighten with a screwdriver.
4.
Connect the cable to the associated device.
5.
Complete the installation of any remaining modules and the Base Unit as specified in the Installation
chapter of the ATLAS 550 User Manual.
See the ATLAS 550 User Manual for operation, configuration, and detailed specifications on the T1 Network
Interface Module (ADTRAN P/N 1200307L1).
WARNING:
Option modules are intended to be serviced by qualified service personnel only.
61200307L1-19B
Installation Instructions
T1 Network Interface Module
P/N 1200307L1
Remove Cover Plate
Install Module
Figure 1. Installing the T1 Network Interface Module
T1 Network Interface Module Installation Instructions
April 2000
61200307L1-19B
O
I
1 of 1
