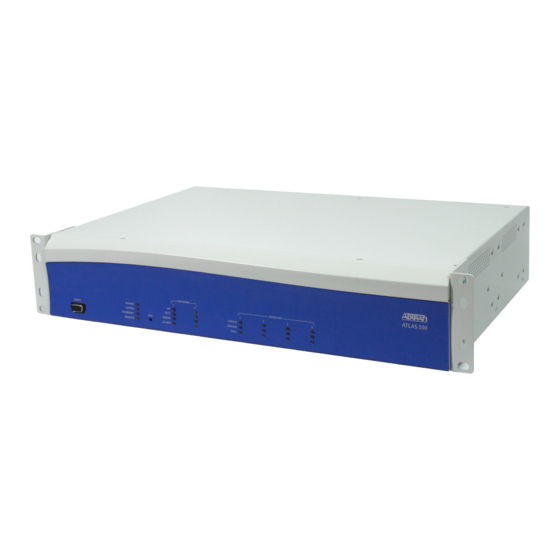

ADTRAN ATLAS 550 Configuration Manual
Cisco academy atlas 550
Hide thumbs
Also See for ATLAS 550:
- System manual (412 pages) ,
- User manual (262 pages) ,
- Q&a (22 pages)
Related Manuals for ADTRAN ATLAS 550
Summary of Contents for ADTRAN ATLAS 550
-
Page 1: Configuration Guide
An ADTRAN Quick Start Guide Cisco Academy ATLAS 550 ® Configuration Guide An easy, step-by-step procedure for configuring an ATLAS ™ 550 for WAN emulation of ISDN (PRI, E1/PRA, BRI ‘U’, BRI ‘S/T’), analog POTS, and Frame Relay circuits. - Page 2 Introduction Acting like a central office switch, the ATLAS 550 can emulate Frame Relay, ISDN and analog circuits. Network engineers, design and test engineers and classroom instructors can easily stage real-world circuits and “what if ” scenarios, test new technologies, or configure equipment without purchasing live circuits or incurring toll charges from a carrier.
- Page 3 ATLAS 550 ISDN BRI Switch Emulation Step 1 – Create the Dial Plan User Termination for the BRI line and select Slot/Port Step 2 – Assign the phone numbers for the BRI line in the “Incoming Number Accept” list Step 3 – Assign...
- Page 4 ATLAS 550 ISDN PRI Switch Emulation Step 1 – Create the Dial Plan User Termination, select Slot/Port, and PRI Signaling Step 2 – Assign the phone number(s) for the PRI line in the “Incoming Number Accept” list Step 3 – Assign the...
- Page 5 ATLAS 550 Frame Relay Switch Emulation Step 1 – Create Packet Endpoints and select Frame Relay Protocol for each Frame Relay Link Step 2 – Assign Signaling Role to “Network” and Signaling Type (Annex D) Step 3 – Create DLCIs for the PVCs...
- Page 6 V.35 Slot/Port Step 6 – Assign bandwidth to each V.35 Slot/Port for each Frame Relay Link ATLAS 550 Analog POTS Switch Emulation Step 1 – Create the Dial Plan User Termination for the Analog line and select Slot/Port Step 2 –...
- Page 7 ATLAS 550 E1/PRA (EuroISDN) Switch Emulation Step 1 – Create the Dial Plan User Termination and select Slot/Port ; PRA Signaling is auto-configured Step 2 – Assign the phone number(s) for the PRA circuit in the "Incoming Number Accept" list Step 3 –...
- Page 8 ATLAS 550 ISDN BRI S/T (EuroISDN) Switch Emulation Step 1 – Create the Dial Plan User Termination for the BRI circuit and select Slot/Port Step 2 – Assign the phone numbers for the BRI circuit in the “Incoming Number Accept” list Step 3 –...
-
Page 9: Configuration Options
Same as CCNP bundle without the T1/PRI Network Interface Module and Octal Analog FXS Module. International Bundles CCNP International CCNA International: Same as CCNP bundle without the E1/PRA Network Interface Module and Octal Analog FXS Module. ® Cisco Academy ATLAS 550 Configuration Guide •... - Page 10 At SIGMAnet, we serve as the exclusive ADTRAN supplier to all of Cisco’s Networking Academies worldwide, providing: • Professional and Responsive Salespeople • Pre-Negotiated Volume Pricing Structure • Bundle Stocking • Free Shipping within the U.S. ATLAS 550 ATLAS 550 E1/PRA...
- Page 11 Copyright © 2003 ADTRAN, Inc. June 2003 All rights reserved. ADTRAN and ATLAS are registered trademarks of ADTRAN, Inc. All other trademarks and registered trademarks are the property of their respective owners. EN257C...
