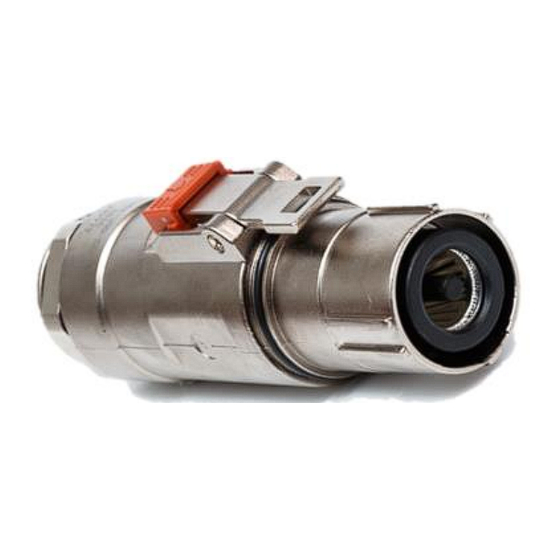

- Page 1 Manual P/N：8P1249 Rev.04 20240312 PowerLok G1 单芯接头通用安装说明 PowerLok G1 One POS Plug General Installation Instructions www.amphenol-gec.com...
- Page 2 PowerLok G1 单芯接头通用安装说明 PowerLok G1 One POS Plug General Installation Instructions 安装步骤 Installation Steps 1 选择与插座键位对应的插头线束组件，注意插头锁扣颜色与插座防触盖颜色对应如下图。 1 Select the plug harness assembly corresponding to the receptacle, and note that the color of the plug press latch corresponds to the color of the receptacle touch proof as shown below. 接头键位...
- Page 3 PowerLok G1 单芯接头通用安装说明 PowerLok G1 One POS Plug General Installation Instructions 3 确认锁扣完全扣入，插头插座之间隙不超0.5mm, 回拉无松动。 3 Confirm that the press latch on plug is fully engaged in the lock tab, and gap less than 0.5mm; try to pull back, confirm no loose or wobble. ≤...
- Page 4 PowerLok G1 单芯接头通用安装说明 PowerLok G1 One POS Plug General Installation Instructions 插头线束固定 Plug harness secure 1 线束的最小弯曲半径R≥线材外径*10。 1 The minimum bending radius of the wire harness R≥ the outer diameter of the cabled *10. 2 在接头尾部100mm处需将线材固定。 2 Secure the cable 100mm from the end of the connector. Fixed position 扎带位置...
- Page 5 PowerLok G1 单芯接头通用安装说明 PowerLok G1 One POS Plug General Installation Instructions 版本记录 Revision history 序号 版本 变更内容 日期 Number Content of change Date 转格式发行 2024/03/12 Release as new format 20240312_ Rev.04 Document No: 8P1249 04/04...
- Page 6 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
