User Guide
1 Connect the main unit RJ-45 plug into the female RJ-45
connector at the end of the wiring closet cable/coupler
cable (Universal wall plate) or align it with the right most RJ-
45 connector (Manufacturer-specific wall plate).
2 Align the Screw Tab (Item #2) with the opening in the main
unit.
3 Align the Alignment Tabs on the main unit with the slots
(Item #3) in the Wall plate.
4 Snap the Main unit into the Wall plate).
2c. Fastening the NJ95

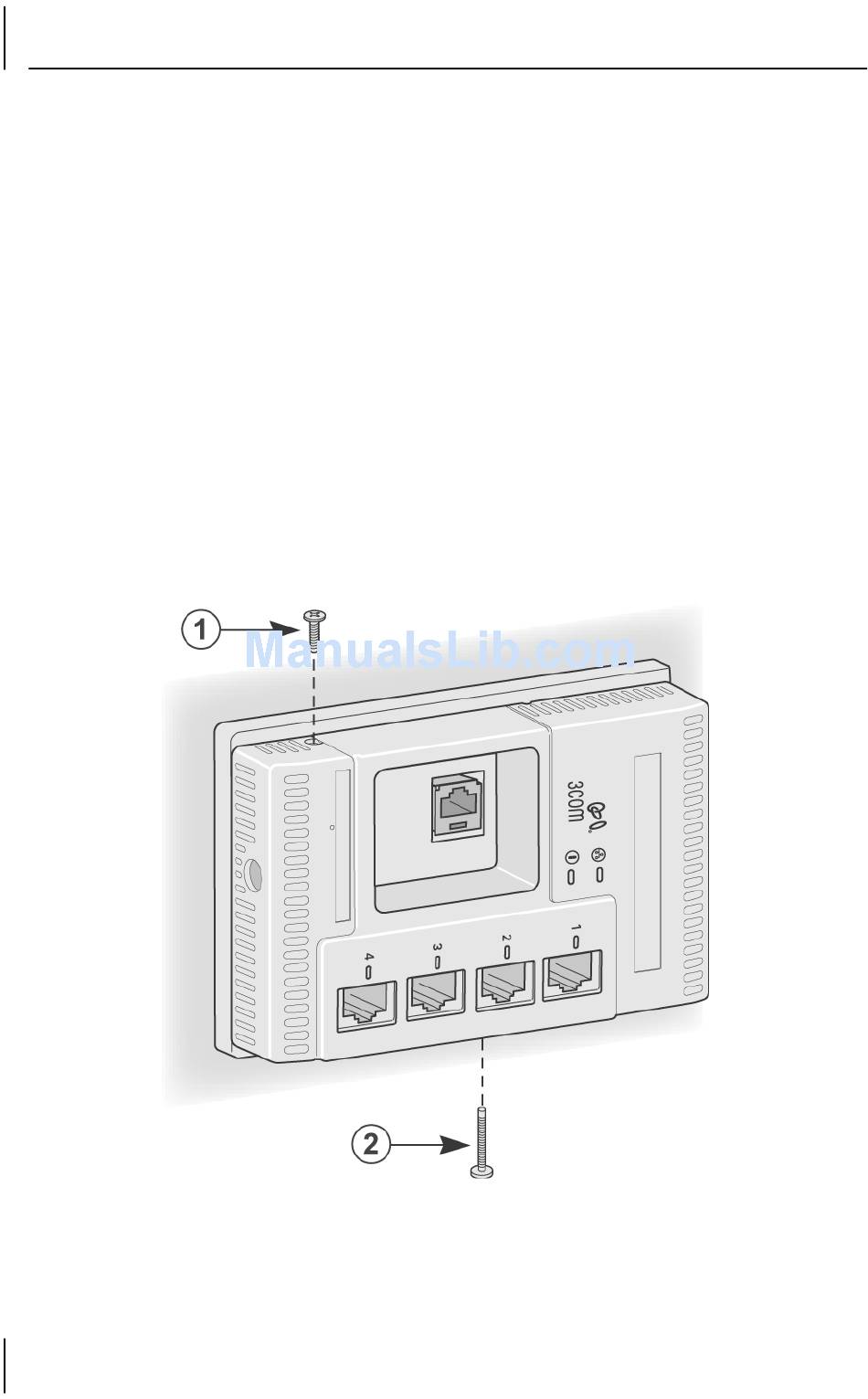

Figure 7: Securing the NJ95 Main unit to the Wall plate
12
