1a. Installing the Universal wall plate

1 Thread the RJ-45 Connector attached to the wiring closet

cable through the opening in the Universal wall plate (Fig.

3a).

If necessary connect the coupler cable (Male RJ-45) to the

female RJ-45 connector attached to the Network cable and

thread it through the Universal wall plate (Fig. 3b).

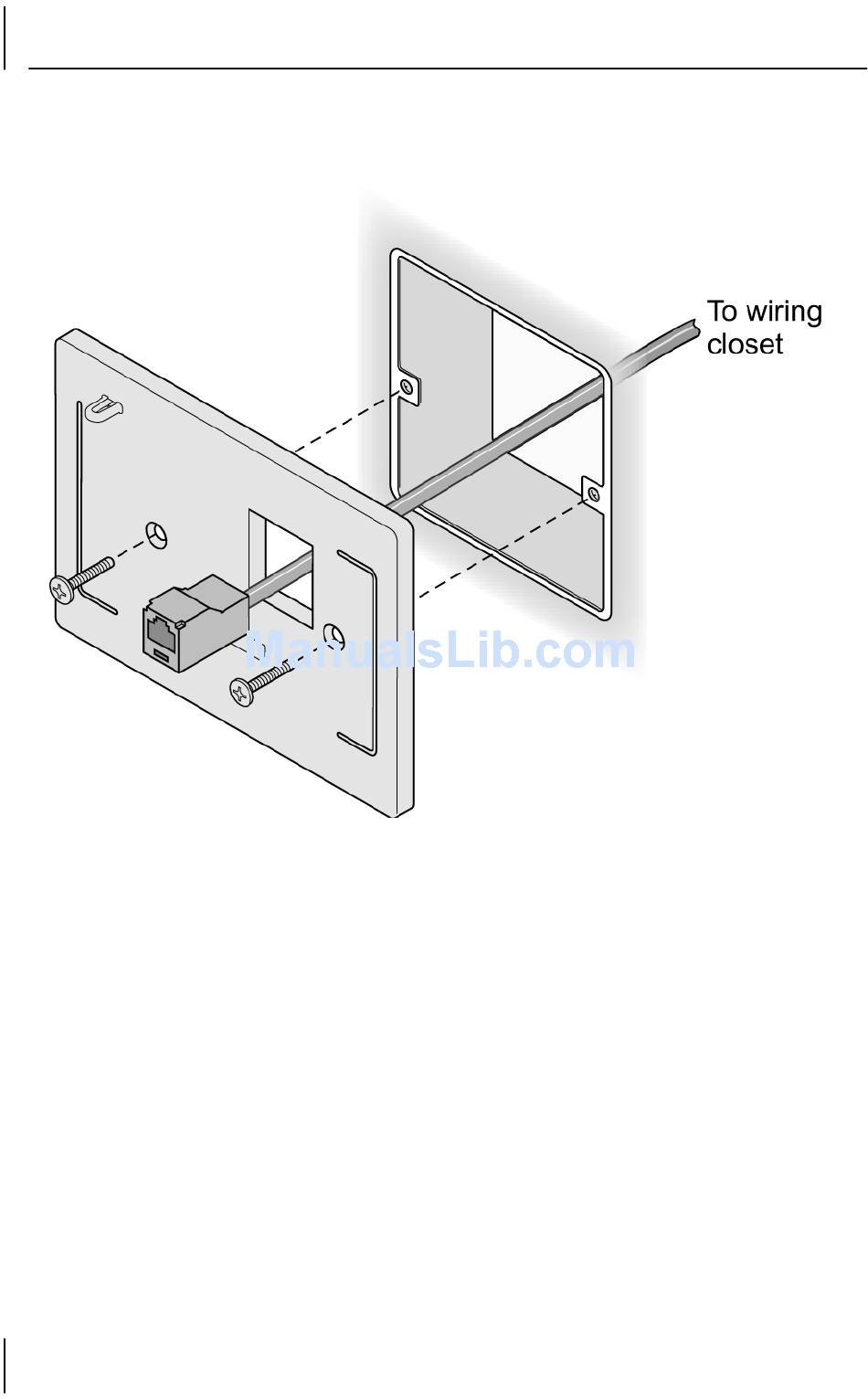

Figure 3a: Installing the Universal Wall Plate
