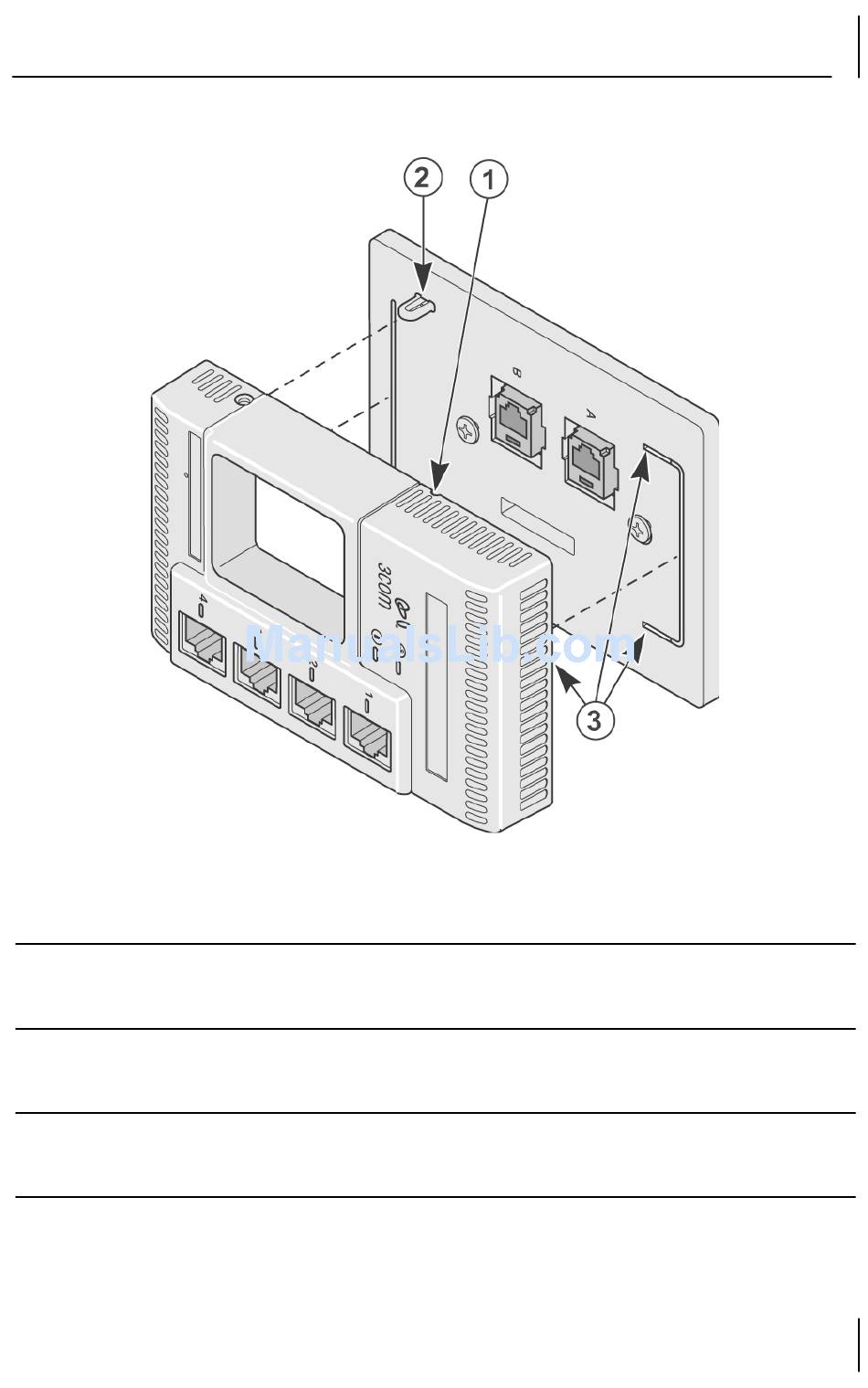

Figure 6b: Mounting the NJ95 to the Manufacturer-specific Wall plate
1 Groove for RJ-45
Jack release
2 Screw Tab
3 Slots for Alignment
Tabs
3. Installing the NJ95 Network Jack
Insert a pin through the groove to release the RJ-
45 plug
Used to align and retain the main unit to the wall
plate
Align tabs on main unit to the wall plate slots
11
